Product description:
- The SKF TKBA 10 and TKBA 20 allow pulleys and sprockets to be aligned on the side face.
- The unit magnetically attaches to the inside or outside face of almost any belt pulley or chain sprocket and has no small parts or targets that can get lost.

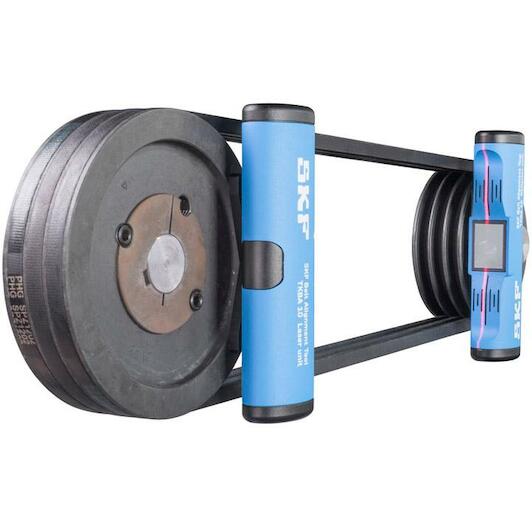

- A laser line is projected from the transmitter unit to the reflector unit mounted on the opposite pulley.

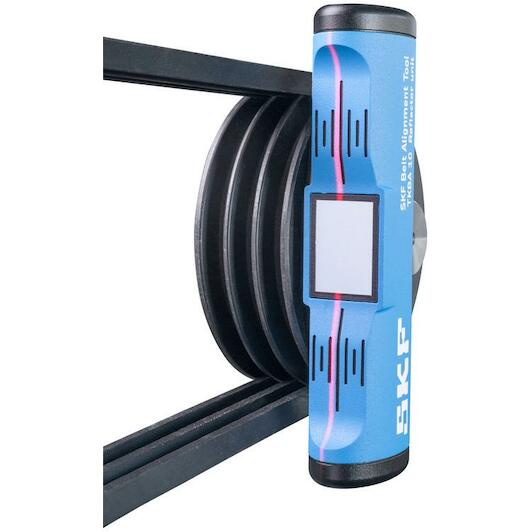

- A reference line on the reflector unit directly indicates the offset and vertical angle misalignment.
- The reflected laser line shown on the transmitter unit shows the horizontal angle misalignment of all three.
- Powerful magnets allow fast and easy attachment
- Facilitates simultaneous adjustment of tension and alignment
- Can be used on almost all machines using V belts, banded belts, ribbed belts and most other belts as well as chain sprockets
- SKF TKBA 10 utilises a red laser and can be used for distances up to 3 m (10 ft)
- SKF TKBA 20 utilises a highly visible green laser and can be used for distances up to 6 m (20 ft). It can even be used outdoors in sunny conditions
- Sturdy aluminium housings help ensure assembly stability and accuracy during the alignment process
Red or green laser:
- TKBA 10 : Utilises a red laser and can be used for distances up to 3 m (10 ft).
- TKBA 20: Utilises a highly visible green laser and can be used for distances up to 6 m (20 ft). It can even be used outdoors in sunny conditions.
