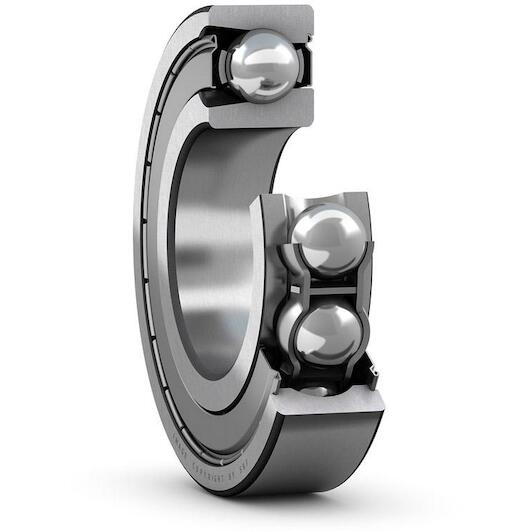

Product description: Deep groove ball bearings are particularly versatile They are simple in design, not removable, suitable for high to very high speeds and are very robust in operation, requiring little maintenance Deep raceways and close contact between raceways and balls make deep groove ball bearings suitable not only for radial loads, but also for axial loads in both directions, even at high speeds
Key features according to our expert
Inner diameter: 40 mm
Width: 23 mm
Number of rows: 1
Seal (bearing): Double-sided sealed
Material (bearing seal): Metal
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 90 mm
Specifications / All features
Brand:
SKF
01011077
EAN:
7316577295989
Supplier number:
SKF 308-2Z

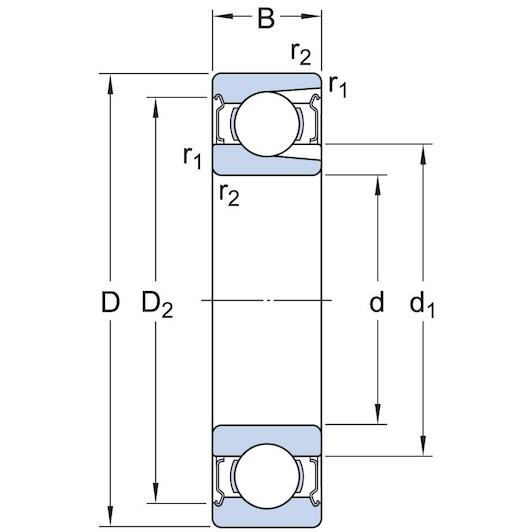

Inner diameter
40 mm
Width
23 mm
Number of rows
1
Seal (bearing)
Double-sided sealed
Material (bearing seal)
Metal
Radial clearance
CN (Normal)
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
90 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
CN
Basic static load rating
36 kN
Material, bearing
Bearing steel
Relubrication feature
Without
Reference speed
14,000 r/min
Lubricant
Grease
Sealing type
Non-contact
Cage
Sheet metal
Locating feature, bearing outer ring
None
Filling slots
With
Coating
Without
Sealing
Shield on both sides
Limiting speed
6,800 r/min
Bore diameter
40 mm
Basic dynamic load rating
45.7 kN
Outside diameter
90 mm
