SKF 51415 M ball roller bearing single acting 75x160 mm

Supplier number: SKF 51415 M | EAN 7316572052082
This product has been discontinued.



Product information

Key features according to our expert

  • Inner diameter: 75 mm
  • Width: 65 mm
  • Number of rows: 1
  • Material (cage): Brass (solid)
  • Outer diameter: 160 mm

Product description:

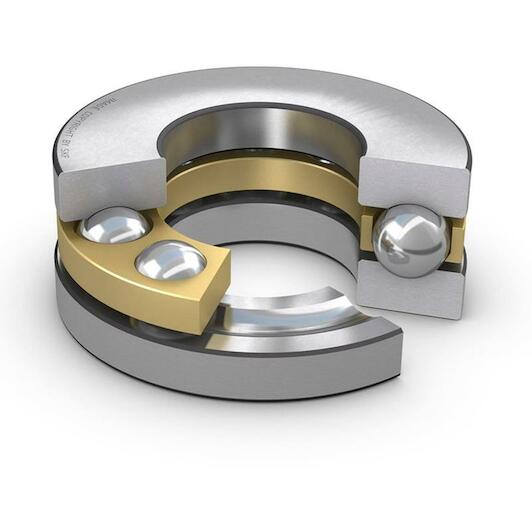

  • Single-sided ball thrust bearings consist of a shaft ring, a housing ring and a cage with balls
  • The bearings are removable so that the ring and ball cage can easily be fitted separately
  • Single-sided spherical roller bearings, as their name suggests , can take axial loads in one direction and thus trap a shaft in one direction
  • They may not be subjected to radial loads

Documents

All Features

Inner diameter
75 mm
Width
65 mm
Number of rows
1
Material (cage)
Brass (solid)
Outer diameter
160 mm
Bore diameter
75 mm
Cage
Machined metal
Housing washer type
Flat
Reference speed
1,300 r/min
Basic static load rating
610 kN
Tolerance class
Normal
Limiting speed
1,800 r/min
Axial load capability
Single-direction
Coating
Without
Basic dynamic load rating
251 kN
Thickness
65 mm
Outer diameter
160 mm
Material, bearing
Bearing steel
  • Brand SKF
  • EAN 7316572052082
  • Supplier number SKF 51415 M
