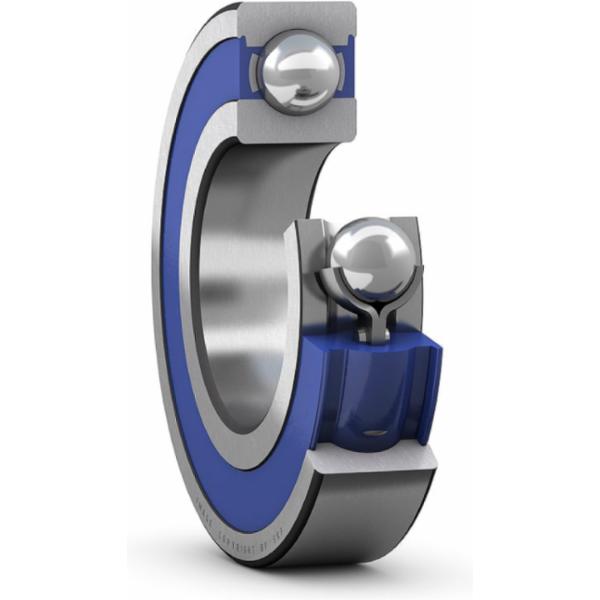

Product description: Deep groove ball bearings are particularly versatile They are simple in design, not removable, suitable for high to very high speeds and are very robust in operation, requiring little maintenance Deep raceways and close contact between raceways and balls make deep groove ball bearings suitable not only for radial loads, but also for axial loads in both directions, even at high speeds
Key features according to our expert
Inner diameter: 25 mm
Width: 12 mm
Number of rows: 1
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 47 mm
Specifications / All features
Brand:
SKF
01012870
EAN:
7316570624441
Supplier number:
SKF 6005/W64
Inner diameter
25 mm
Width
12 mm
Number of rows
1
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
CN (Normal)
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
47 mm
Basic static load rating
6.55 kN
Tolerance class
Normal
Maximum operating temperature
85 °C
Radial internal clearance
CN
Material, bearing
Bearing steel
Matched arrangement
No
Relubrication feature
Without
Skf performance class
SKF Explorer
Lubricant
Solid Oil
Cage
Sheet metal
Locating feature, bearing outer ring
None
Filling slots
Without
Basic dynamic load rating
11.9 kN
Sealing
Without
Note
Limiting speed at 20 °C (70 °F) ambient temperature
Limiting speed
8,300 r/min
Bore diameter
25 mm
Coating
Without
Outside diameter
47 mm
