skf_al_bc2_0153
SKF

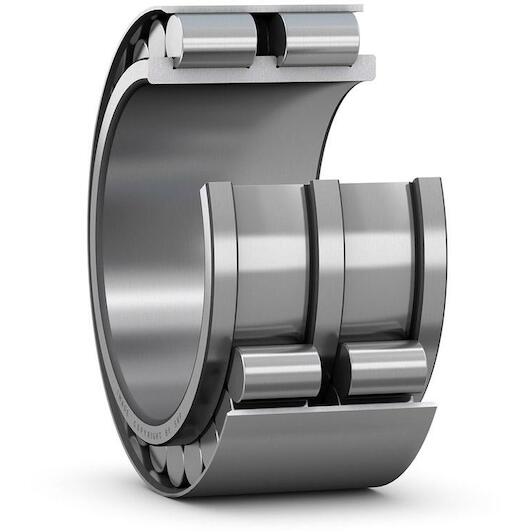

SKF AL-BC2-0153 cylindrical roller bearing 52.09 mm

This article is not available

Product description:

  • Cylindrical roller bearings have a high radial load carrying capacity and are capable of rotating at high speeds
  • The rollers are guided by fixed track collars on one of the bearing rings
  • The bearing ring with the track collars and roller set can be slid off from the other ring
  • This makes mounting easier (especially if the bearing is to be mounted both on the shaft and on the bore with a fixed fit)
  • A cylindrical roller bearing can withstand (limited) axial displacement
  • Full complement cylindrical roller bearings: contain as many rollers as possible
  • Double-row cylindrical roller bearing: consist of two rows of cylinders
Key features according to our expert
  • Inner diameter: 35 mm
  • Width: 26,5 mm
  • Material (cage): Not applicable
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 52,09 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571496054
  • Supplier number: SKF AL-BC2-0153
Inner diameter
35 mm
Width
26,5 mm
Material (cage)
Not applicable
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
52,09 mm
Bearing part
Bearing without outer ring
Number of flanges, inner ring
3
Cage
Without
Lubricant
None
Relubrication feature
Without
Loose flange
None
Tolerance class
Normal
Sealing
Without
Coating
Without
Outside diameter
52.09 mm
