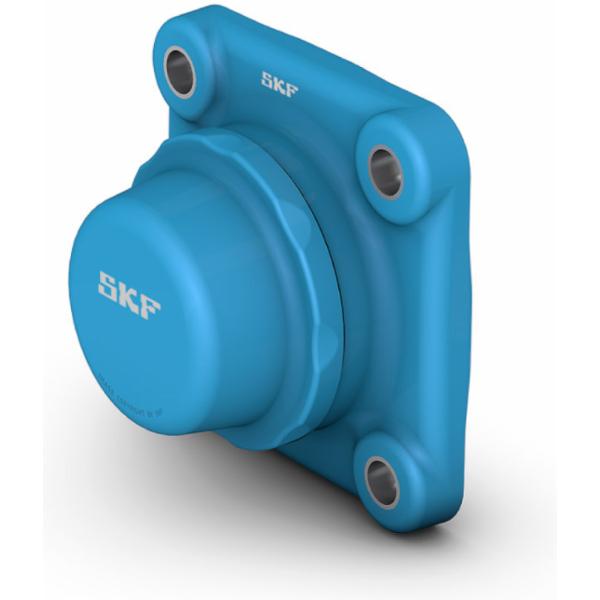

SKF F4BC 104-CPSS-DFH Y ball bearing unit with flange square, d 31.75 mm, A 36 mm, J 92 mm

Show more features

Shaft diameter

31,75 mm

Split

No

Material (bearing housing)

Composite

Material (bearing)

Stainless steel

High temperature

No

Bore type

Cylindrical

Shape (bearing housing)

Square

Lubricant

Grease

Material, housing

Composite for the SKF Food Line

Basic static load rating

15.3 kN

Number of bolt holes for fasteners

4

Material, bearing

Stainless steel

Rubber seating ring

Without

Sealing type

Contact, gutter

Sealing, bearing

Seal on both sides and flinger on one side

Retaining feature, inner ring

Set screws

Flanged housing type

Square

Bearing width, total

34.9 mm

Limiting speed

500 r/min

Centre distance between bolt holes

92 mm

Grease fitting

Without

Sealing, unit

End cover and back seal

Fastening bolt hole type

Plain

Relubrication hole

Without

Housing overall width

36 mm

Basic dynamic load rating

21.6 kN

Coating

Without

Housing type

Flanged
