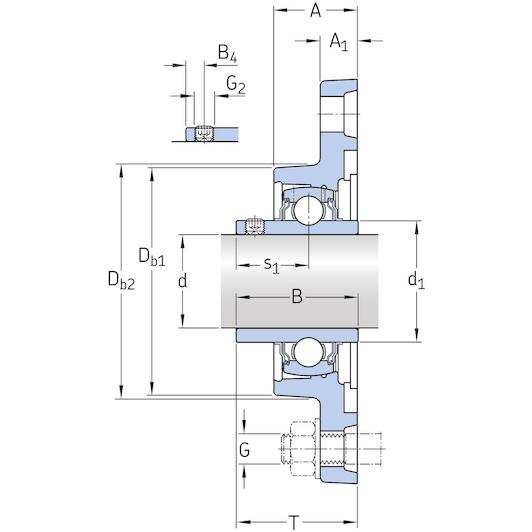

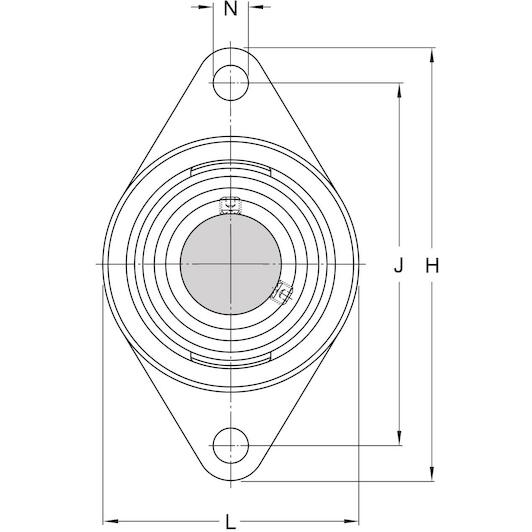

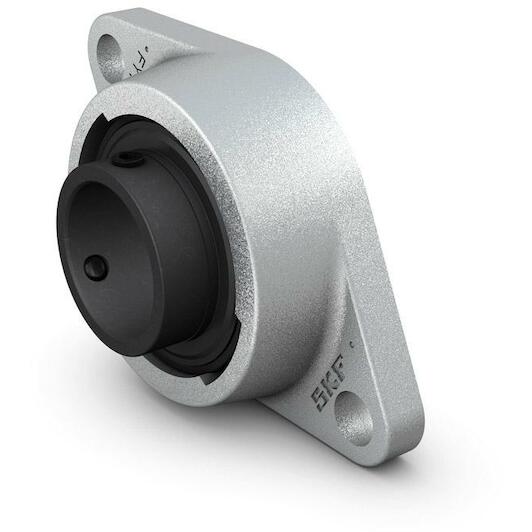

SKF FYTB 45 TF/VA201 Y ball bearing unit with flange oval, d 45 mm, A 39 mm, J 148.5 mm

Show more features

Shaft diameter

45 mm

Split

No

Material (bearing housing)

Stainless steel

Material (bearing)

Steel

High temperature

Yes

Bore type

Cylindrical

Shape (bearing housing)

Oval

Number of bolt holes for fasteners

2

Maximum operating temperature

250 °C

Bearing width, total

49.2 mm

Material, housing

Cast iron

Basic static load rating

21.6 kN

Sealing, bearing

Shield and flinger on both sides

Lubricant

Solid lubricant

Rubber seating ring

Without

Sealing type

Non-contact

Centre distance between bolt holes

148.5 mm

Material, bearing

High temperature steel

Flanged housing type

Oval

Retaining feature, inner ring

Set screws

Limiting speed

60 r/min

Grease fitting

Without

Sealing, unit

Without

Width, total

54.2 mm

Fastening bolt hole type

Plain

Relubrication hole

Without

Housing overall width

39 mm

Basic dynamic load rating

33.2 kN

Coating

Zinc-coated housing and manganese phosphate coated bearing

Housing type

Flanged
