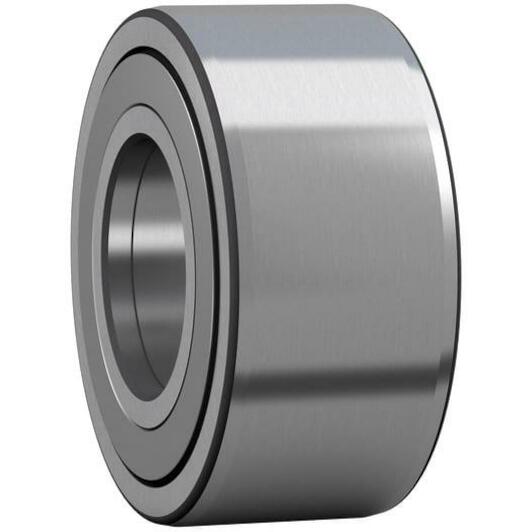

SKF NATV 12 PPXA support roller with inner ring and flange seal (Yoke-type idler) 32 x 12 x 15 mm

Show more features

Inner diameter

12 mm

Outer diameter

32 mm

Width

15 mm

Functional outside diameter

32 mm

Material, bearing

Bearing steel

Cage

Without

Sealing type

Contact

Width, outer ring

14 mm

Lubricant

Grease

Relubrication feature

With

Basic static load rating

15.3 kN

Radial internal clearance

Between C2 and CN

Tolerance class

Other

Bearing part

Complete track roller

Axial guidance of outer ring

Yes

Number of flanges, outer ring

2

Sealing

Seal on both sides

Width, total

15 mm

Outer ring profile

Cylindrical

Limiting speed

3,000 r/min

Bore diameter

12 mm

Number of rows

1

Basic dynamic load rating

9.35 kN

Coating

Without

Rolling elements

Needle rollers
