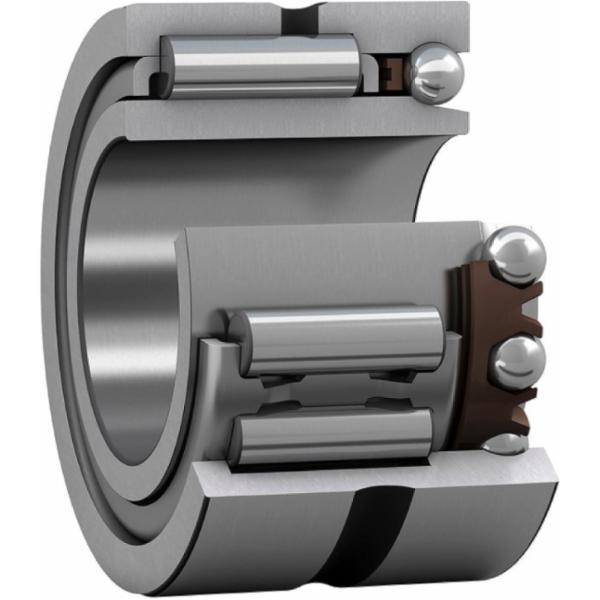

SKF NKIA 5909 needle roller/angle contact ball bearing 45 x 68 x 30 mm

Show more features

Inner diameter

45 mm

Outer diameter

68 mm

Width

30 mm

Thrust part

With cage

Reference speed

7,500 r/min

Radial internal clearance

CN

Tolerance class

Normal

Bearing part

Complete bearing

Rolling element (thrust part)

Balls

Lubricant (thrust part)

None

Limiting speed

8,500 r/min

Bore diameter

45 mm

Axial load capability

Single-direction

Radial part

With cage

Coating

Without

Outside diameter

68 mm

Material, bearing

Bearing steel
