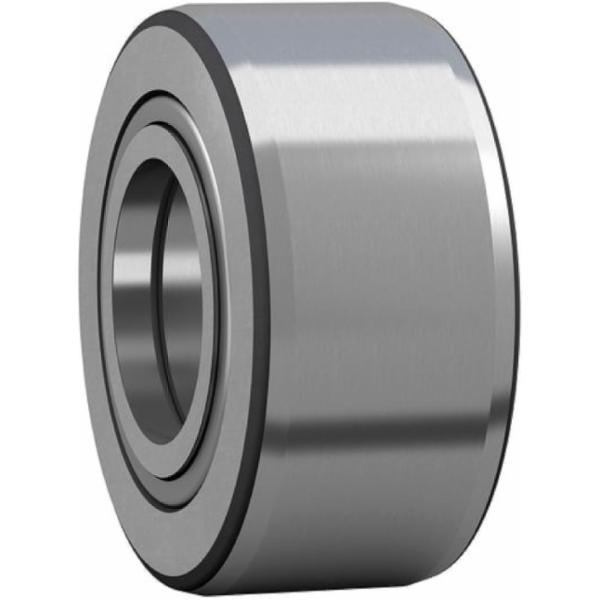

SKF PWTR 30.2RS support roller with inner ring and flange seal (Yoke type track roller) 62 x 30 x 29 mm

Show more features

Inner diameter

30 mm

Width

29 mm

Outer diameter

62 mm

Axial guidance of outer ring

Yes

Functional outside diameter

62 mm

Material, bearing

Bearing steel

Cage

Without

Sealing type

Contact

Width, outer ring

28 mm

Lubricant

Grease

Relubrication feature

With

Basic static load rating

32.5 kN

Radial internal clearance

Between C2 and CN

Tolerance class

Other

Bearing part

Complete track roller

Number of flanges, outer ring

3

Sealing

Seal on both sides

Width, total

29 mm

Outer ring profile

Crowned

Limiting speed

2,600 r/min

Bore diameter

30 mm

Number of rows

2

Basic dynamic load rating

31.9 kN

Coating

Without

Rolling elements

Cylindrical rollers
