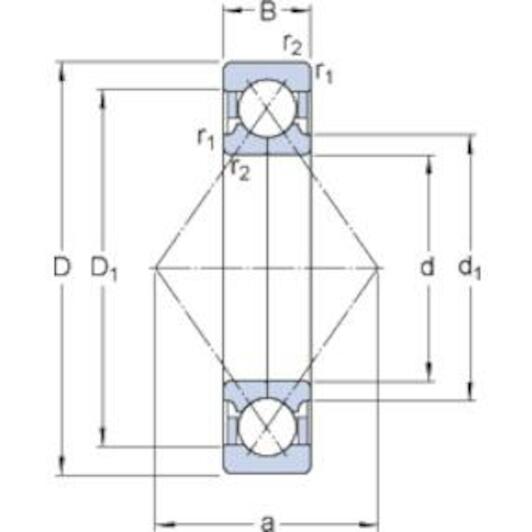

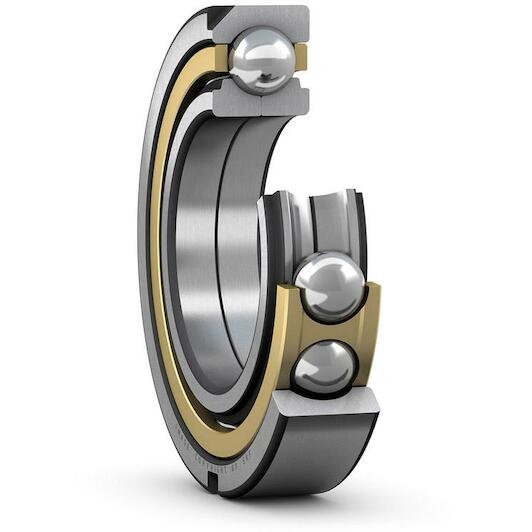

SKF QJ 310 PHAS/C3 four-point contact ball bearing with 35° contact angle 50x110x27 mm

Show more features

Inner diameter

50 mm

Width

27 mm

Axial clearance

C3

Material (cage)

Plastic

Outer diameter

110 mm

Basic static load rating

100 kN

Locating feature, bearing outer ring

None

Ring type

Two-piece inner ring and one-piece outer ring

Contact type

Four-point contact

Skf performance class

SKF Explorer

Matched arrangement

No

Relubrication feature

Without

Axial internal clearance

C3

Lubricant

None

Cage

Non-metallic

Material, bearing

Bearing steel

Sealing

Without

Bore diameter

50 mm

Contact angle

35.000000000087 °

Limiting speed

11,000 r/min

Number of rows

1

Basic dynamic load rating

118 kN

Coating

Without

Outside diameter

110 mm

Universal matching bearing

No
