skf-qj-326-n2ma-c3-qj-326-n2ma-c3
SKF

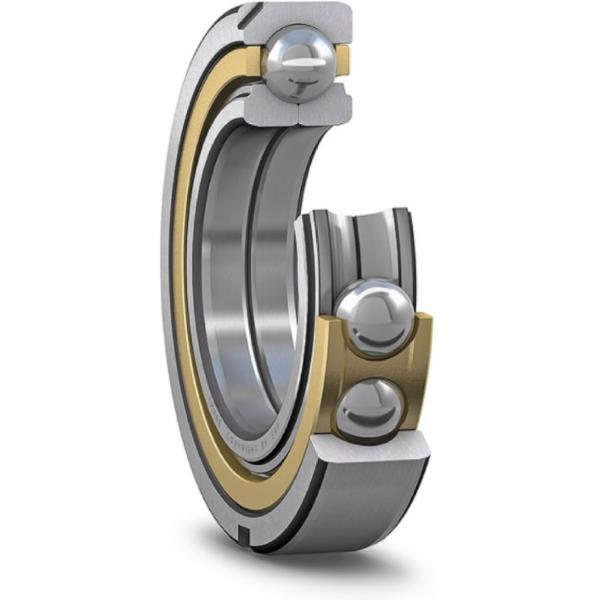

SKF QJ 326 N2MA/C3 four-point contact ball bearing with 35° contact angle 130x280x58 mm

This article is not available

Product description:

  • Angular contact bearing, four-point contact ball bearing
Key features according to our expert
  • Inner diameter: 130 mm
  • Width: 58 mm
  • Axial clearance: C3
  • Material (cage): Brass (solid)
  • Outer diameter: 280 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571730776
  • Supplier number: SKF QJ 326 N2MA/C3
Inner diameter
130 mm
Width
58 mm
Axial clearance
C3
Material (cage)
Brass (solid)
Outer diameter
280 mm
Sealing
Without
Material, bearing
Bearing steel
Cage
Machined metal
Lubricant
None
Skf performance class
SKF Explorer
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
610 kN
Contact type
Four-point contact
Ring type
Two-piece inner ring and one-piece outer ring
Locating feature, bearing outer ring
Locating slot
Limiting speed
4,000 r/min
Axial internal clearance
C3
Contact angle
35.000000000087 °
Bore diameter
130 mm
Number of rows
1
Basic dynamic load rating
455 kN
Coating
Without
Outside diameter
280 mm
Universal matching bearing
No
