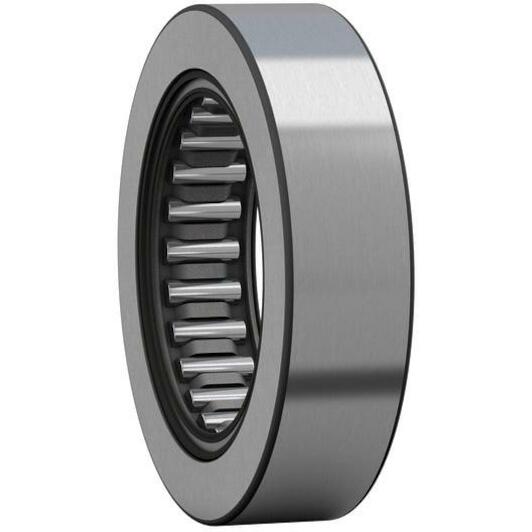

SKF RNA 22/8.2RS support roller (Yoke-type idler) 24 x 12 x 11.8 mm

Show more features

Inner diameter

12 mm

Outer diameter

24 mm

Width

11,8 mm

Functional outside diameter

24 mm

Material, bearing

Bearing steel

Cage

With

Sealing type

Contact

Width, outer ring

11.8 mm

Lubricant

Grease

Relubrication feature

Without

Basic static load rating

4.55 kN

Radial internal clearance

Not applicable

Tolerance class

Other

Bearing part

Track roller without inner ring

Axial guidance of outer ring

Yes

Number of flanges, outer ring

2

Sealing

Seal on both sides

Width, total

11.8 mm

Outer ring profile

Crowned

Limiting speed

6,700 r/min

Bore diameter

12 mm

Number of rows

1

Basic dynamic load rating

4.68 kN

Coating

Without

Rolling elements

Needle rollers
