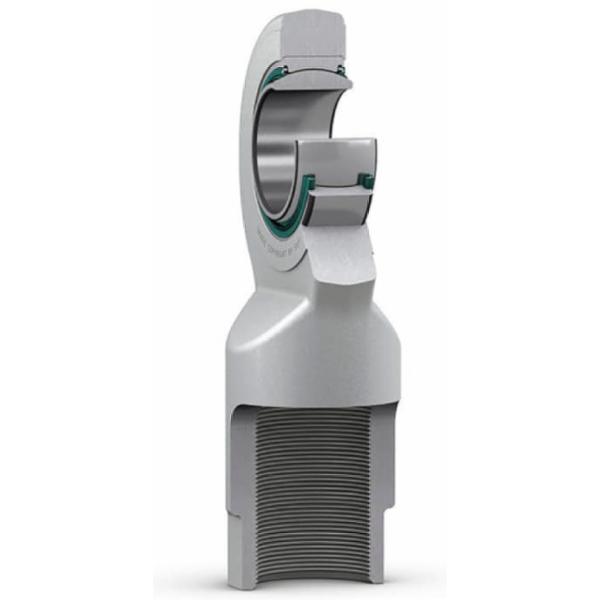

SKF SI 60 TXE-2LS rod head with female thread 60 mm, M 60x4

Show more features

Inner diameter

60 mm

Connection type

Inner thread

Thread type

Metric fine

Seal (bearing)

Double-sided sealed

Maintenance free

Yes

Connection size

M60 x 4

Material, housing

Steel

Thread designation

M 60x4

Attachment feature, rod end shank

Right-hand female thread

Material, outer ring

Bearing steel

Centre height, housing (from end of shank)

225 mm

Sealing type

Triple-lip

Outside diameter, housing eye

137 mm

Bore diameter, bearing inner ring

60 mm

Basic static load rating

400 kN

Sealing

Seal on both sides

Maintenance

Maintenance-free

Material, inner ring

Bearing steel

Width, bearing inner ring

44 mm

Sliding contact surface combination

Steel/PTFE fabric

Width, housing eye

39 mm

Basic dynamic load rating

695 kN

Housing length, total

296 mm
