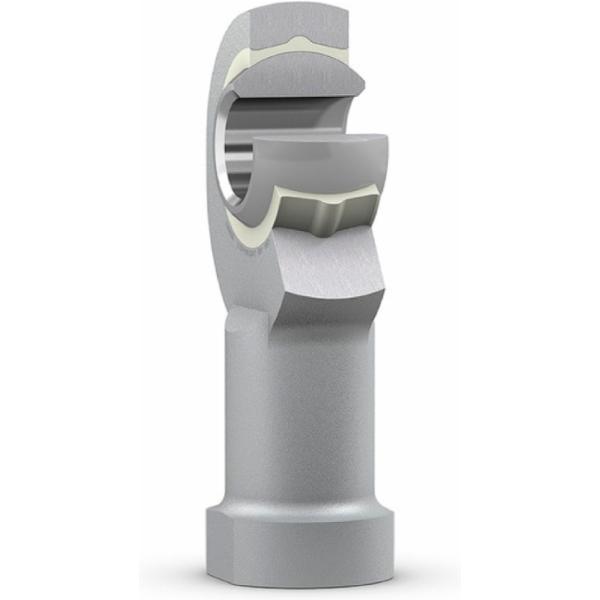

SKF SIKB 18 F Rod head with female thread 18 mm, M 18x1.5

Show more features

Inner diameter

18 mm

Connection type

Inner thread

Thread type

Metric fine

Seal (bearing)

Without seal

Maintenance free

Yes

Connection size

M18 x 1,5

Maintenance

Maintenance-free

Thread designation

M 18x1.5

Attachment feature, rod end shank

Right-hand female thread

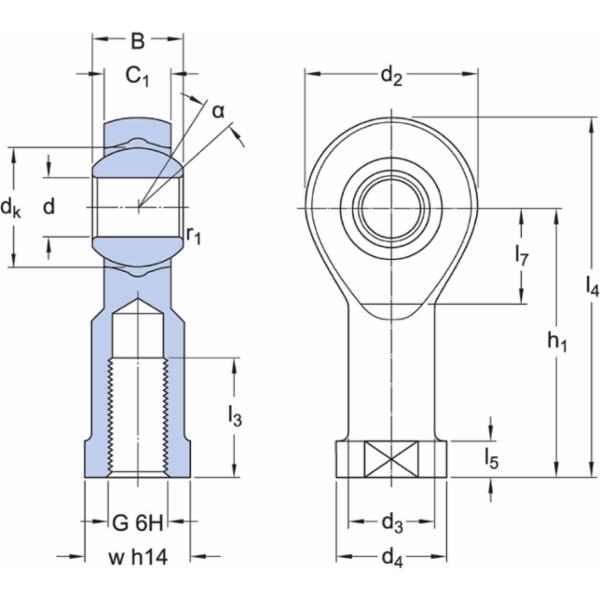

Centre height, housing (from end of shank)

71 mm

Outside diameter, housing eye

47 mm

Bore diameter, bearing inner ring

18 mm

Basic static load rating

41.5 kN

Material, housing

Steel

Sliding contact surface combination

Steel/PTFE FRP

Material, inner ring

Bearing steel

Width, bearing inner ring

23 mm

Sealing

Without

Width, housing eye

17.5 mm

Basic dynamic load rating

26 kN

Housing length, total

96 mm
