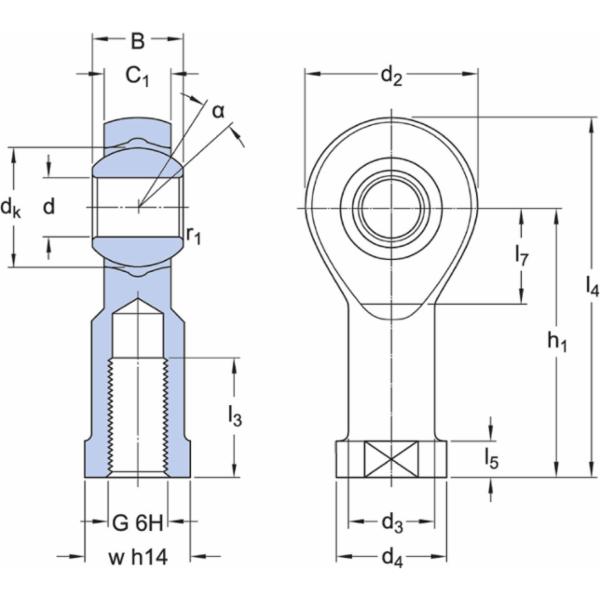

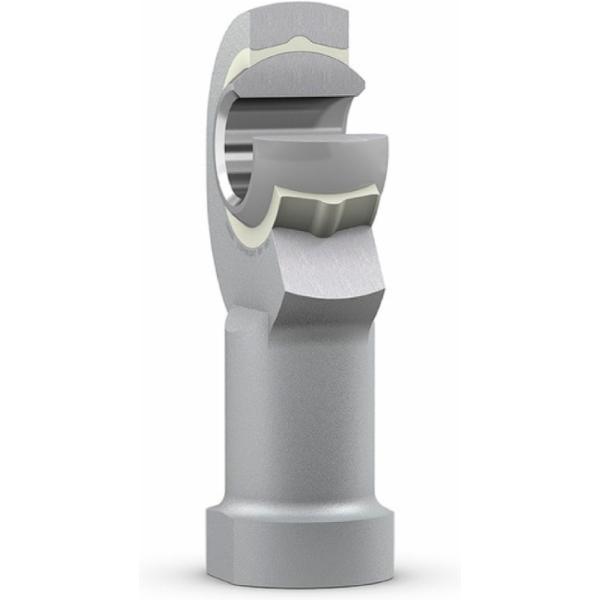

SKF SIKB 22 F Rod head with female thread 22 mm, M 22x1.5

Show more features

Inner diameter

22 mm

Connection type

Inner thread

Thread type

Metric fine

Seal (bearing)

Without seal

Maintenance free

Yes

Connection size

M22 x 1,5

Maintenance

Maintenance-free

Thread designation

M 22x1.5

Attachment feature, rod end shank

Right-hand female thread

Centre height, housing (from end of shank)

84 mm

Outside diameter, housing eye

55 mm

Bore diameter, bearing inner ring

22 mm

Basic static load rating

61 kN

Material, housing

Steel

Sliding contact surface combination

Steel/PTFE FRP

Material, inner ring

Bearing steel

Width, bearing inner ring

28 mm

Sealing

Without

Width, housing eye

21 mm

Basic dynamic load rating

38 kN

Housing length, total

114 mm
