What type of chain is the Renold A&S AR06B2X5M?

This is a duplex roller chain adhering to the BS and ISO standard type 06B-2 with a 3/8" pitch (9.525 mm).

What is the breaking strength of this roller chain?

The minimum breaking strength of this duplex chain is 16900 N.

What are the key dimensions of the rollers and pins?

The roller diameter is 6.35 mm, the inner width is 5.72 mm, and the pin length is 23 mm with a pin diameter of 3.28 mm.

What length is supplied with this product?

This model is supplied as a 5 m length.

A&S AR06B2X5M duplex chain 3/8" (06b-2)

Supplier number: A&S AR06B2X5M | EAN 4042279003753

Recommended Retail Price €129.50

63.60 tax incl.

€52.56 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

meter

The minimum purchase order quantity for the product is 5.

Ordered before 20:00 - delivered as of 09/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Reliable power transmission for demanding drives

Practical benefits

High breaking load capacity: With a breaking strength of 16900 N, you transfer high mechanical forces safely without risking unexpected drive chain failure.
Strong duplex 06B-2 design: The double-strand configuration allows you to handle higher torque demands while maintaining balanced load distribution across the chain.
Smooth and precise running: The exact 9,525 mm pitch ensures you achieve seamless sprocket engagement and reduced component wear during continuous operations.

In a nutshell

The right choise for

With the A&s AR06B2X5m duplex roller chain, you keep heavy industrial drives and conveyor mechanisms running reliably. The double-strand 06B-2 design distributes mechanical loads evenly across two rows of rollers, providing a robust breaking strength of 16900 N. Thanks to the accurate 9.525 mm (3/8") pitch, the chain engages smoothly with your sprockets, reducing vibration and component wear. Supplied in a practical 5 m box with a weight of 0.78 kg/m, it allows you to replace worn or elongated chains quickly and maintain maximum productivity.

Product information FAQ

€63.60

In stock - tax incl.

Key features according to our expert

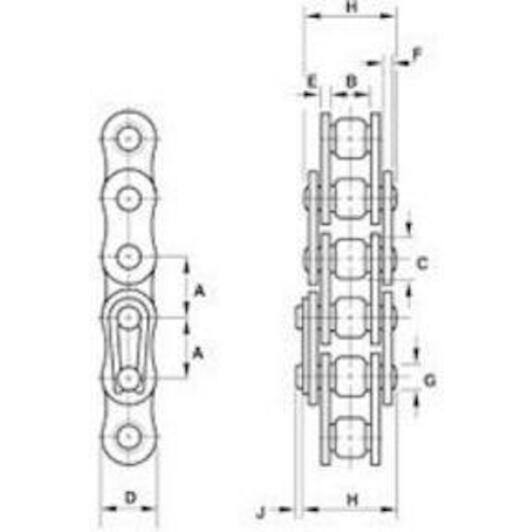

Pitch: 3/8 inch; 9,525 mm
Weight (kg/m): 0,78 kg/m
Product line: Renold A&S
Type (ISO/ANSI): 06B-2
Height: 1,3
Inside width: 5,72 mm
Version (chain): Duplex
Breaking strength: 16900 N
Length (pin): 23 mm
Diameter (pin): 3,28 mm
Thickness (outer plate): 1,04 mm
Thickness (inner plate): 1,29 mm
Plate height: 8,2 mm
Diameter (roller): 6,35 mm

Product description:

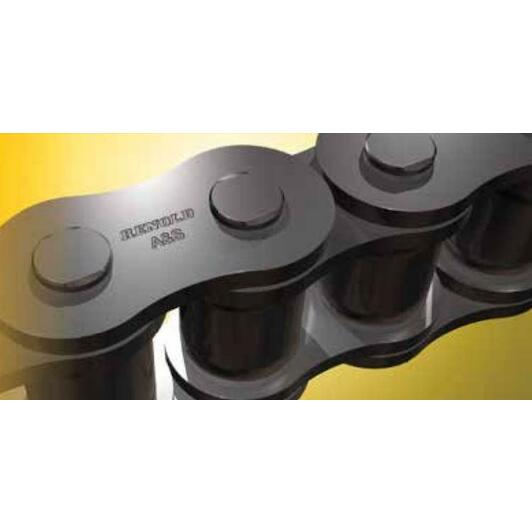

The Renold A&S roller chain has long been known for its high quality, affordability, reliability and performance.
The chain has gained a strong reputation for its excellent wear resistance, high fatigue resistance and durability.
These factors have contributed to Renold A&S becoming the most widely used chain brand in Europe.
The Renold A&S chain is available with European (BS) and ANSI specifications and with a full range of standard M, K and extended bearing pin attachments.
The chain can even be supplied with a lubricant based on the customer's specific requirements.
Available in sizes with pitch ranging from 4 mm to 2.5 inches
Solid extruded bushing
Solid extruded roller
Plates with wider blades
Hardened and glass bead blasted blades
Comprehensive European (BS) and ANSI range
Wide range of fasteners available
Lubricant of choice to meet customer requirements

All Features

Pitch: 3/8 inch; 9,525 mm
Weight (kg/m): 0,78 kg/m
Product line: Renold A&S
Type (iso/ansi): 06B-2
Height: 1,3
Inside width: 5,72 mm
Version (chain): Duplex
Breaking strength: 16900 N
Length (pin): 23 mm
Diameter (pin): 3,28 mm
Thickness (outer plate): 1,04 mm
Thickness (inner plate): 1,29 mm
Plate height: 8,2 mm
Diameter (roller): 6,35 mm

Brand A&S
03010012
EAN 4042279003753
Supplier number A&S AR06B2X5M

Frequently asked questions about this product

Answered by specialists

What type of chain is the Renold A&S AR06B2X5M?: This is a duplex roller chain adhering to the BS and ISO standard type 06B-2 with a 3/8" pitch (9.525 mm).
What is the breaking strength of this roller chain?: The minimum breaking strength of this duplex chain is 16900 N.
What are the key dimensions of the rollers and pins?: The roller diameter is 6.35 mm, the inner width is 5.72 mm, and the pin length is 23 mm with a pin diameter of 3.28 mm.
What is the weight per meter of this chain?: The weight is 0.78 kg/m.
What length is supplied with this product?: This model is supplied as a 5 m length.
