What is the pitch of this roller chain?

This simplex roller chain has a pitch of 1/2 inch (12.7 mm) in accordance with the European BS/ISO 08B-1 standard.

What is the breaking strength of the Renold A&S 08B-1 chain?

The minimum breaking strength of this drive chain is 17,800 N.

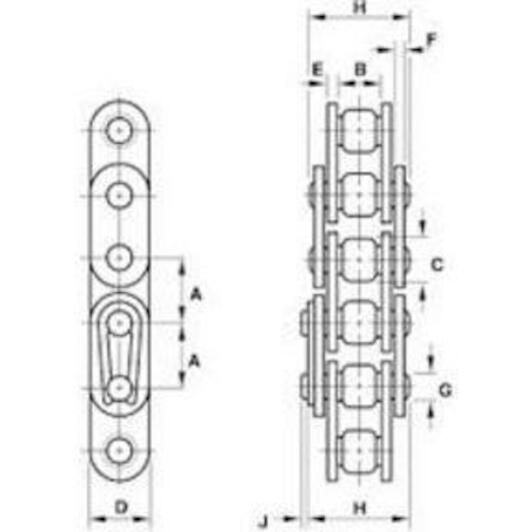

What are the key dimensions of the rollers and plates?

The chain features a roller diameter of 8.51 mm, an inner width of 7.75 mm, and a plate thickness of 1.55 mm.

How much does this roller chain weigh per metre?

The weight of this roller chain is 0.7 kg per metre.

Which configuration does model AR08B1X5M represent?

This is a simplex (single-strand) roller chain from the Renold A&S product line supplied in a 5-metre length.

A&S AR08B1X5M simplex chain 1/2" (08b-1)

Supplier number: A&S AR08B1X5M | EAN 4042279002619

Recommended Retail Price €51.73

25.40 tax incl.

€20.99 excl. VAT (incl. all environmental contributions)

On stock - immediately available

meter

The minimum purchase order quantity for the product is 5.

Ordered before 20:00 - delivered as of 09/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Dependable power transmission for machinery

Practical benefits

High breaking strength rating: With a breaking strength of 17800 N, you reliably transfer heavy mechanical loads across demanding industrial drive systems.
Standardized 08B-1 simplex pitch: Featuring a 12.7 mm pitch and 8.51 mm roller diameter, you can seamlessly fit this simplex roller chain onto compatible sprockets.
Smooth and wear-resistant operation: Robust 1.55 mm link plates provide lasting rigidity to minimize stretch and wear during continuous operation.

In a nutshell

The right choise for

With the Renold A&s AR08B1X5m simplex roller chain, you ensure dependable power transmission across your industrial machinery, conveyor systems, and agricultural equipment. Manufactured to the European 08B-1 standard with a 12.7 mm pitch and 8.51 mm roller diameter, it fits seamlessly onto compatible sprockets. The robust build, featuring 1.55 mm thick link plates and a breaking strength of 17,800 N, transfers heavy mechanical loads without slip or excessive elongation. Supplied in a practical 5-metre length, this chain allows you to replace worn drive chains quickly during routine maintenance or new assemblies.

Product information FAQ

€25.40

In stock - tax incl.

Key features according to our expert

Pitch: 1/2 inch; 12,7 mm
Weight (kg/m): 0,7 kg/m
Product line: Renold A&S
Type (ISO/ANSI): 08B-1
Height: 2
Inside width: 7,75 mm
Version (chain): Simplex
Breaking strength: 17800 N
Length (pin): 16,5 mm
Diameter (pin): 4,45 mm
Thickness (outer plate): 1,55 mm
Thickness (inner plate): 1,55 mm
Plate height: 11,7 mm
Diameter (roller): 8,51 mm

Product description:

The Renold A&S roller chain has long been known for its high quality, affordability, reliability and performance.
The chain has gained a strong reputation for its excellent wear resistance, high fatigue resistance and durability.
These factors have contributed to Renold A&S becoming the most widely used chain brand in Europe.
The Renold A&S chain is available with European (BS) and ANSI specifications and with a full range of standard M, K and extended bearing pin attachments.
The chain can even be supplied with a lubricant based on the customer's specific requirements.
Available in sizes with pitch ranging from 4 mm to 2.5 inches
Solid extruded bushing
Solid extruded roller
Plates with wider blades
Hardened and glass bead blasted blades
Comprehensive European (BS) and ANSI range
Wide range of fasteners available
Lubricant of choice to meet customer requirements

All Features

Pitch: 1/2 inch; 12,7 mm
Weight (kg/m): 0,7 kg/m
Product line: Renold A&S
Type (iso/ansi): 08B-1
Height: 2
Inside width: 7,75 mm
Version (chain): Simplex
Breaking strength: 17800 N
Length (pin): 16,5 mm
Diameter (pin): 4,45 mm
Thickness (outer plate): 1,55 mm
Thickness (inner plate): 1,55 mm
Plate height: 11,7 mm
Diameter (roller): 8,51 mm

Brand A&S
03010003
EAN 4042279002619
Supplier number A&S AR08B1X5M

Frequently asked questions about this product

Answered by specialists

What is the pitch of this roller chain?: This simplex roller chain has a pitch of 1/2 inch (12.7 mm) in accordance with the European BS/ISO 08B-1 standard.
What is the breaking strength of the Renold A&S 08B-1 chain?: The minimum breaking strength of this drive chain is 17,800 N.
What are the key dimensions of the rollers and plates?: The chain features a roller diameter of 8.51 mm, an inner width of 7.75 mm, and a plate thickness of 1.55 mm.
How much does this roller chain weigh per metre?: The weight of this roller chain is 0.7 kg per metre.
Which configuration does model AR08B1X5M represent?: This is a simplex (single-strand) roller chain from the Renold A&S product line supplied in a 5-metre length.
