BAHCO

BAHCO 1949M-22-24 open ring spanner chrome-plated 235 mm 22 mm x 24 mm

65.91 tax incl.
€54.47 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/05/2026
each

Product description:

  • Flare nut wrench double end offset in metric sizes
  • Standards: DIN 3118
  • Material: High performance alloy steel
  • 6 points: 8x9, 10x11, 10x12, 12x13, 12x14
  • 12 points: 14x15 and 14x17 onwards
  • Ring end angle 15º for knuckle clearance or better grip
  • Applications for tube tightening in auto and plumbing environments
  • Special deep head to protect and apply heavy torque on the screw
  • Chrome plated Micro Matt finishing provides high quality surface
Key features according to our expert
  • Ring spanner type: Open ring spanner
  • VDE approved: No
  • Drive profile size 1: 22 mm
  • Surface treatment: Chrome plated, satin finised
  • With safety colour code 1000V: Not applicable
  • Non-sparking: No
  • Length: 235 mm
  • Type of drive profile 2: Twelve-point
  • Drive profile size 2: 24 mm
  • Type of drive profile 1: Twelve-point
Specifications / All features
Ring spanner type
Open ring spanner
Vde approved
No
Drive profile size 1
22 mm
Surface treatment
Chrome plated, satin finised
With safety colour code 1000v
Not applicable
Non-sparking
No
Length
235 mm
Type of drive profile 2
Twelve-point
Drive profile size 2
24 mm
Type of drive profile 1
Twelve-point

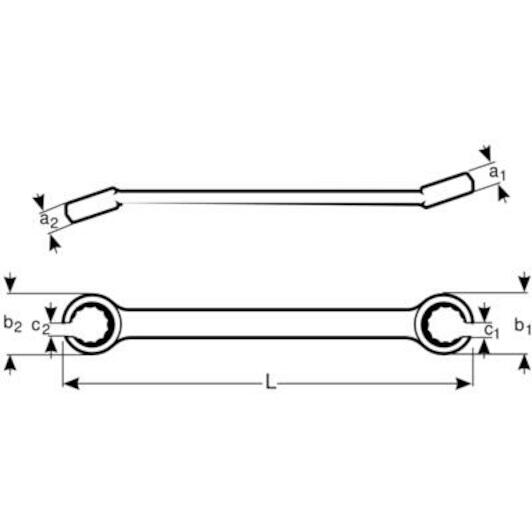

Size opening open end 1 mm
17 mm
Size mm
22x24 mm
Weight g
260 g
Width open end 1 mm
38 mm
Size opening open end 2 mm
18 mm
Total length mm
235 mm
Width open end 2 mm
42 mm
Length mm (l)
235 mm
Thickness open end 1 mm
15,5 mm
Norms
DIN 3118
Thickness open end 2 mm
16,5 mm
