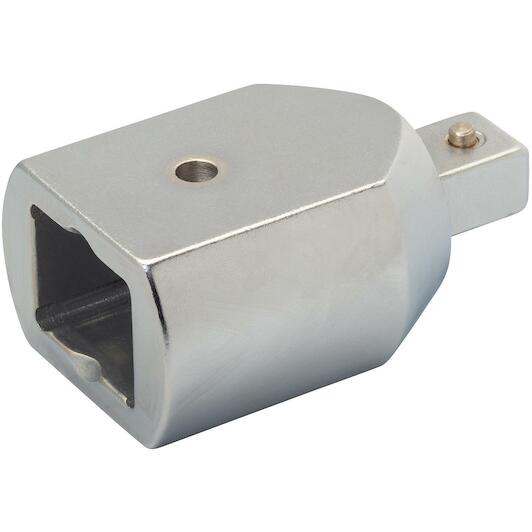

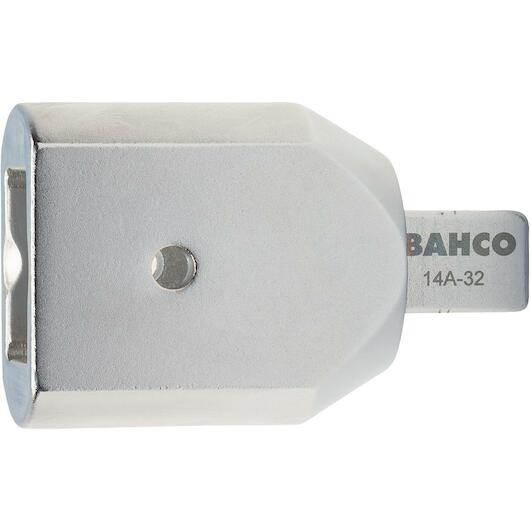

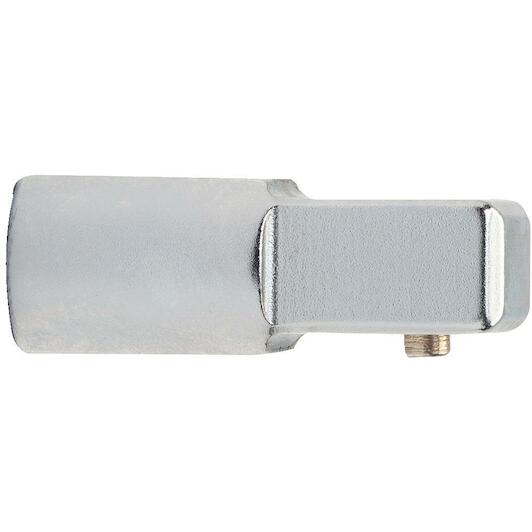

BAHCO 24A-27 insert adapter for torque spanners, 24x32 - 27x36 mm

Supplier number: BAHCO 24A-27 | EAN 7314150368242
Recommended Retail Price €293.38
155.20 tax incl.
€128.26 excl. VAT (incl. all environmental contributions)
On order: delivered from 14/10/2026



€155.20
tax incl.

Product information

Key features according to our expert

  • Connection size 1: 24 x 32 mm
  • Connection size 2: 27 x 36 mm

Product description:

  • Insert adapter for torque spanners, 24x32 - 27x36 mm

Features:

  • Allows your spanner to be adapted to inserts with a smaller or larger holder
  • The insert is secured to the torque spanner with a spring-loaded retractable pin
  • Range varies from 9 x 12 to 27 x 36 holders
  • Suitable for 7465, 74W9, 74W14, 74P9, 74P14, IZO-D, TAW9, TAW14, TAW24, TAWM9, TAWM14 and TAWM24 spanners
  • The moment length is changed and the moment setting must be calculated

All Features

Connection size 1
24 x 32 mm
Connection size 2
27 x 36 mm
Length of square mm
32 mm
Length of square female mm
36 mm
Total length mm
65 mm
Length and width of square mm
27x36 mm
Weight kg
1.040 kg
Length mm (l)
65 mm
Head width mm (b)
64 mm
Max torque range nm
1200 N·m
Height head mm (h)
42 mm
Width of square mm
24 mm
Width of square female mm
27 mm
Weight g
1040 g
