Product description:

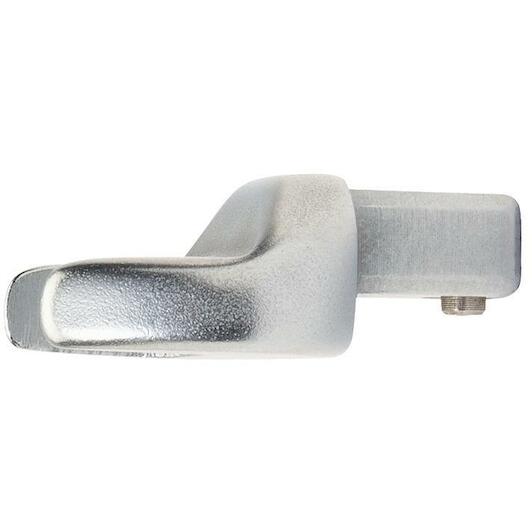

- Insert spanner, rectangular socket 27x36 mm, 32 mm
Features:
- The insert is secured to the torque spanner with a spring-loaded retractable pin
- The range varies from 9 x 12 to 27 x 36 holders, from 7 to 90 mm openings and from 9 to 3000Nm
- For sizes with * in the torque length, the torque setting must be calculated
- Suitable for 7465, 74W9, 74W14, 74P9, 74P14, IZO-D, TAW9, TAW14, TAW24, TAWM9, TAWM14 and TAWM24 spanners
Key features according to our expert
-
Width across flats: 32 mm
-
Connection size (wrench): 27 x 36 mm
-
Connection type (wrench): Outer rectangle
Specifications / All features
-
Brand:
BAHCO
-
08086574
-
EAN:
7314150367191
-
Supplier number:
BAHCO 277-32
- Width across flats
- 32 mm
- Connection size (wrench)
- 27 x 36 mm
- Connection type (wrench)
- Outer rectangle
- Diameter inch
- 32 in
- Weight g
- 1210 g
- Working length mm (l)
- 32 mm
- Length of square mm
- 36 mm
- Head width mm (d)
- 85 mm
- Width mm (b)
- 85 mm
- Total length mm (a)
- 110 mm
- Length and width of square mm
- 27x36 mm
- Height mm (h)
- 28 mm
- Weight kg
- 1.210 kg
- Max torque range nm
- 3000 N·m
- Length mm
- 106 mm
- Width of square mm
- 27 mm
- Diameter mm
- 32 mm
