BAHCO

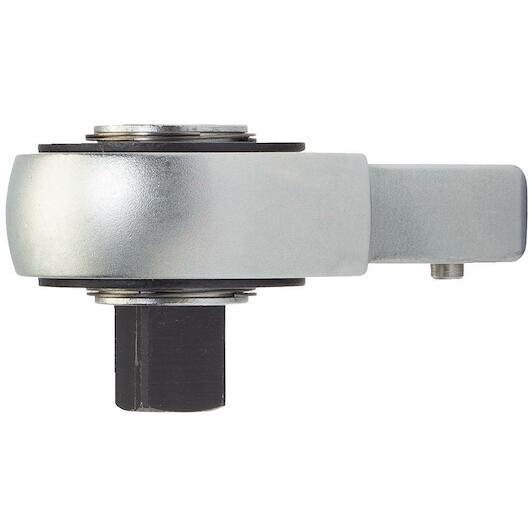

BAHCO 27T-1 plug-in ratchet head with rectangular connection 27x36 mm, connection 1"

Recommended Retail Price €902.53
551.95 tax incl.
€456.16 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

Product description:

  • Insert ratchet head, rectangular head, rectangular connection 27x36 mm, connection 1"

Features:

  • Plug-in square socket for working clockwise and anti-clockwise without having to remove the head from the spanner, as with one-way wrenches
  • Ratchet heads with 60 teeth
  • The insert is secured to the torque spanner with a spring-loaded retractable pin
  • Range varies from 9 x 12 to 27 x 36 holders, from 1/4 to 1 inch square connections and from a maximum torque of 30Nm to 2500Nm
  • Suitable for 7465, 74W9, 74W14, 74P9, 74P14, IZO-D, TAW9, TAW14, TAW24, TAWM9, TAWM14 and TAWM24 spanners
  • For sizes with * in the torque length, the torque setting must be calculated
Key features according to our expert
  • Drive profile size: 1"
  • Connection size: 27 x 36 mm
  • Connection profile: Outer rectangle
  • Type of drive profile: External square
Specifications / All features
Drive profile size
1"
Connection size
27 x 36 mm
Connection profile
Outer rectangle
Type of drive profile
External square
Weight kg
2.255 kg
Length of square mm
36 mm
Head width mm (d)
91 mm
Total length mm (a)
138 mm
Length and width of square mm
27x36 mm
Male square drive
1
Width of square mm
27 mm
Square inch
1 in
Max torque range nm
2500 N·m
Weight g
2255 g
