Product description:

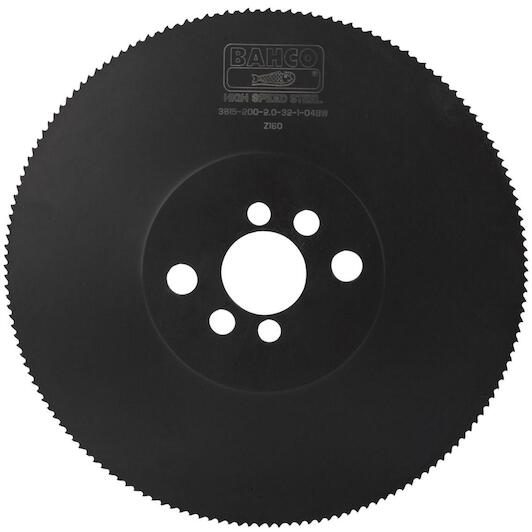

- Circular saw blade HSS with bore 32-1 and BW4 teeth of 2.5 mm, diameter 275 mm
Characteristics:
- HSS circular saw blades for cutting steel, iron, metal and light metal.
- Suitable for both stationary and portable machines
- Hole pattern:
- 2 / 8,5 - 45
- 2 / 9 - 50
- 2 / 11 - 63
- Example: 2/8.5-45 = 2 pin holes Ø 8.5 mm positioned within a circle of 45 mm
- -BW is usually for cutting pipes and profiles and -C applies to cutting solid materials
- Example: -03BW = Spacing of teeth 3 mm with BW tooth shape
- Packed in handy cardboard packaging, to be used as tooth protector
- HSS circular saw with steam-treated surface
- Flexibility for use in both stationary and portable machines
- Tooth shape -BW is mainly for cutting pipes and profiles, the teeth slope alternately at 45° and break the chips in half, ensuring good chip removal.
- Tooth shape -C is used for solid parts and thick pipes; every second tooth has two chamfers on each side, while the rest have no chamfers
- A useful rule of thumb is that a minimum of three teeth should be interlocked at the same time
Key features according to our expert
-
Saw blade diameter: 275 mm
-
Mounting (saw blade/cutter): Round
-
Bore size: 32 mm
-
Number of teeth: 220
-
Kerf width: 2,5 mm
-
For material: Steel
Specifications / All features
- Saw blade diameter
- 275 mm
- Mounting (saw blade/cutter)
- Round
- Bore size
- 32 mm
- Number of teeth
- 220
- Kerf width
- 2,5 mm
- For material
- Steel
- No. of teeth
- 220
- Thickness mm
- 2,5 mm
- Tooth type
- BW4
- Weight g
- 1150 g
- Diameter mm
- 275 mm
