Product description:

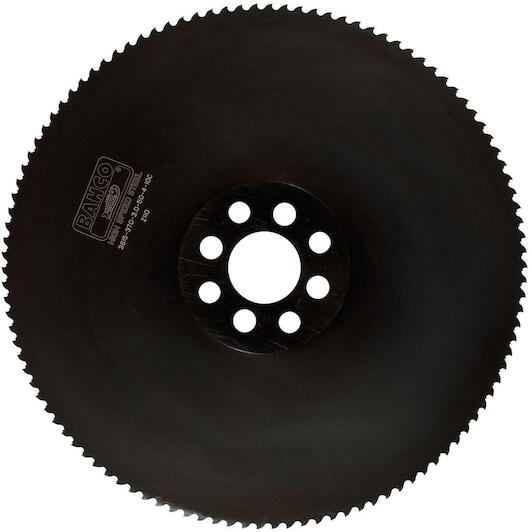

- Circular saw blade HSS with bore 50-4 and C10 teeth of 3.5 mm, diameter 400 mm
Characteristics:
- HSS circular saw blades for cutting steel, iron, metal and light metal.
- Suitable for both stationary and portable machines
- Hole pattern:
- 4 / 15 - 80
- Example: 4/15-80 = 4 pin holes Ø 15 mm positioned within a circle of 80 mm
- Tooth shape -C is used for solid parts and thick pipes; each second tooth has two chamfers on each side, while the rest have no chamfers
- Example: -08C = Spacing of teeth 8 mm with C tooth shape
- Packed in handy cardboard packaging, to be used as tooth protector
- HSS Circular saw with steam-treated surface
- Flexibility for use in both stationary and portable machines
- Tooth shape -BW is mainly for cutting pipes and profiles, the teeth slope alternately at 45° and break the chips in half, ensuring good chip removal.
- Tooth shape -C is used for solid parts and thick pipes; every second tooth has two chamfers on each side, while the rest have no chamfers
- A useful rule of thumb is that a minimum of three teeth must be interlocked at the same time
Key features according to our expert
-
Saw blade diameter: 400 mm
-
Mounting (saw blade/cutter): Round
-
Bore size: 50 mm
-
Number of teeth: 128
-
Kerf width: 3,5 mm
-
For material: Steel
Specifications / All features
- Saw blade diameter
- 400 mm
- Mounting (saw blade/cutter)
- Round
- Bore size
- 50 mm
- Number of teeth
- 128
- Kerf width
- 3,5 mm
- For material
- Steel
- No. of teeth
- 128
- Thickness mm
- 3,5 mm
- Tooth type
- C10
- Weight g
- 3100 g
- Diameter mm
- 400 mm
