BAHCO

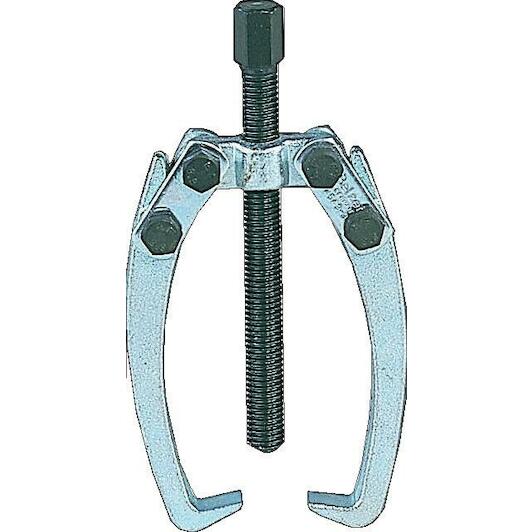

BAHCO 4543-3 puller slightly galvanised with two arms 10-90 mm 84 mm

Recommended Retail Price €76.94
44.80 tax incl.
€37.02 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/05/2026
each

Product description:

  • Extractor: 2 and 3 arms
  • Finish: Galvanised
  • Material: special steel
  • Handy puller for light duty work, such as on terminals, gears, ball bearings, pulleys etc
  • 4543-10 to -30 with 3 arms
  • 4543-1 to -3 with 2 arms
  • 4543/B: Spare body
  • 4543-12/B for 4543-1 and 4543-2
  • 4543-3/B for 4543-3
  • 4543-1020/B for 4543-10 and 4543-20
  • 4543-30/B for 4543-30
  • 4543K: Spare arm
  • 4543K110 for 4543-1 and 4543-10
  • 4543K220 for 4543-2 and 4543-20
  • 4543K330 for 4543-3 and 4543-30
  • 4543/S: Spare spindle
  • 4543-1/S for 4543-1 and 4543-10
  • 4543-2/S for 4543-2 and 4543-20
  • 4543-3/S for 4543-3 and 4543-30
Key features according to our expert
  • Max. width: 90 mm
  • Max. height: 84 mm
  • Hydraulical: No
Specifications / All features
Max. width
90 mm
Max. height
84 mm
Hydraulical
No
Weight g
320 g
Width mm (a)
10-90 mm
Width extractor mm
10-90 mm
Maximum loading capacity kn
20 kN
Extractor height mm
84 mm
Torque range nm
24 N·m
Hexagon size mm
12 mm
Arm length mm
84 mm
Maximum loading capacity to
2 to
Spare spindle type & size mm
M10x105 mm
