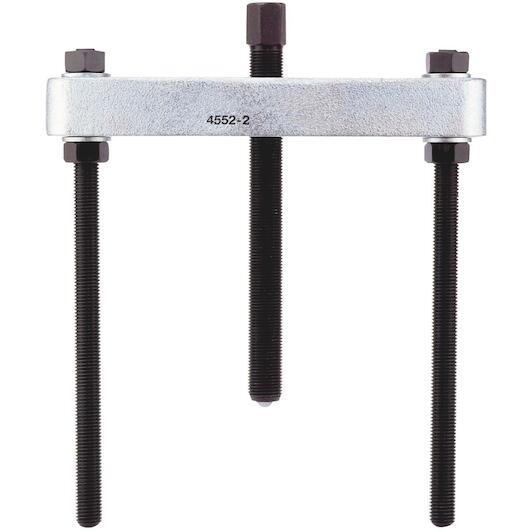

BAHCO 4552-2 trigger for bearing separator 4551-C

Name: BAHCO 4552-2 trigger for bearing separator 4551-C
Brand: BAHCO
SKU: 41851599
Price: 147.95 EUR
Availability: PreOrder

Supplier number: BAHCO 4552-2 | EAN 7314151723088

Recommended Retail Price €242.42

147.95 tax incl.

€122.27 excl. VAT (incl. all environmental contributions)

On order: delivered from 09/10/2026

Ordered before 20:00 - delivered as of 09/10/2026
Free shipping
Delivery by DHL
Lifetime warranty on Bahco? Or limited in time? Read more about it here.
Delivered from Belgium

✆ Talk to a specialist

Dependable Bahco puller for separators

Practical benefits

Powerful 4 t capacity: You safely remove stubborn components with a maximum load capacity of 4 t and a tightening torque of 70 Nm.
Versatile 55-200 mm reach: Featuring an opening width of 55 to 200 mm and a span depth of 210 mm, you easily access deeply positioned parts.
Designed for model 4551-C: You pair this device directly with the 4551-C bearing separator to smoothly withdraw bearings and gears from shafts.

In a nutshell

The right choise for

With the Bahco 4552-2 auxiliary puller, you remove tight-fitting bearings, bushings, and gears from shafts safely and without damaging components. When standard arm pullers cannot find a grip behind the bearing race, you pair this tool directly with the Bahco 4551-C bearing separator. Featuring a wide clamping span of 55 to 200 mm and a maximum reach of 210 mm, it easily accesses deeply positioned parts. The rugged design delivers up to 4 t of mechanical pulling force at a maximum tightening torque of 70 Nm, giving you total control and efficiency during heavy maintenance and overhaul tasks in the workshop.

Product information FAQ

€147.95

tax incl.

Key features according to our expert

Min. width: 55 mm
Max. height: 210 mm
Max. load: 4 t
Max. tightening torque: 70 Nm
For model: 4551-C
Max. width: 200 mm

Product description:

Extractor for separator

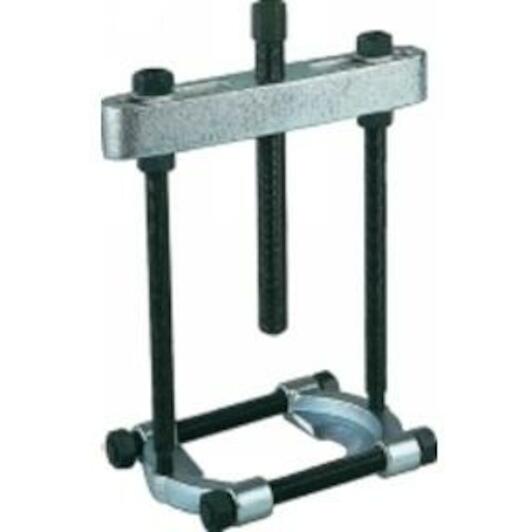

Operation: The sharp tapered cutting edges of separator No. 4551 are pressed behind the part to be removed when tightening the stud nuts
Use puller No. 4552 to withdraw separator and part from the shaft by tightening the rod nuts
Opening capacity/span depth in mm:
4552-1: 45-140/150
4552-2: 55-200/210
4552-3: 90-260/315
4552/B: Spare body
4552K: Spare tie rod
4532/S: Spare spindle
4532-OAB/S: for 4552-1 (M14x1.5x135, SW 17, 175 g)
4532-CD/S for 4552-2 and 4552-3 (G1/2"x14x210, SW 22, 575 g)

All Features

Min. width: 55 mm
Max. height: 210 mm
Max. load: 4 t
Max. tightening torque: 70 Nm
For model: 4551-C
Max. width: 200 mm
Maximum loading capacity to: 4 to
Maximum loading capacity kn: 40 kN
Separator: 4551-C
Torque range nm: 70 N·m
Weight g: 2800 g

Brand BAHCO
41851599
EAN 7314151723088
Supplier number BAHCO 4552-2
Warranty Lifetime warranty on Bahco? Or limited in time? Read more about it here.

Frequently asked questions about this product

Answered by specialists

Which bearing separator is this puller compatible with?: This auxiliary puller is designed for use with the Bahco 4551-C bearing separator.
What is the working range of the Bahco 4552-2?: The puller has a clamping width of 55 to 200 mm and a maximum reach of 210 mm.
What is the maximum pulling capacity of this tool?: This model supports a maximum load capacity of 4 t.
What is the maximum tightening torque for the spindle?: The maximum permitted tightening torque is 70 Nm.
How does this auxiliary puller work with the separator?: After wedging the separator behind the component, you use the puller spindle to draw it off the shaft.
