Product description:
- Double-shell torque spanner with fixed ratchet head
Features:
- Durable mechanism with more than 100,000 cycles within accuracy standard
- Quick scale adjustment making adjustment less effort
- TIME TRIP Visual indication that the spanner needs to be recalibrated with graduations of 3, 6, 9 and 12 months

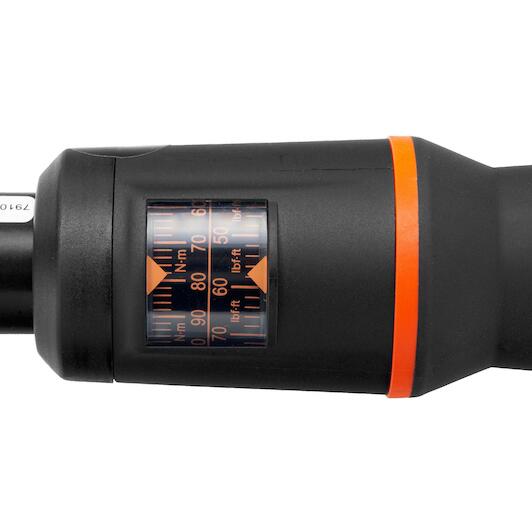

- Large double scale inNm/ft.lb
- Range of torque values ranges from 10 to 400Nm/7.5 to 300 ft.lb
- Accurate to ±3% of measured value, better than the requirements of ISO6789-1:2017
- Click system activates a tangible and audible signal
- Plug-in ratchet heads from 3/8" to 3/4" square connections can be used clockwise or anti-clockwise

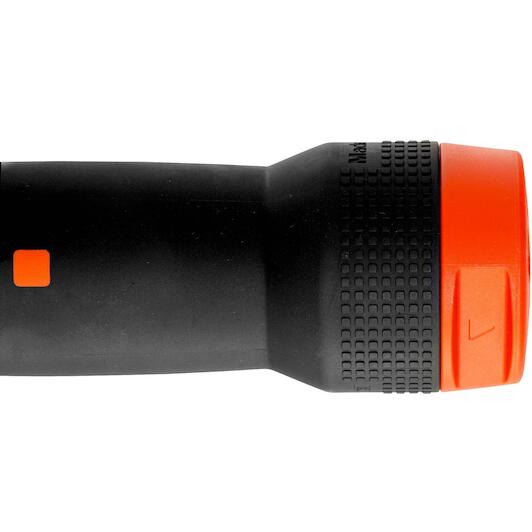

- Centre of handle or calibration force point marked on handle

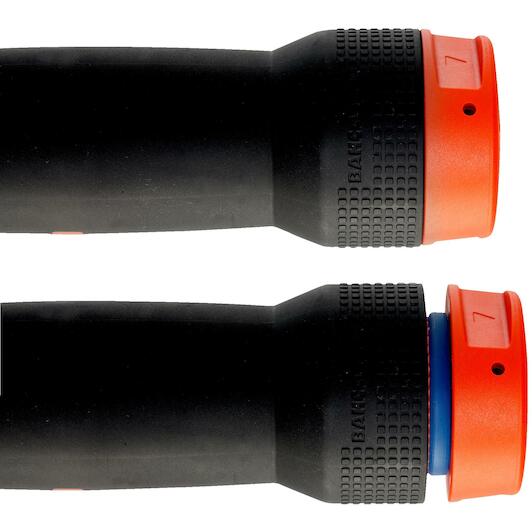

- Lock/unlock button with blue ring on the inside alerting the user when the key is unlocked
- All in semi-transparent square tube with eurohole hanger
- All keys come with manufacturer's declaration of conformity, traceable to international standards
- ISO 6789
- Made in the United Kingdom

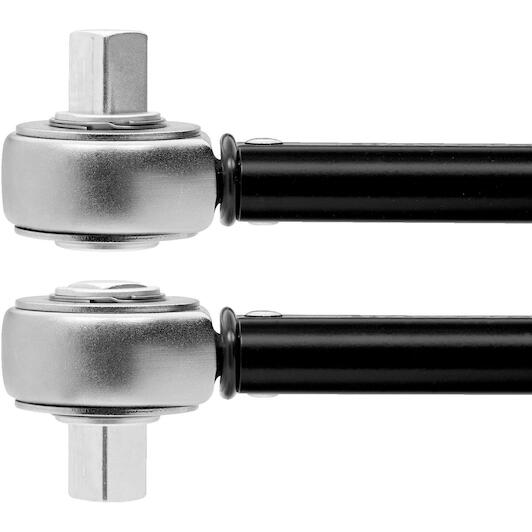

- Can be used clockwise or anti-clockwise by flipping over the square end of the ratchet
Key features according to our expert
-
Min. tightening torque: 60 Nm
-
Drive profile size: 1/2"
-
VDE approved: No
-
With safety colour code 1000V: Not applicable
-
ESD: No
-
Adjustable torque range: 60-340 Nm
-
Max. tightening torque: 340 Nm
Specifications / All features
-
Brand:
BAHCO
-
08080073
-
EAN:
7314150415571
-
Supplier number:
BAHCO 74WR-340
- Min. tightening torque
- 60 Nm
- Drive profile size
- 1/2"
- Vde approved
- No
- With safety colour code 1000v
- Not applicable
- Esd
- No
- Adjustable torque range
- 60-340 Nm
- Max. tightening torque
- 340 Nm
- Weight kg
- 1.5 kg
- Weight g
- 1500 g

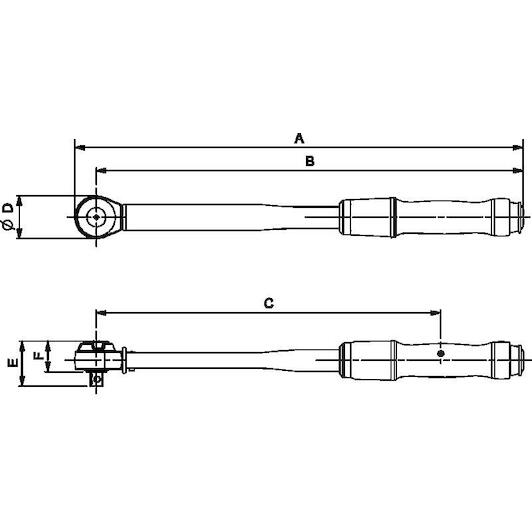

- Head width mm (d)
- 52 mm
- Torque range nm
- 60-340 N·m
- Square drive
- 1/2"
- Total length mm (a)
- 685 mm
- Square inch
- 1/2 in
- Measuring range lb.ft
- 45-250 lbf·ft
- Norms
- ISO6789-2:2017
- Scale nm
- 5 N·m
