BAHCO 74WR-50 torque spanner with double scale and fixed ratchet head 10-50 Nm

Name: BAHCO 74WR-50 torque spanner with double scale and fixed ratchet head 10-50 Nm
Brand: BAHCO
SKU: 08080077
Price: 224.8 EUR
Availability: PreOrder

Supplier number: BAHCO 74WR-50 | EAN 7314150415533

Recommended Retail Price €377.98

224.80 tax incl.

€185.79 excl. VAT (incl. all environmental contributions)

On order: delivered from 10/10/2026

Ordered before 20:00 - delivered as of 10/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Alternative to this product

EXPERT E100109 torque spanner 1/2" - 60 to...

138.80 €215.21

€114.71 excl. VAT

Delivery time average 8 days.

GEDORE 2958066 Torcoflex UK torque...

191.20 €335.58

€158.02 excl. VAT

Delivery time average 4 days.

View more alternatives (3)

Precise tightening with Bahco

Practical benefits

Clear tactile click signal: You feel and hear a distinct click as soon as you reach the preset torque between 10 and 50 Nm.
Easy dual scale reading: The clear dual scale allows you to set the required torque value quickly and accurately.
Reversible push-through drive: Thanks to the 3/8" push-through square mechanism, you switch smoothly between clockwise and anticlockwise fastening.

In a nutshell

The right choise for

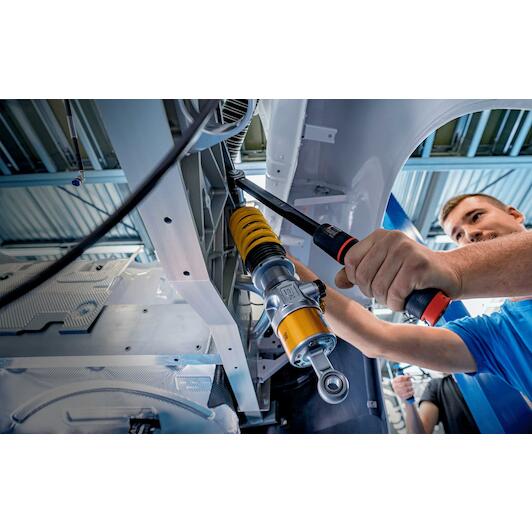

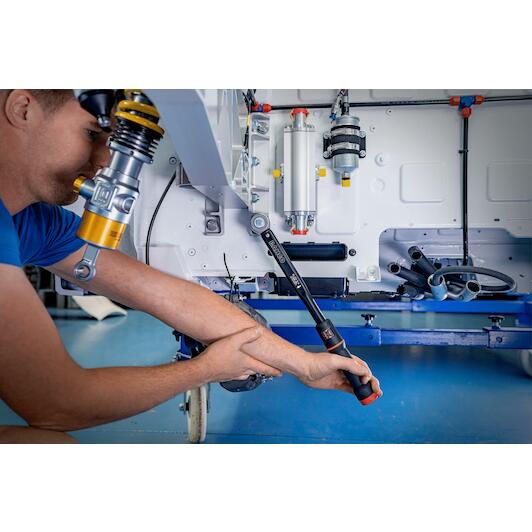

With the Bahco 74WR-50 torque wrench, you tighten bolts and nuts with absolute precision. Featuring an adjustable range of 10 to 50 Nm and a clear dual scale, it allows you to set the required torque quickly and accurately. The click mechanism gives you a distinct tactile and audible signal as soon as the target torque is reached, preventing overtightened or damaged threads. Thanks to the fixed 3/8" ratchet head with push-through square drive, switching between clockwise and anticlockwise fastening is effortless. Perfect for maintenance and repair work on engines, light vehicles, and machinery where exact torque control is essential.

Product information FAQ

€224.80

tax incl.

Key features according to our expert

Max. tightening torque: 50 Nm
Drive profile size: 3/8"
VDE approved: No
With safety colour code 1000V: Not applicable
ESD: No
Display: Analogue
Min. tightening torque: 10 Nm

Product description:

Double-shell torque spanner with fixed ratchet head

Features:

Durable mechanism with more than 100,000 cycles within accuracy standard
Quick scale adjustment making adjustment less effort
TIME TRIP Visual indication that the spanner needs to be recalibrated with graduations of 3, 6, 9 and 12 months

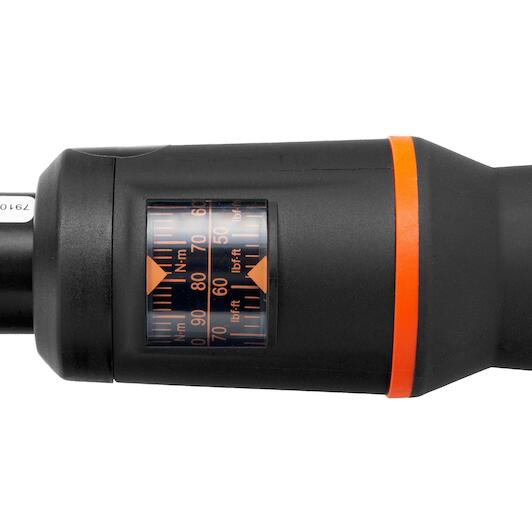

Large double scale inNm/ft.lb
Range of torque values ranges from 10 to 400Nm/7.5 to 300 ft.lb
Accurate to ±3% of measured value, better than the requirements of ISO6789-1:2017
Click system activates a tangible and audible signal
Plug-in ratchet heads from 3/8" to 3/4" square connections can be used clockwise or anti-clockwise

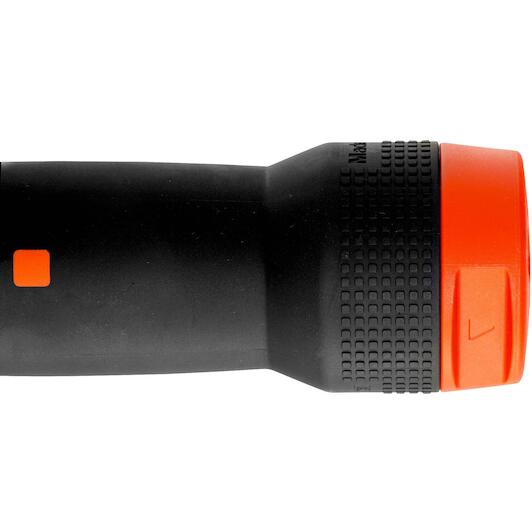

Centre of handle or calibration force point marked on handle

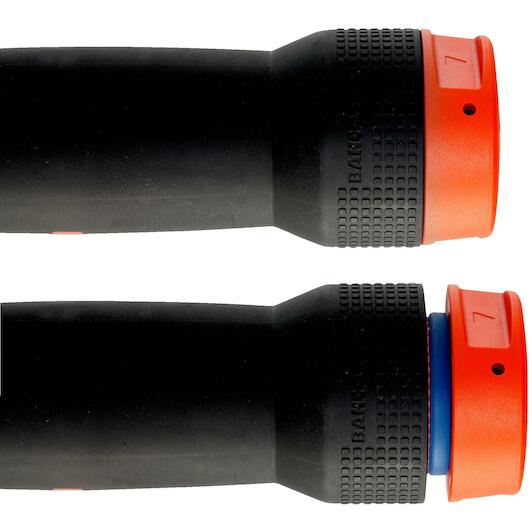

Lock/unlock button with blue ring on the inside alerting the user when the key is unlocked
All in semi-transparent square tube with eurohole hanger
All keys come with manufacturer's declaration of conformity, traceable to international standards
ISO 6789
Made in the United Kingdom

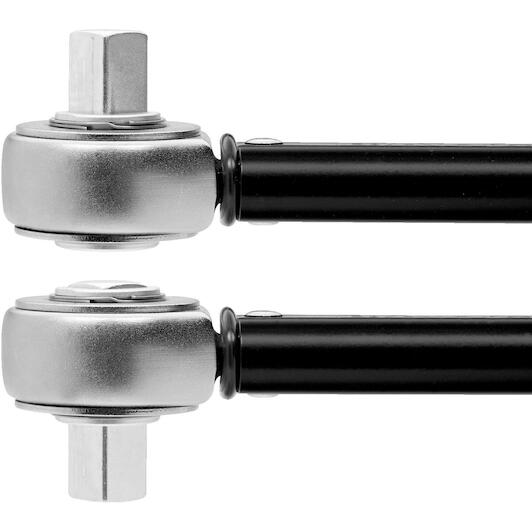

Can be used clockwise or anti-clockwise by flipping over the square end of the ratchet

All Features

Max. tightening torque: 50 Nm
Drive profile size: 3/8"
Vde approved: No
With safety colour code 1000v: Not applicable
Esd: No
Display: Analogue
Min. tightening torque: 10 Nm
Weight kg: 0.7 kg
Weight g: 700 g

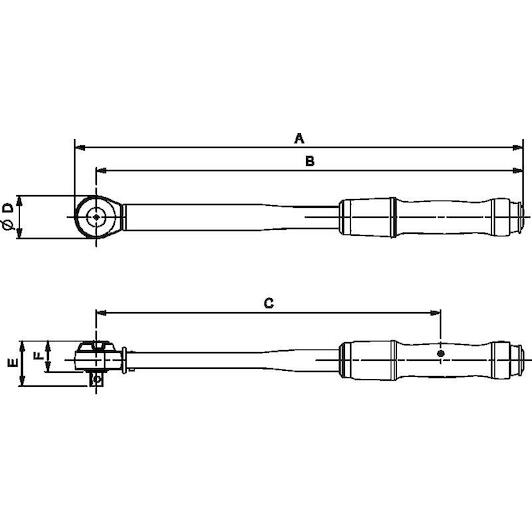

Head width mm (d): 35 mm
Torque range nm: 10-50 N·m
Square drive: 3/8"
Total length mm (a): 335 mm
Square inch: 3/8 in
Measuring range lb.ft: 7.5-37.5 lbf·ft
Norm: ISO6789-2:2017
Scale nm: 0,5 N·m

Brand BAHCO
08080077
EAN 7314150415533
Supplier number BAHCO 74WR-50

Frequently asked questions about this product

Answered by specialists

What is the adjustable torque range of this wrench?: The adjustable torque range covers 10 to 50 Nm (7.5 to 37.5 ft.lb).
What drive size does the Bahco 74WR-50 feature?: It features a fixed ratchet head with a 3/8" square drive.
Can this torque wrench be used for both clockwise and anti-clockwise tightening?: Yes, you can switch direction easily by pushing through the square drive of the ratchet head.
How do you know when the set torque is reached?: The click mechanism delivers a clear tactile and audible click signal once the torque is reached.
Is this tool suitable for live electrical installations?: No, this torque wrench is not VDE-approved or insulated.
