Product description:
- Mechanically adjustable click torque spanner with free hand placement and fixed ratchet head
Features:
- Not dependent on length, so can be used with or without the supplied extension handle (optional on the 650Nm)

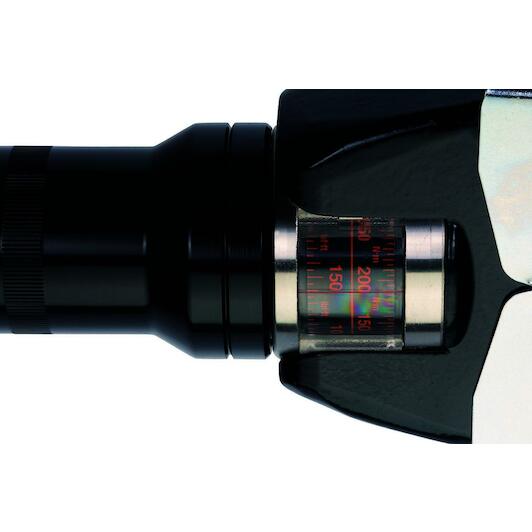

- Large double scale inNm/ft.lb
- Range of torque values ranges from 130 to 1500Nm/100 to 1100 ft.lb

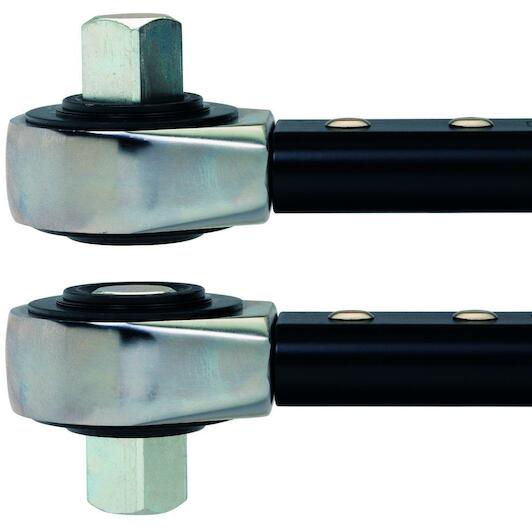

- Can be used clockwise or anti-clockwise by flipping the ratchet's square connection
- Accurate to ±3% of measured value, better than the requirements of ISO6789-1:2017

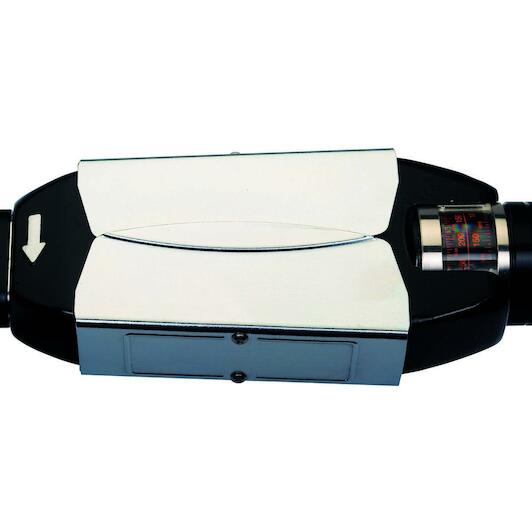

- Exceptionally clear torque signal from unique mechanism
- Plug-in ratchet heads can be used in either counterclockwise or clockwise direction
- Extension handle significantly reduces user effort for high torque values
- All in portable robust blow-moulded case
- All keys come with manufacturer's declaration of conformity, traceable to international standards
- ISO 6789
- Made in the United Kingdom
Key features according to our expert
-
Min. tightening torque: 500 Nm
-
Drive profile size: 1"
-
VDE approved: No
-
With safety colour code 1000V: Not applicable
-
ESD: No
-
Adjustable torque range: 500-1500 Nm
-
Max. tightening torque: 1500 Nm
Specifications / All features
-
Brand:
BAHCO
-
08080065
-
EAN:
7314150415236
-
Supplier number:
BAHCO 75R1-1500
- Min. tightening torque
- 500 Nm
- Drive profile size
- 1"
- Vde approved
- No
- With safety colour code 1000v
- Not applicable
- Esd
- No
- Adjustable torque range
- 500-1500 Nm
- Max. tightening torque
- 1500 Nm
- Square inch
- 1" in
- Weight g
- 6700 g
- Head width mm (d)
- 75 mm
- Torque range nm
- 500-1500 N·m
- Total length mm (a)
- 1571 mm
- Weight kg
- 6.700 kg
- Measuring range lb.ft
- 370-1100 lbf·ft
- Norms
- ISO6789-2:2017
- Scale nm
- 10 N·m
