BAHCO

BAHCO 75R3-800 mechanical click spanner with free hand placement and fixed ratchet head, 3/4", 200-800Nm

Recommended Retail Price €1,943.93
1,189.20 tax incl.
€982.81 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description:

  • Mechanically adjustable click torque spanner with free hand placement and fixed ratchet head

Features:

  • Not dependent on length, so can be used with or without the supplied extension handle (optional on the 650Nm)

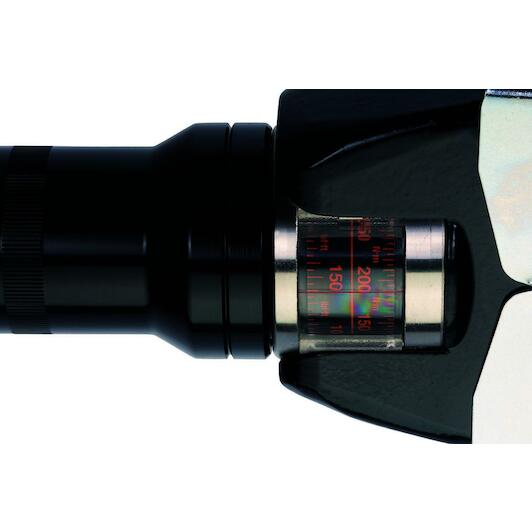

  • Large double scale inNm/ft.lb
  • Range of torque values ranges from 130 to 1500Nm/100 to 1100 ft.lb

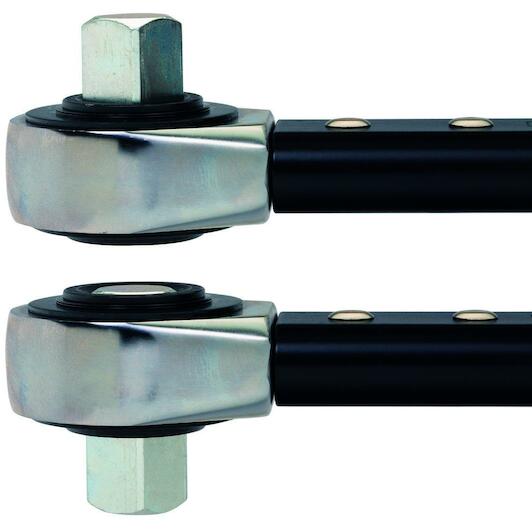

  • Can be used clockwise or anti-clockwise by flipping the ratchet's square connection
  • Accurate to ±3% of measured value, better than the requirements of ISO6789-1:2017
  • Exceptionally clear torque signal from unique mechanism
  • Plug-in ratchet heads can be used in either counterclockwise or clockwise direction
  • Extension handle significantly reduces user effort for high torque values
  • All in portable robust blow-moulded case
  • All keys come with manufacturer's declaration of conformity, traceable to international standards
  • ISO 6789
  • Made in the United Kingdom
Key features according to our expert
  • Min. tightening torque: 200 Nm
  • Drive profile size: 3/4"
  • VDE approved: No
  • With safety colour code 1000V: Not applicable
  • ESD: No
  • Adjustable torque range: 200-800 Nm
  • Max. tightening torque: 800 Nm
Specifications / All features
  • Brand: BAHCO
  • EAN: 7314150415212
  • Supplier number: BAHCO 75R3-800
Min. tightening torque
200 Nm
Drive profile size
3/4"
Vde approved
No
With safety colour code 1000v
Not applicable
Esd
No
Adjustable torque range
200-800 Nm
Max. tightening torque
800 Nm
Square inch
3/4" in
Weight g
5200 g
Head width mm (d)
75 mm
Torque range nm
200-800 N·m
Total length mm (a)
1037 mm
Weight kg
5.200 kg
Measuring range lb.ft
150-600 lbf·ft
Norms
ISO6789-2:2017
Scale nm
10 N·m
