Product description:

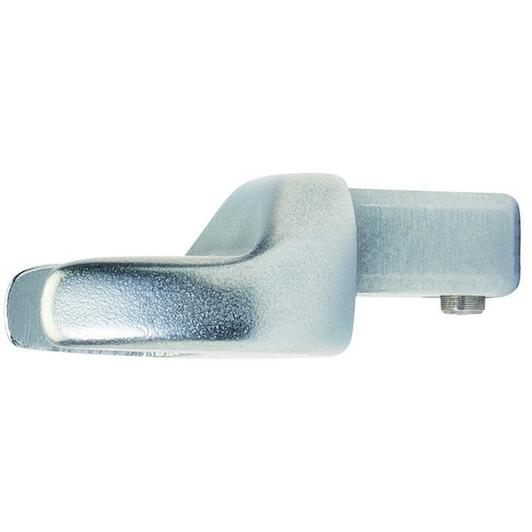

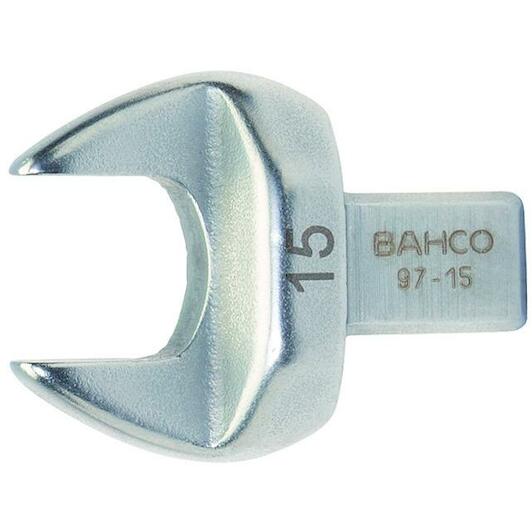

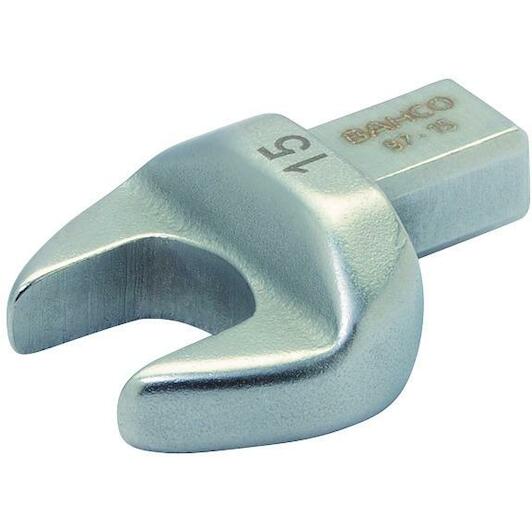

- Open-ended metric spanner with rectangular connector
Features:
- The insert is secured to the torque spanner with a spring-loaded retractable pin
- The range varies from 9 x 12 to 27 x 36 holders, from 7 to 90 mm openings and from 9 to 3000Nm
- For sizes with * in the torque length, the torque setting must be calculated
- Suitable for 7465, 74W9, 74W14, 74P9, 74P14, IZO-D, TAW9, TAW14, TAW24, TAWM9, TAWM14 and TAWM24 spanners
Key features according to our expert
-
Width across flats: 30 mm
-
Connection size (wrench): 9 x 12 mm
-
Connection type (wrench): Outer rectangle
Specifications / All features
-
Brand:
BAHCO
-
02959850
-
EAN:
7314150366408
-
Supplier number:
BAHCO 97-30
- Width across flats
- 30 mm
- Connection size (wrench)
- 9 x 12 mm
- Connection type (wrench)
- Outer rectangle
- Diameter inch
- 30 in
- Weight g
- 145 g
- Working length mm (l)
- 35 mm
- Length of square mm
- 12 mm
- Head width mm (d)
- 66 mm
- Width mm (b)
- 66 mm
- Total length mm (a)
- 65 mm
- Length and width of square mm
- 9x12 mm
- Height mm (h)
- 8 mm
- Weight kg
- 0.145 kg
- Max torque range nm
- 160 N·m
- Length mm
- *35 mm
- Width of square mm
- 9 mm
- Diameter mm
- 30 mm
