Product description
- Load capacity up to 350 kg when fully retracted telescopic pole

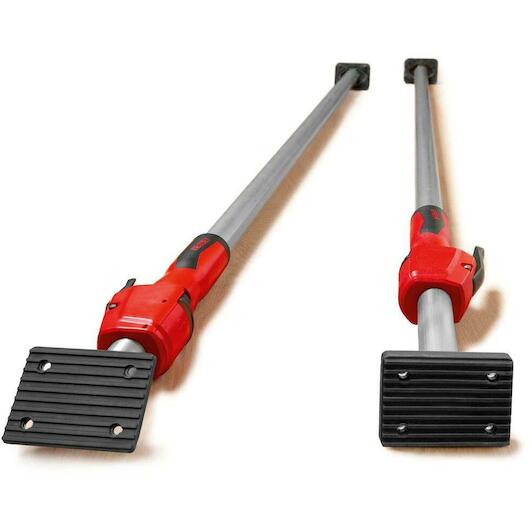

- Extremely stable construction through high-load-bearing steel tubes and non-slip PVC contact surfaces (9 x 7 cm)

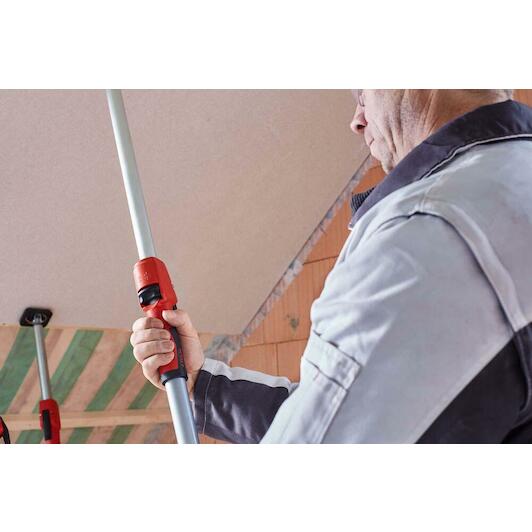

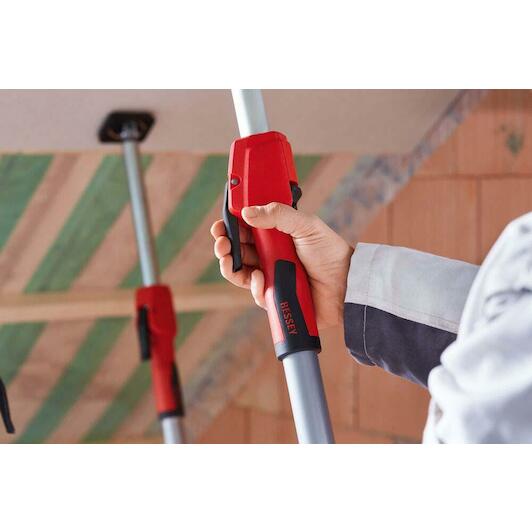

- One-hand operation thanks to 2-component plastic handle with pump mechanism
- Quick-release button for quickly retracting and extending the telescopic pole
- Adjustable holding force by turning the support on the handle

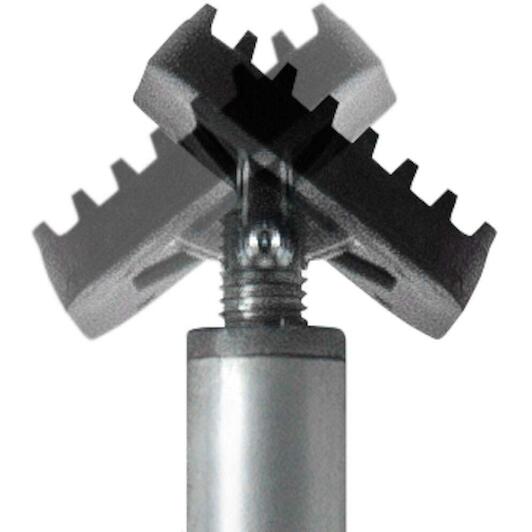

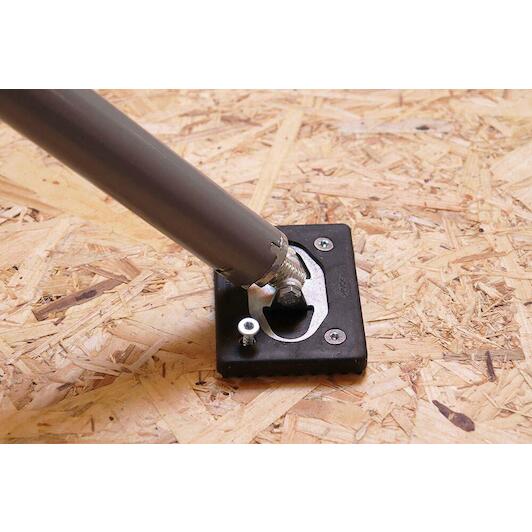

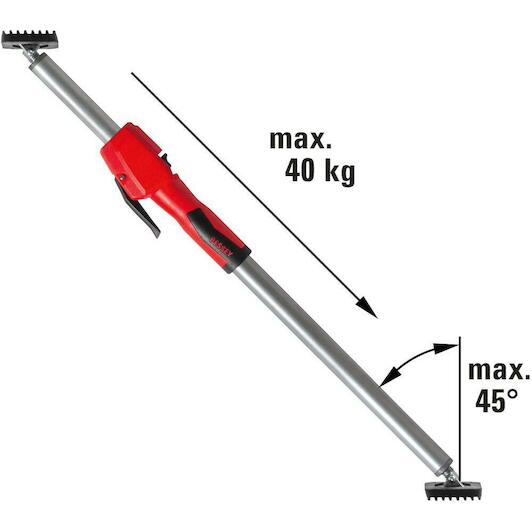

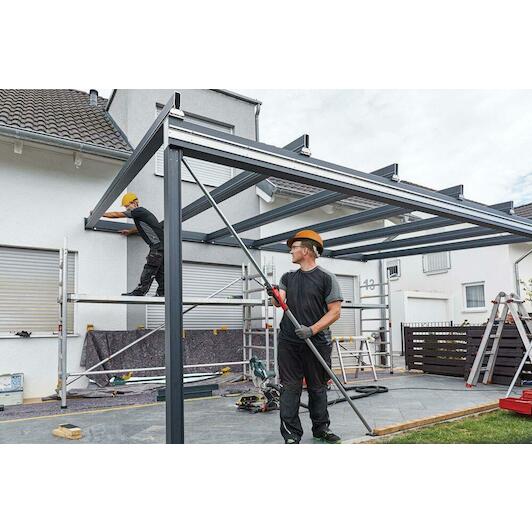

- Can also be used in inclined positions thanks to the contact surfaces, which can be tilted continuously from -45° to +45°
Extremely secure grip
The support guarantees a reliable, secure grip
- through the extremely stable construction for a load capacity of up to 350 kg - depending on the support size and extension length
- through rubber PVC contact surfaces at the top and bottom
- through slip protection integrated in the handle
Precise and fast handling
The support can be accurately adjusted to requirements and safely released

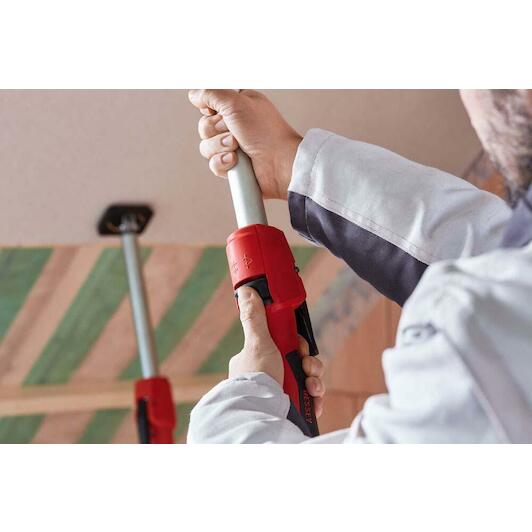

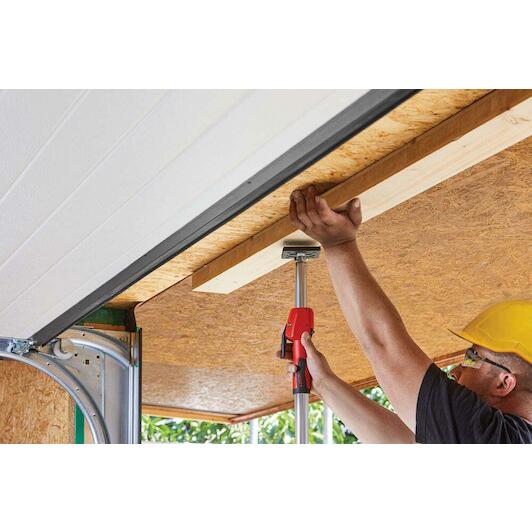

- by fixing in three steps: To pre-adjust the ceiling prop, press the release button and extend the telescopic inner tube to the desired length. Fine adjustment is done by operating the pump handle until the installation plate of the support is in contact with the workpiece. Then turn the handle clockwise until the desired holding force is reached (note the maximum load capacity)
- by unlocking in two steps: First turn the ceiling punch anticlockwise. As soon as there is no more holding force, press the release button to retract the inner tube

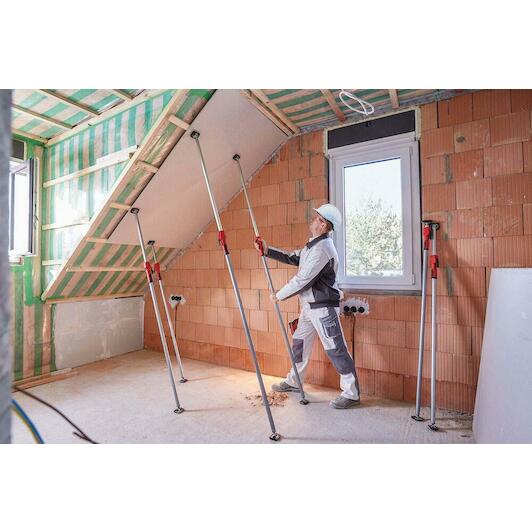

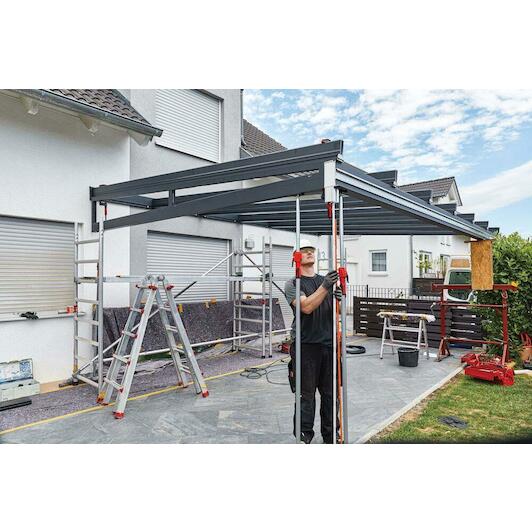

Application areas

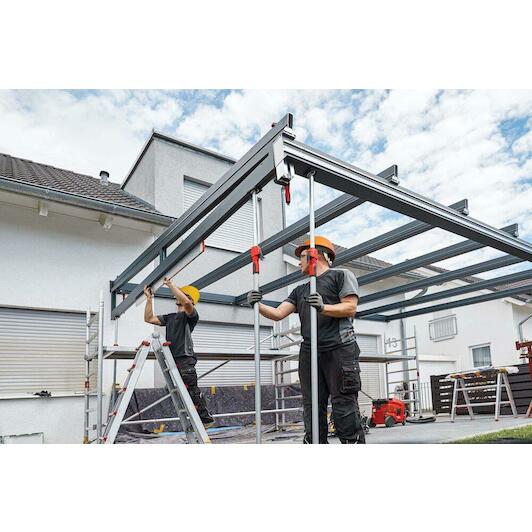

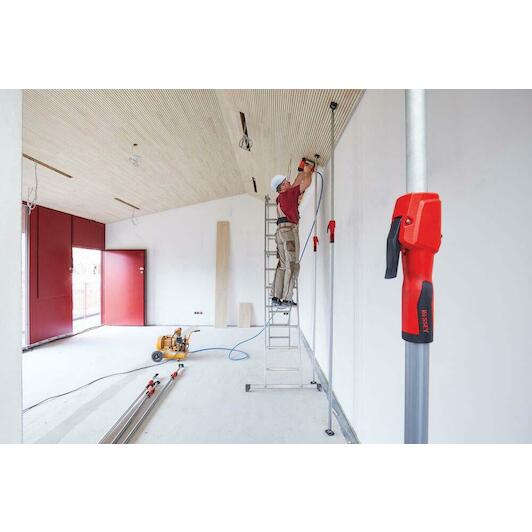

- Finishing construction
- Rough construction
- DIY
- Staircase construction
- Finishing
- Carpentry and timber frame construction

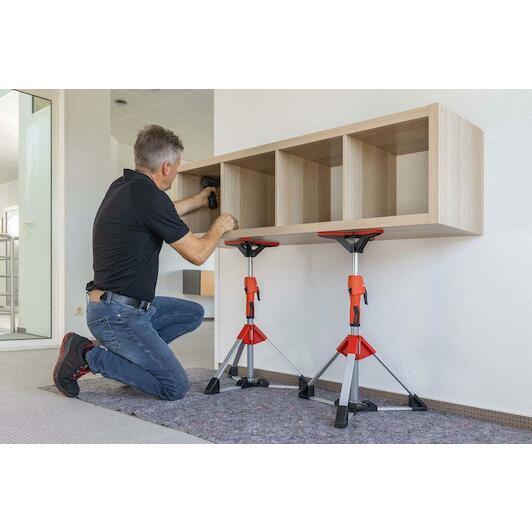

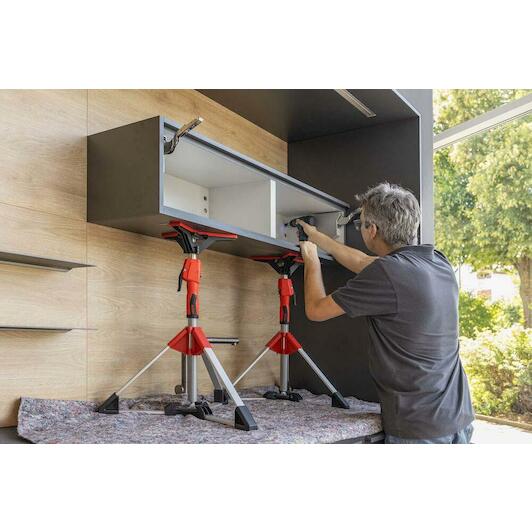

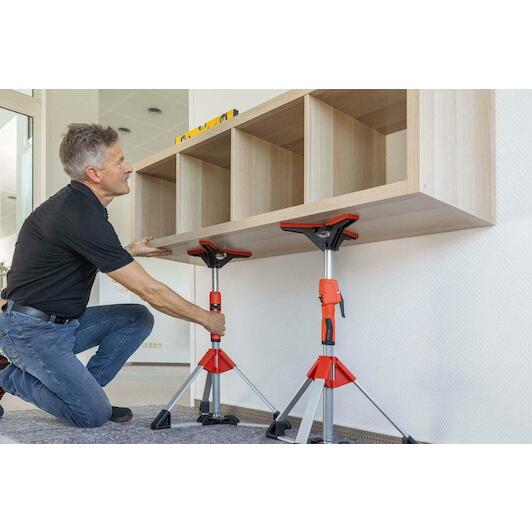

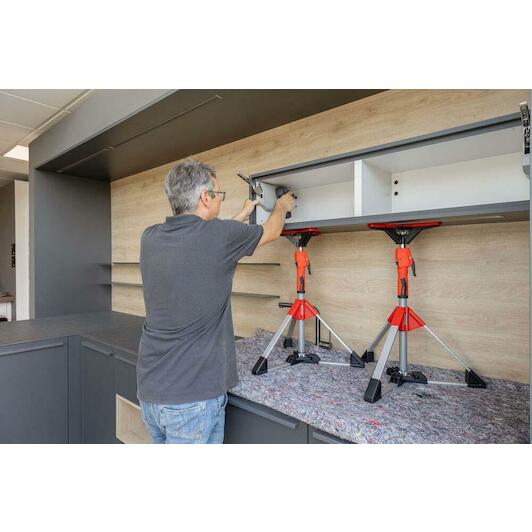

- Fixing and supporting in finishing

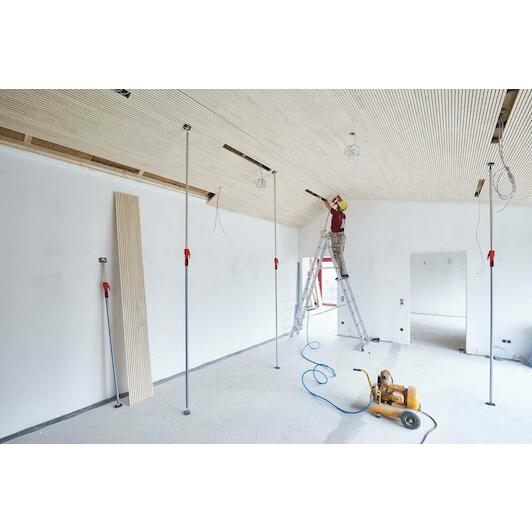

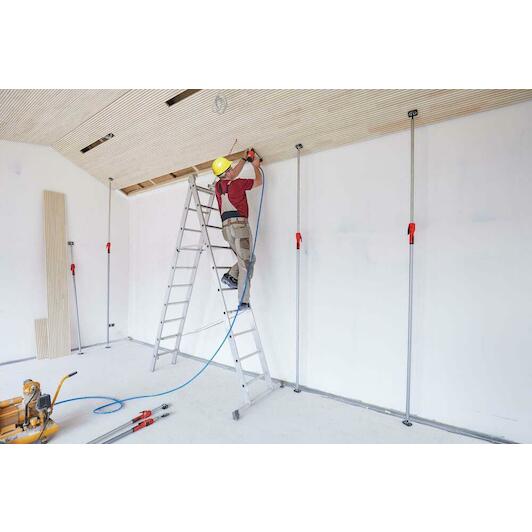

- One-man assembly
Safety instructions
Read and observe the operating instructions.
- The specified maximum loads must not be exceeded.
- You may only use the ceiling support and mounting bracket on flat and clean surfaces.
- The ceiling support and mounting bracket may not be loaded sideways.
- The ceiling bracket and mounting support may only be stretched by hand and without additional aids.
- You may only use original BESSEY spare parts.
- Protect yourself with safety glasses and an assembly helmet.
Material/Surface
- Upper and lower part made of reinforced PA6 plastic
- Steel tube, coated
- Lever made of reinforced PA6 plastic
- Protective caps made of plastic
Maintenance
Clean rails with solvent
Clean and lubricate spindle regularly
