Scope of delivery
- Precision drill bit with two main and side cutting edges as well as short centring tip
Product description

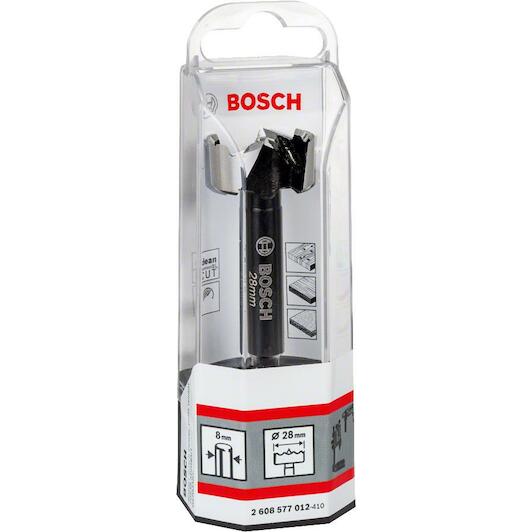

- Machine wood drill bit 28 x 90 mm, d 8 mm, toothed-edge
- Outstanding lifetime for accurate drill holes
- Machine wood drill bit has an outstanding lifetime for drilling accurate holes
- The toothed-edge design generates less friction and heat, making the drill bit last longer
Advantages
- Excellent lifetime - The machine wood drill has an outstanding lifetime for drilling accurate holes.
- The serrated design generates less friction and heat, making the drill bit last longer.
- The accurate short centring tip has two main cutting edges and an edge cutting edge (toothed) for optimum results.
- Due to the large chip-free zones, which optimise chip removal, drilling accuracy is even higher.

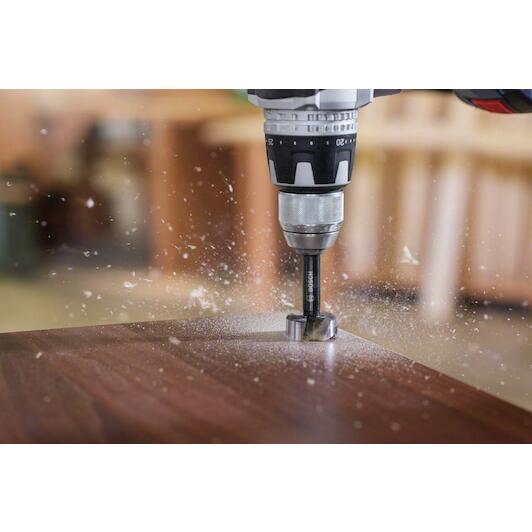

- This allows splinter-free drilling of smooth blind holes, as well as corner drilling, e.g. when fastening hinges or dowels and removing brush holes.
- To be used for soft- and hardwood, veneer and non-laminated chipboard.
- It is intended for all drills (drill/screw machines, drill stands) with a 10 mm chuck.
- The 3-sided shank of the machine wood drill prevents it from rotating in the drill head.
- Manufactured according to DIN 7483G, hardness of cutting part is at least 50 HRC.
- Cylindrical shank compatible with three-claw drill chucks.
Key features according to our expert
-
Diameter: 28 mm
-
Cutting length: 90 mm
-
Drill bit type: Wood drill bit
-
Overall length: 90 mm
-
Shank size: 8 mm
-
Shank type: Cylindrical
-
Material (drill bit): HSS
Specifications / All features
-
Brand:
BOSCH
-
02773482
-
EAN:
3165140858021
-
Supplier number:
BOSCH 2608577012
- Diameter
- 28 mm
- Cutting length
- 90 mm
- Drill bit type
- Wood drill bit
- Overall length
- 90 mm
- Shank size
- 8 mm
- Shank type
- Cylindrical
- Material (drill bit)
- HSS
- Diameter (d)
- 28 mm
- Overall length (l2)
- 90 mm
- Workable materials (detail)
- Hardwood/solid wood;Chipboard;Softwood
- Shaft diameter (d)
- 8 mm
