Product description

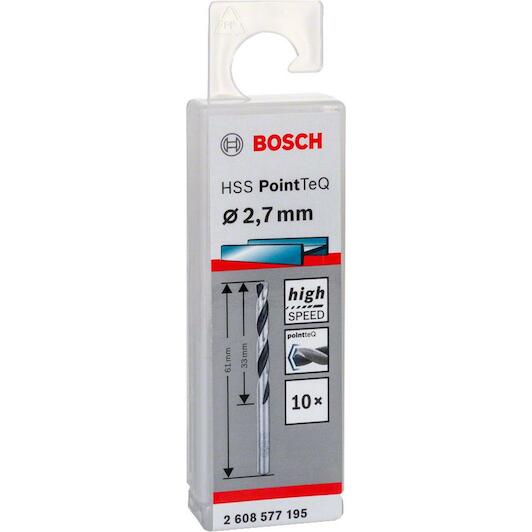

- Spiral drill bit HSS PointTeQ 2.7 mm 10x
- Fast drilling in metal
- The HSS spiral drill PointTeQ offers fast drilling in metal thanks to the PointTeQ tip
- The self-centring tip prevents drift, enabling quick and easy drilling starts
Advantages
- Fast drilling in metal - The HSS spiral drill PointTeQ offers fast drilling in metal thanks to the PointTeQ tip.
- Fast and easy drill start thanks to the self-centring tip that prevents drift.
- Higher drilling speed reduces the risk of heating and wear.
- The PointTeQ tip stays sharp.
- This guarantees excellent durability.
- The drill bit is suitable for drilling through-holes and centring holes in alloyed and unalloyed steel, non-ferrous metals, cast iron and plastic.
- Has a cylindrical shank and is intended for use in drill stands and drill/screw machines.
- The risk of breaking is low, especially for drill bits with a diameter of less than 6 mm, as the drill bit is built very elastically.
- The black oxide-coated spiral allows fast chip removal.
- The HSS PointTeQ spiral drill bit is manufactured in accordance with DIN 338.
- The drill bit is type N (spiral angle) with tip of 135 degrees.
- Cylindrical shank compatible with three-claw drill chucks.
Key features according to our expert
-
Diameter: 2,7 mm
-
Material (drill bit): HSS
-
Cutting length: 33 mm
-
Number of cutting edges: 2 ea
-
Standard: DIN 338
-
Quantity per blister: 10
-
Shank type: Cylindrical
-
Shank size: 2,7 mm
-
Overall length: 61 mm
-
Drill bit type: Metal drill bit
Specifications / All features
-
Brand:
BOSCH
-
02894594
-
EAN:
3165140907040
-
Supplier number:
BOSCH 2608577195
- Diameter
- 2,7 mm
- Material (drill bit)
- HSS
- Cutting length
- 33 mm
- Number of cutting edges
- 2 ea
- Standard
- DIN 338
- Quantity per blister
- 10
- Shank type
- Cylindrical
- Shank size
- 2,7 mm
- Overall length
- 61 mm
- Drill bit type
- Metal drill bit
- Shaft diameter (d)
- 2.7 mm
- Usable length (l1)
- 33 mm
