What materials is this hammer drill bit suitable for?

This bit is suitable for drilling in (reinforced) concrete, masonry, limestone, and natural stone.

Which power tools are compatible with this drill bit?

The bit fits all rotary hammers equipped with an SDS-max tool holder.

What is the usable drilling depth of this SDS-max-7 bit?

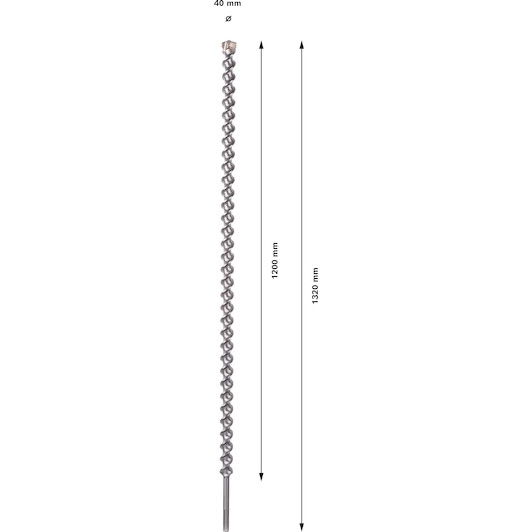

The working length is 1200 mm, with a total length of 1320 mm and a diameter of 40 mm.

Is this drill bit suitable for drilling through reinforced concrete?

Yes, the solid carbide 4-cutter head prevents jamming when hitting rebar.

How do you verify if drilled holes are within tolerance for metal anchors?

The visible wear indicator shows whether the hole diameter is still within tolerance for secure fixings.

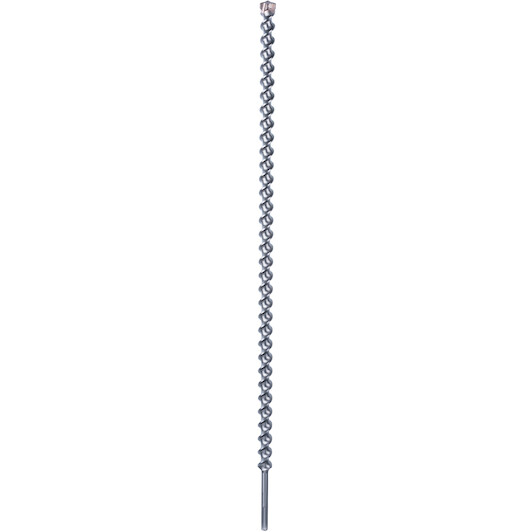

BOSCH 2608586805 hammer drill SDS-Max-7, 40 x 1200 x 1320 mm

Name: BOSCH 2608586805 hammer drill SDS-Max-7, 40 x 1200 x 1320 mm
Brand: BOSCH
SKU: 02221808
Price: 324.4 EUR
Availability: PreOrder

Supplier number: BOSCH 2608586805 | EAN 3165140565875

Recommended Retail Price €710.89

324.40 tax incl.

€268.10 excl. VAT (incl. all environmental contributions)

On order: delivered from 10/10/2026

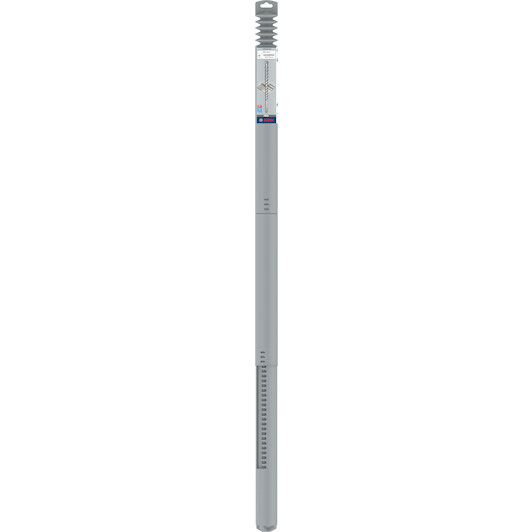

blister

Ordered before 20:00 - delivered as of 10/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

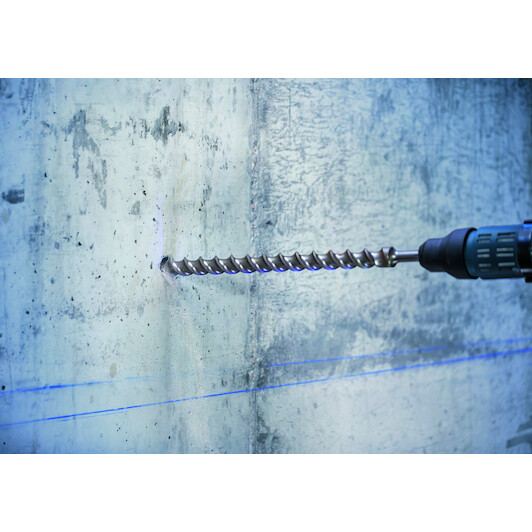

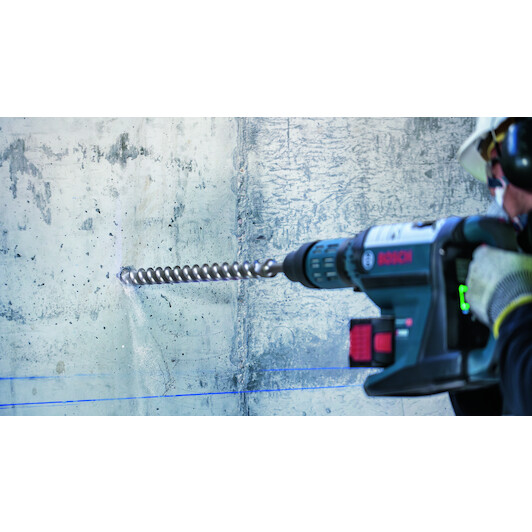

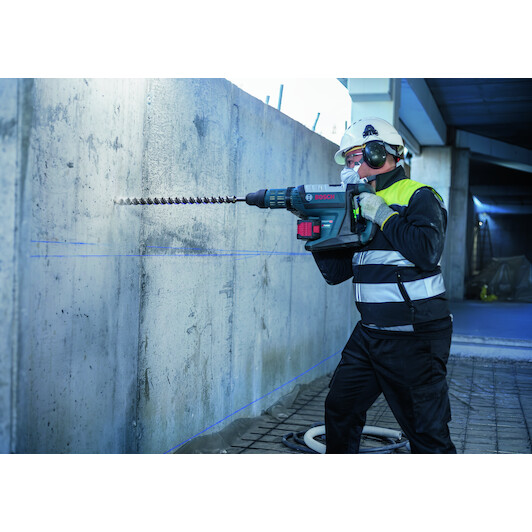

Deep drilling in reinforced concrete

Practical benefits

Solid four-cutter carbide head: The robust 4-cutter head prevents jamming and penetrates hard concrete and rebar smoothly.
Dependable Bosch SDS-Max shank: The SDS-Max fitting delivers optimal impact transfer from your rotary hammer directly to the tip.
Extended working drilling reach: A working length of 1200 mm gives you the capacity to create deep penetrations cleanly.

In a nutshell

The right choise for

With the Bosch SDS-MAX-7 hammer drill bit, you can drill deep penetrations through thick walls and solid building materials with ease. Thanks to the 1200 mm working length, you penetrate deep structural walls without requiring extensions. The solid carbide 4-cutter head prevents jamming when striking rebar, delivering consistent speed in reinforced concrete, masonry, limestone, and natural stone. Its SDS-Max shank transfers high impact energy directly from your rotary hammer to the 40 mm drill tip. Additionally, the built-in wear indicator lets you verify that hole diameters remain within exact tolerances for secure metal anchor placement.

Product information FAQ

€324.40

tax incl.

Key features according to our expert

Diameter: 40 mm
Drill bit type: Hammer drill bit
Overall length: 1320 mm
Shank size: 18 mm
Shank type: SDS-max
Material (drill bit): Carbide tip
Number of cutting edges: 4 ea
Cutting length: 1200 mm

Product description

Hammer drill bit SDS-Max-7, 40 x 1200 x 1320 mm
Highest drilling speeds
Drill bit SDS max-7 is ideally suited to high-speed drilling
Solid carbide S cutter and curved side cutters allow drilling at very high speeds

Advantages

Highest drilling speeds - The SDS max-7 drill bit is ideally suited for drilling at high speeds.
The solid carbide S-mill and curved side cutters enable drilling at very high speeds.
The version with spirals for virtually vibration-free drilling ensures the best power transfer and enables faster drilling.
This drill bit is suitable for drilling in concrete and reinforced concrete, limestone and masonry.
This drill fits rotary hammers with an SDS max holder.
The wear indicator shows whether the diameter of the hole is within tolerance, which is necessary to accurately set the metal anchor.
The quality mark of the PGM Masonry Drill Bit Association Board on this drill bit guarantees that it is within close tolerances, drills very accurately and does not slip while drilling fixing holes.
Fits all SDS max rotary hammers.

All Features

Diameter: 40 mm
Drill bit type: Hammer drill bit
Overall length: 1320 mm
Shank size: 18 mm
Shank type: SDS-max
Material (drill bit): Carbide tip
Number of cutting edges: 4 ea
Cutting length: 1200 mm
Overall length (l2) mm: 1320
Shaft diameter (d) mm: 18
Diameter (d) mm: 40
Useful length (l1) mm: 1200

Brand BOSCH
02221808
EAN 3165140565875
Supplier number BOSCH 2608586805

Frequently asked questions about this product

Answered by specialists

What materials is this hammer drill bit suitable for?: This bit is suitable for drilling in (reinforced) concrete, masonry, limestone, and natural stone.
Which power tools are compatible with this drill bit?: The bit fits all rotary hammers equipped with an SDS-max tool holder.
What is the usable drilling depth of this SDS-max-7 bit?: The working length is 1200 mm, with a total length of 1320 mm and a diameter of 40 mm.
Is this drill bit suitable for drilling through reinforced concrete?: Yes, the solid carbide 4-cutter head prevents jamming when hitting rebar.
How do you verify if drilled holes are within tolerance for metal anchors?: The visible wear indicator shows whether the hole diameter is still within tolerance for secure fixings.
