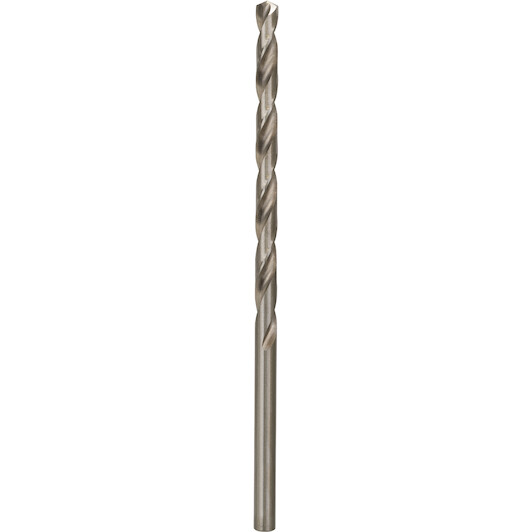

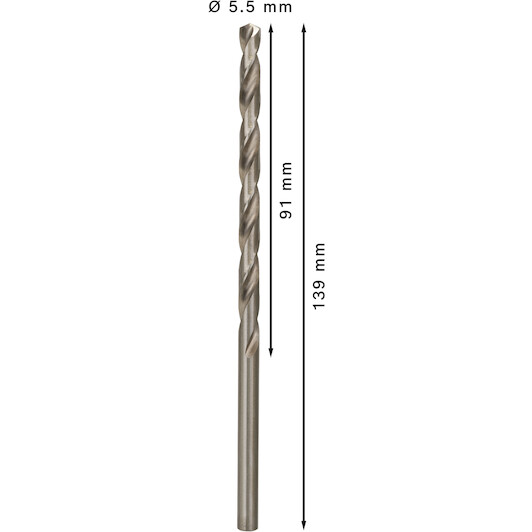

Metal drill bit HSS-G, DIN 340, 5.5 x 91 x 139 mm 5x
Drilling deep holes with maximum precision
Long HSS spiral drill ground ensures maximum precision when drilling deep holes in metal
Thanks to the extra length, this drill bit can drill deeper holes
Advantages
Deep holes with maximum precision - The long HSS spiral drill bit ground ensures maximum precision when drilling deep holes in metal.
Thanks to its extra length, this drill bit can drill deeper holes.
The self-centring, 135-degree split tip combines active cutting action with perfect centring without running, delivering maximum precision.
The split tip makes pre-punching or pre-drilling up to 10 mm unnecessary.
This precision ground HSS (High-Speed Steel) drill bit offers up to 40% higher drilling speed and up to 50% lower feed pressure than standard ground HSS drills with chisel edges.
This drill bit is designed for drilling deep holes in alloyed and unalloyed steel, cast steel, cast iron, sintered iron, temper cast iron, non-ferrous metals and hard plastics.
The drill bit has a cylindrical shank (drill bit and shank have the same diameter) and is intended for use in drill stands and drill/screw machines The long HSS spiral drill bit ground is produced in accordance with DIN 340.
The drill bit is type N (groove angle) with a tip of 135 degrees and a diameter tolerance of h8.

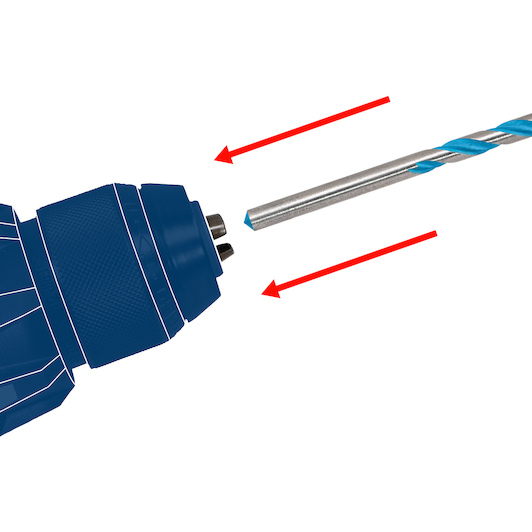

Cylindrical shank compatible with three-claw drill chucks.
