Scope of delivery

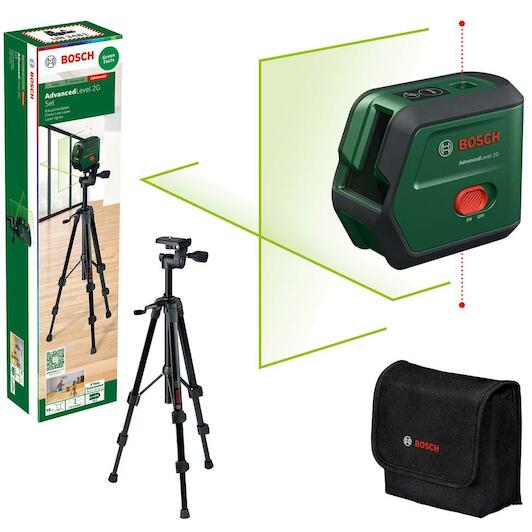

- TT 120 tripod (0 603 691 200)
- 1 x battery BA 3.6V 2.0Ah
- Storage case
Product description
Brings your ideas precisely to the wall

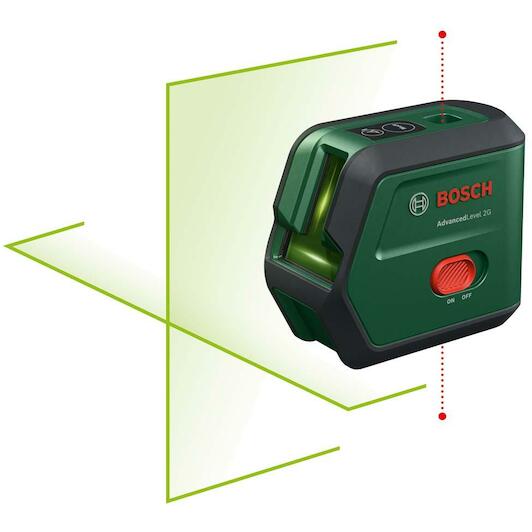

- Precise projection of a laser cross with additional lead points above and below thanks to the self-levelling function
- Green laser lines: up to four times better visibility, even in bright light
- Slope function for working outside the self-levelling range with diagonal laser lines
- High-quality, bright laser diodes with an accuracy of ± 0.4 mm/m for precise results

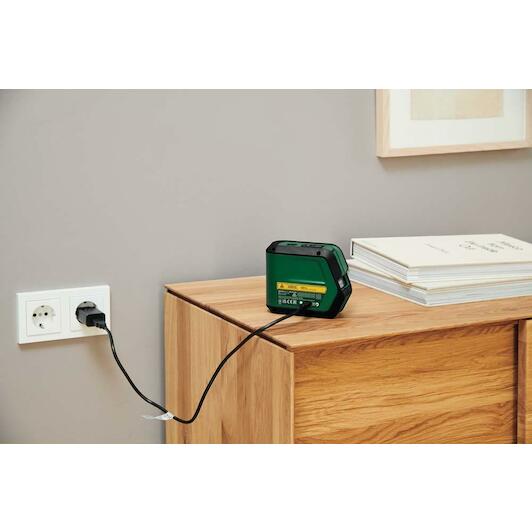

- Integrated 3.6 V Li-Ion battery with possibility of charging via USB-C® even during use
Key features according to our expert
-
Laser type: Cross line laser
-
Type of system case: Not applicable
-
Max. range: 15 m
-
With tripod: Yes
-
Tripod thread: 1/4"
-
Self-levelling range: 4,0000 °
-
Weight: 0,76 kg
-
Projection (laser beams): 1 horizontal, 1 vertical
-
Supplied in: Case
-
Laser class: Class 2
-
Accuracy: 0,4 mm/m
-
Colour (laser beams): Green
Specifications / All features
- Laser type
- Cross line laser
- Type of system case
- Not applicable
- Max. range
- 15 m
- With tripod
- Yes
- Tripod thread
- 1/4"
- Self-levelling range
- 4,0000 °
- Weight
- 0,76 kg
- Projection (laser beams)
- 1 horizontal, 1 vertical
- Supplied in
- Case
- Laser class
- Class 2
- Accuracy
- 0,4 mm/m
- Colour (laser beams)
- Green
- Electrical power supply
- 1 x 3.6 V Li-Ion
- Laser diode laser tip
- 650 - 660 nm
- Working range, approx.
- 15 m
- Battery type
- 3.6 V Li-Ion
- Machine dimensions (length x width x height)
- 600 x 142 x 101 mm
- Accuracy**
- ± 0.4 mm/m
- Usage level
- Advanced
- Laser diode, laser tip of
- 650 Nm nm
- Working range laser line
- 15 m
- Laser diode, laser line of
- 515 Nm nm
- Laser diode, laser line up to
- 530 Nm nm
- Opening angle
- 100 °
- Levelling range
- ± 4 °
- Laser diode laser line
- 515 - 530 nm
- Charging time
- 4 h
- Self-levelling time, typ.
- 4 s
- Battery capacity
- 2 Ah
- Battery voltage
- 3,6 V
- Laser diode, laser tip to
- 660 Nm nm
