BOSCH GBH 3-28 DRE rotary hammer with SDS-Plus 800 W in case - 061123A000

BOSCH
Supplier number: BOSCH 061123A000 | EAN 3165140471220

Variant

BOSCH GBH 3-28 DFR rotary hammer with SDS-Plus 800 W in case - 061124A000 BOSCH GBH 3-28 DFR rotary hammer with SDS-Plus 800 W in case - 061124A000 BOSCH GBH 3-28 DRE rotary hammer with SDS-Plus 800 W in case - 061123A000 BOSCH GBH 3-28 DRE rotary hammer with SDS-Plus 800 W in case - 061123A000 BOSCH GBH 3-28 DFR rotary hammer with SDS-Plus 800 W in L-Boxx 136 - 061124A004 BOSCH GBH 3-28 DFR rotary hammer with SDS-Plus 800 W in L-Boxx 136 - 061124A004
Recommended Retail Price €530.43
397.88 tax incl.
€328.82 excl. VAT (incl. all environmental contributions)
On stock - immediately available | we have 3 products in stock.

✆ Talk to a specialist

Perfect combination

Efficient drilling with the Bosch rotary hammer

Practical benefits
  • High impact drilling power: With 3.1 J of impact energy, you drill holes up to 28 mm in solid concrete effortlessly.
  • Effective active vibration control: The integrated anti-vibration system reduces strain so you can chisel and drill comfortably for longer periods.
  • Balanced and compact design: Its compact L-shaped design gives you balanced weight distribution and easy handling in tight spaces.

In a nutshell

The right choise for

With the Bosch gbh 3-28 DRE, you tackle demanding drilling and light chiselling tasks in concrete and masonry with ease. Its 800 w motor delivers 3.1 j of impact energy, allowing you to drill holes up to 28 mm in concrete effortlessly. The compact L-shaped design and 3.5 kg weight provide balanced handling and great control, even when working in confined spaces. Built-in anti-vibration technology effectively dampens vibrations, keeping fatigue to a minimum during prolonged use. The SDS-plus chuck ensures fast, keyless bit changes. This rotary hammer comes ready for the jobsite with an auxiliary handle, a 210 mm depth stop, and a durable carrying case.



Product information Accessories FAQ
€397.88
In stock - tax incl.

Product information

Key features according to our expert

  • Input power: 800 W
  • Anti-vibration system: Yes
  • Tool holder type: SDS-plus
  • Weight: 3,5 kg
  • Type of system case: Not applicable
  • Vibration value (drilling in concrete): 14,5 m/s²
  • Vibration value (chiselling in concrete): 9,7 m/s²
  • Supplied in: Case
  • With dust extraction system: No
  • Max. drilling diameter (concrete): 28 mm
  • Max. impact rate: 4000 /min.
  • Min. impact rate: 0 /min.
  • Forward and reverse rotation: Yes
  • Impact energy: 3,1 J
  • With keyless chuck: No

Scope of delivery

  • Depth stop 210 mm and handle

Product description

  • Drill hammer GBH 3-28 DRE (Depth stop 210 mm and handle)
  • Fast drilling progress and 20% higher chiselling power than other rotary hammers in its class
  • Low vibration (only 13 m/s²) for pleasant working due to Bosch-Vibration-Control
  • Balanced weight distribution through L-construction for pleasant working

Advantages

  • The drill hammer GBH 3-28 DRE from Bosch Professional - Highest power with low vibration.

All Features

Input power
800 W
Anti-vibration system
Yes
Tool holder type
SDS-plus
Weight
3,5 kg
Type of system case
Not applicable
Vibration value (drilling in concrete)
14,5 m/s²
Vibration value (chiselling in concrete)
9,7 m/s²
Supplied in
Case
With dust extraction system
No
Max. drilling diameter (concrete)
28 mm
Max. impact rate
4000 /min.
Min. impact rate
0 /min.
Forward and reverse rotation
Yes
Impact energy
3,1 J
With keyless chuck
No
Tool holder
SDS plus
Vibration emission value ah (chiselling in concrete)
9.7 m/s²
Max. drill diameter masonry, box drilling
82 mm
Nominal power consumption
800 W
Impact energy (according to epta 05/2016)
3,1 J
Max. drill diameter wood
30 mm
Number of strokes at rated speed
0 - 4000 min-1
Vibration emission value ah (hammer drilling in concrete)
14.5 m/s²
Uncertainty k (hammer drilling in concrete)
1.5 m/s²
Drill diameter concrete, hammer drills
4 - 28 mm
Uncertainty k (chiselling in concrete)
1.5 m/s²
Max. drilling diameter in metal
13 mm
Opt. assortment concrete, hammer drills
12 - 18 mm
Rated speed
0 - 900 min-1

Accessories

View more accessories (108)

Frequently asked questions about this product

Answered by specialists
What applications is this rotary hammer suitable for?
It is designed for drilling, hammer drilling, and chiselling in concrete and masonry, drilling up to 28 mm in concrete.
What type of tool holder does this machine use?
It features an SDS-plus tool holder for quick, keyless changes of drill bits and chisels.
Does this model include a keyless chuck?
No, this unit is equipped with a fixed SDS-plus chuck and does not include a quick-change keyless chuck.
How does the anti-vibration system help during operation?
The anti-vibration system reduces vibration levels to minimise fatigue during extended drilling or chiselling.
What is included in the scope of delivery?

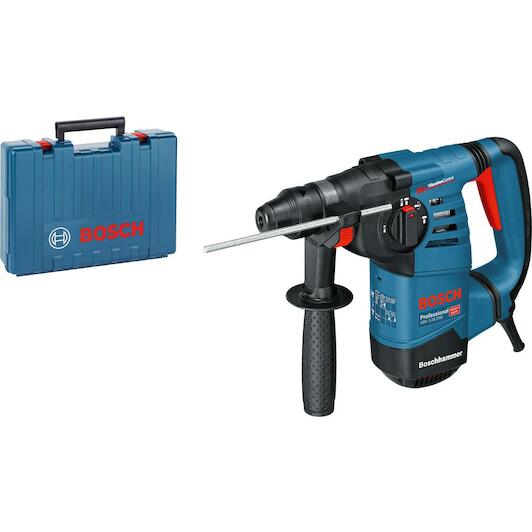

You receive the Bosch GBH 3-28 DRE along with an auxiliary handle, a 210 mm depth stop, and a carrying case.
