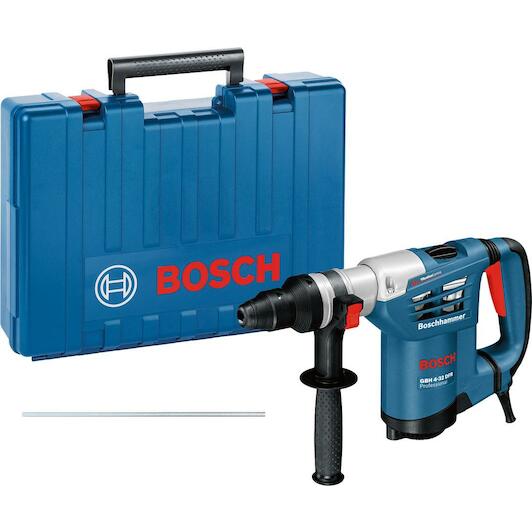

Scope of delivery
- Depth stop 310 mm, handle and change holder SDS-plus
Product description

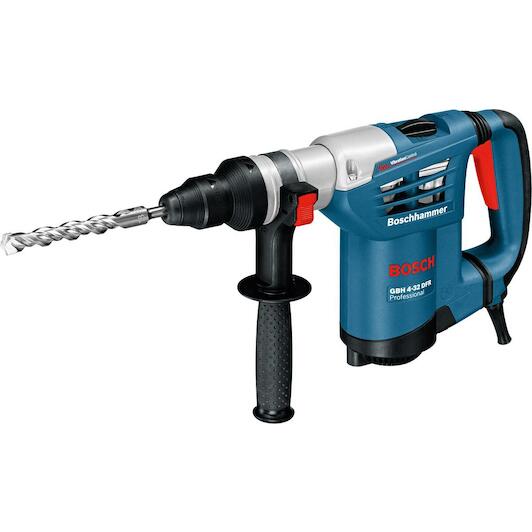

- Drill hammer GBH 4-32 DFR (Depth stop 310 mm, handle and chuck SDS-plus)
- Versatile use for chiselling and drilling work as well as working with the hollow drill chuck
- Drills up to 30% faster (Ø 25 mm) than other tools in its class
- Low vibration levels of only 10 m/s² thanks to Bosch Vibration-Control so that physical effort is greatly reduced
Advantages
- The rotary hammer GBH 4-32 DFR from Bosch Professional - The fastest multi-hammer in the 4 kg class.
Key features according to our expert
-
Power: 900 W
-
Vibration level (chiselling in concrete): 11,4 m/s²
-
Tool holder type: SDS-plus
-
Weight: 4,7 kg
-
Supplied in: Case
-
Vibration level (drilling in concrete): 12,7 m/s²
-
Type of system case: Not applicable
-
Max. drilling diameter (concrete): 32 mm
-
Anti-vibration system: Yes
-
Max. impact rate: 3600 /min.
-
Min. impact rate: 0 /min.
-
Forward and reverse rotation: Yes
-
Impact energy: 4,2 J
Specifications / All features
- Power
- 900 W
- Vibration level (chiselling in concrete)
- 11,4 m/s²
- Tool holder type
- SDS-plus
- Weight
- 4,7 kg
- Supplied in
- Case
- Vibration level (drilling in concrete)
- 12,7 m/s²
- Type of system case
- Not applicable
- Max. drilling diameter (concrete)
- 32 mm
- Anti-vibration system
- Yes
- Max. impact rate
- 3600 /min.
- Min. impact rate
- 0 /min.
- Forward and reverse rotation
- Yes
- Impact energy
- 4,2 J
- Drill diameter concrete, hammer drills
- 6 - 32 mm
- Max. drill diameter masonry, box drilling
- 90 mm
- Nominal power consumption
- 900 W
- Impact energy (according to epta 05/2016)
- 4,2 J
- Vibration emission value ah (hammer drilling in concrete)
- 12.7 m/s²
- Max. drill diameter wood
- 32 mm
- Number of strokes at rated speed
- 0 - 3600 min-1
- Uncertainty k (hammer drilling in concrete)
- 1.5 m/s²
- Tool holder
- SDS plus
- Uncertainty k (chiselling in concrete)
- 1.5 m/s²
- Max. drilling diameter in metal
- 13 mm
- Opt. assortment concrete, hammer drills
- 14 - 25 mm
- Rated speed
- 0 - 800 min-1
- Vibration emission value ah (chiselling in concrete)
- 11.4 m/s²
