BOSCH GBM 50-2 magnetic core drill 1200 W in case - 06011B4020

BOSCH
Supplier number: BOSCH 06011B4020 | EAN 3165140937672
Recommended Retail Price €1,995.74
1,518.48 tax incl.
€1,254.94 excl. VAT (incl. all environmental contributions)
On order: delivered from 13/10/2026

✆ Talk to a specialist

Perfect combination

Powerful metal drilling with high precision

Practical benefits
  • Bosch ensures fast alignment: The integrated laser guide helps you quickly set up and target your drill mark on steel.
  • Strong magnetic base grip: A clamping force of 14000 N keeps the tool firmly secured to heavy metal workpieces.
  • Smart motor load protection: The intelligent service display monitors carbon brush wear and prevents motor overheating during heavy drilling tasks.

In a nutshell

The right choise for

With the Bosch gbm 50-2 magnetic core drill, you drill cleanly, quickly, and with total stability into structural steel and thick metal. Its robust 1200 w motor paired with a 14000 n magnetic base delivers secure clamping on ferrous surfaces, even at challenging angles. The integrated target laser ensures fast and pinpoint alignment for holes up to 50 mm in diameter. An intelligent service display monitors motor load and carbon brush wear to prevent overheating and avoid unexpected downtime. Delivered in a sturdy carrying case with a cooling tank, Weldon adapter, MT2/MT1 reduction sleeve, and accessories, you have everything required for heavy-duty metal fabrication.



Product information Accessories FAQ
€1,518.48
tax incl.

Product information

Key features according to our expert

  • Input power: 1200 W
  • Tool holder type: Morse taper; Weldon
  • Max. core drilling diameter: 50 mm
  • Clamping force magnetic base: 14000 N
  • Supplied in: Case
  • Type of system case: Not applicable
  • Weight: 14,7 kg
  • Tool holder size: MK2; 3/4"

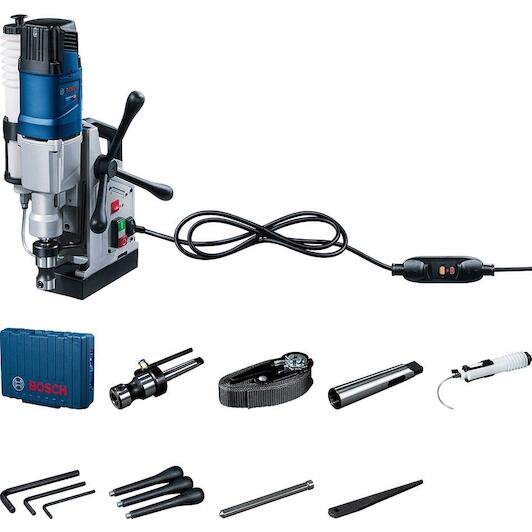

Scope of delivery

  • Drill drift, Allen key (3/4/6mm), safety strap, pilot pin, reduction sleeve, adapter for annular cutter, cooling tank

Product description

  • Drill GBM 50-2 (Drill drift, Allen spanner (3/4/6mm), safety strap, pilot pin, reduction sleeve, adapter for annular cutter, cooling tank)
  • Load indicator ensures long machine life and service display informs when carbon brushes need changing
  • Laser technology for quick setting; powerful motor ensures precise and efficient drilling; automatic power-off adds safety
  • High magnetic force ensures stable drilling in any direction

Advantages

  • The ideal solution for precise, efficient and safe drilling in metal

All Features

Input power
1200 W
Tool holder type
Morse taper; Weldon
Max. core drilling diameter
50 mm
Clamping force magnetic base
14000 N
Supplied in
Case
Type of system case
Not applicable
Weight
14,7 kg
Tool holder size
MK2; 3/4"
Drill diameter steel
50 mm
Nominal power consumption
1200 W
No load speed, 2nd position
100 - 510 min-1
No load speed, 1st position
50 - 250 min-1
Uncertainty k
3 dB
Sound power level
110 dB(A)
Sound pressure level
90 dB(A)
Voltage, electric
230 V

Accessories

Frequently asked questions about this product

Answered by specialists
What tool holder and maximum drilling diameter does the GBM 50-2 support?
The tool features an MT2 spindle and includes an adapter for 3/4" Weldon shanks. The maximum drilling diameter with annular cutters is 50 mm.
How strong is the magnetic clamping force?
The magnetic base delivers a clamping force of 14000 N, ensuring secure and stable positioning on ferrous metal surfaces.
Is a cooling system included with the machine?
Yes, an external coolant tank with a mounting bracket is included to provide direct lubrication and cooling while drilling.
What safety and monitoring features are integrated?
The GBM 50-2 features a target laser, a load indicator to prevent overheating, a carbon brush service display, and a PRCD circuit breaker.
What items are included in the scope of delivery?
You receive a carrying case, MT2 drill drift, hex keys (3, 4, and 6 mm), safety strap, pilot pin, MT2/MT1 reduction sleeve, annular cutter adapter, and coolant tank.
