BOSCH GCL 12V-50-22 CG cordless cross line laser/dot laser green in bag + tripod (4x AA batteries) - 0601066S01

Recommended Retail Price €621.49
472.73 tax incl.
€390.69 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

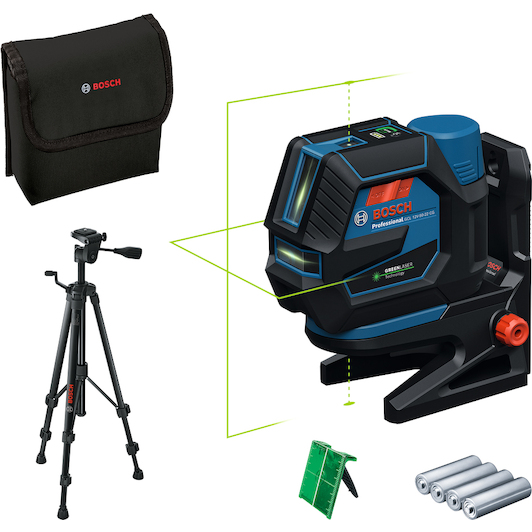

Scope of delivery

  • AA1 alkaline battery adapter (1 608 M00 C1B)
  • 4 x 1.5 V LR6 battery (AA)
  • Construction stand BT 150 Professional (0 601 096 B00)
  • Bag
  • Laser target plate
  • Rotary holder RM 20 Professional (1 600 A03 1YN)

Product description

Robust 12V combination laser for reliable alignment

  • Experience peace of mind with IP65 dust and water resistance and a robust rubber-reinforced housing

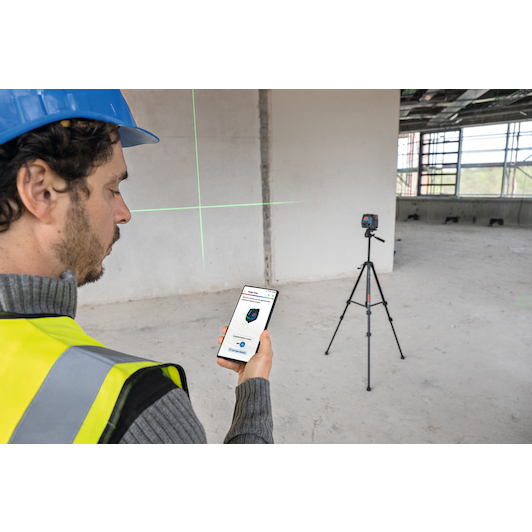

  • Save time and increase accuracy with the Levelling Remote app for hands-free laser line control
  • No interruptions due to the dual power source (Dual Power), which allows switching between a 12V Li-Ion battery and AA alkaline batteries

Product highlights

The GCL 12V-50-22 CG Professional is the reliable partner for precision jobs. With a robust, rubber-reinforced housing and IP65 rating, it is made to withstand dust and water, so you can concentrate on the job at hand. The Levelling Remote app for remote control of laser lines and points reduces set-up time and allows you to spend more time on the job. Moreover, the dual power source (Dual Power) allows you to switch between the 12V Li-Ion battery and AA alkaline batteries as a back-up power source, so there are no interruptions due to a flat battery or battery and work can continue seamlessly.

Equipment and application

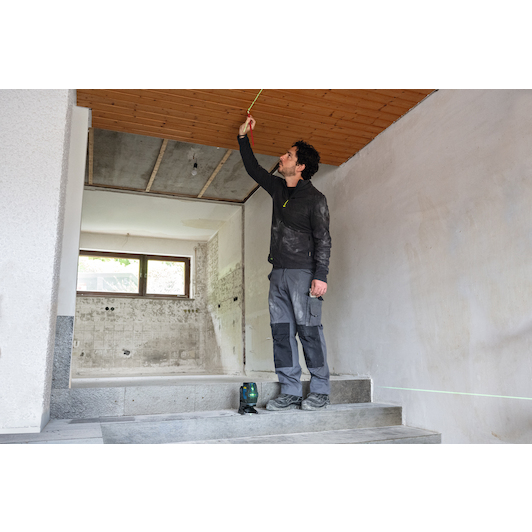

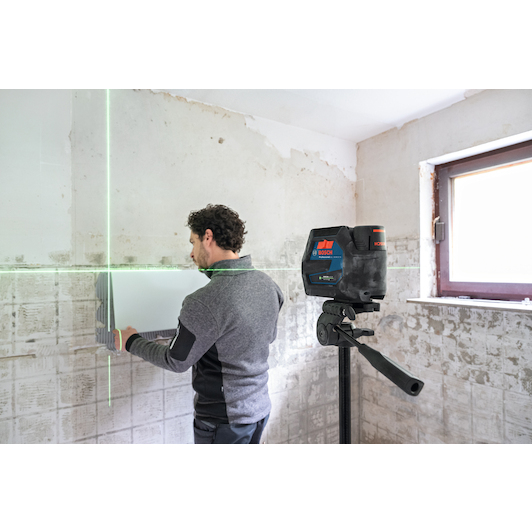

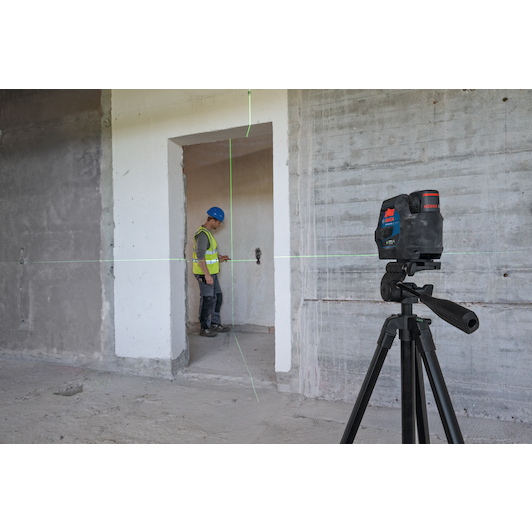

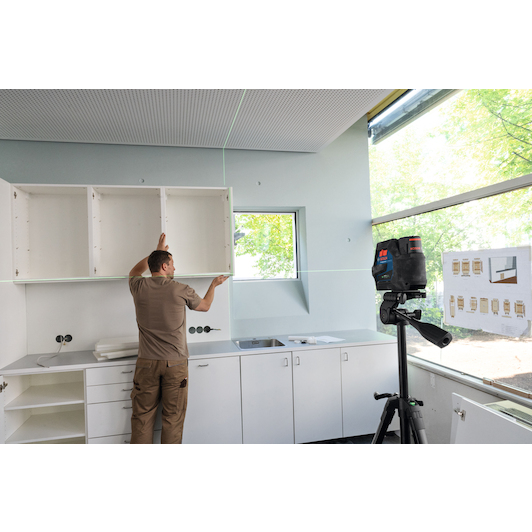

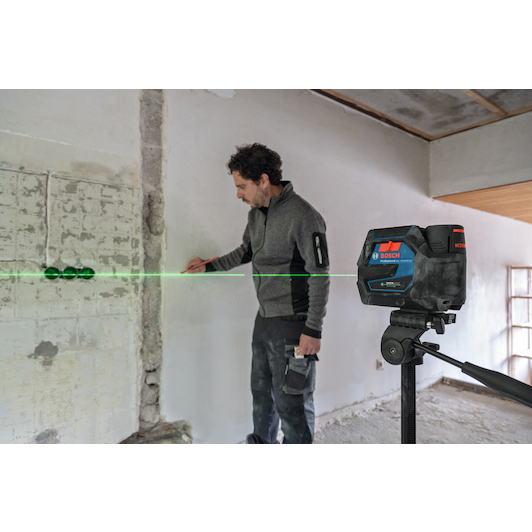

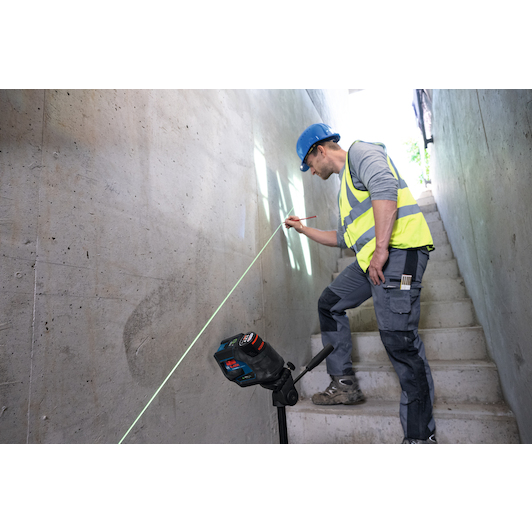

The GCL 12V-50-22 CG is designed for easy and intuitive operation, with a single mode button, battery indicator and a U-shaped laser window for a wider opening angle for the horizontal line. It is perfect for professionals who need precise alignment. Whether socket outlets need to be aligned, drywall installed or downlights transferred by lead points from the floor to the ceiling, the GCL 12V-50-22 CG Professional makes the job easier and more efficient.

Additional information

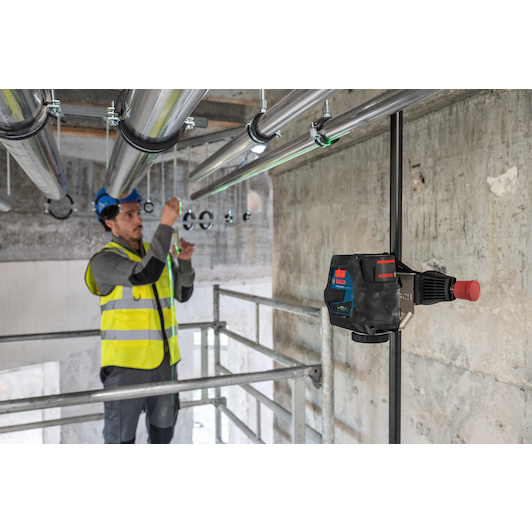

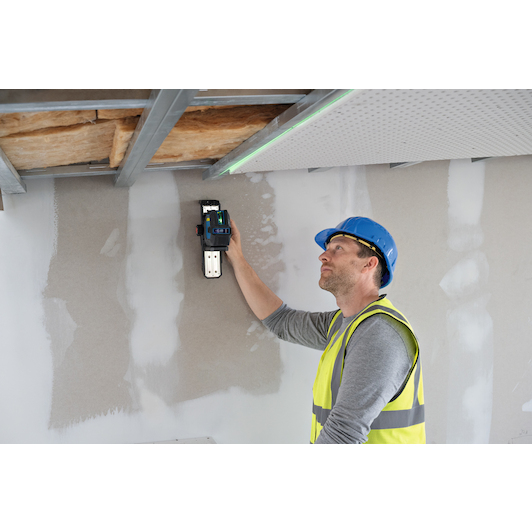

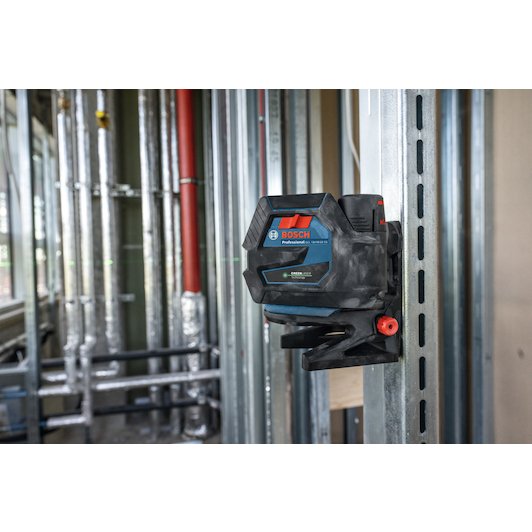

To start work immediately, the laser receiver mode of the GCL 12V-50-22 CG is always activated. With the optional laser receiver LR 7 Professional, the working range can be extended to up to 50 metres. The green laser lines and points offer up to four times better visibility than red lines, so the work is always perfect. The laser lines can easily be accurately positioned around lead points with the holder RM 20 Professional.

Key features according to our expert
  • Laser type: Cross line laser
  • Type of system case: Not applicable
  • Max. range: 25 m
  • With tripod: Yes
  • Projection (laser beams): 1 horizontal, 1 vertical
  • Self-levelling range: 4,0000 °
  • Weight: 0,59 kg
  • Tripod thread: 1/4"
  • Supplied in: Case
  • Laser class: Class 2
  • Accuracy: 0,3 mm/m
  • Colour (laser beams): Green
  • Max. range with receiver: 50 m
  • Protection class IP: IP65
Specifications / All features
Laser type
Cross line laser
Type of system case
Not applicable
Max. range
25 m
With tripod
Yes
Projection (laser beams)
1 horizontal, 1 vertical
Self-levelling range
4,0000 °
Weight
0,59 kg
Tripod thread
1/4"
Supplied in
Case
Laser class
Class 2
Accuracy
0,3 mm/m
Colour (laser beams)
Green
Max. range with receiver
50 m
Protection class ip
IP65
Colour laser line
green
Projection
2 lines / 2 points
Operating time, max.
8 h (Li-Ion) and 4 h (4 x AA) in cross-line and point mode min.
Operating range with receiver
50 m
Levelling accuracy
± 0.3 mm/m
Compatible laser receivers
LR 7
Working range laser points, max.
10 m (top)|10 m (bottom) m
Electrical power supply
12 V Li-Ion battery|4 x 1.5-V-LR6 (AA)
Working range, approx.
up to enet 25 m
Operating temperature, up to
45 °C
Storage temperature, from
-20 °C

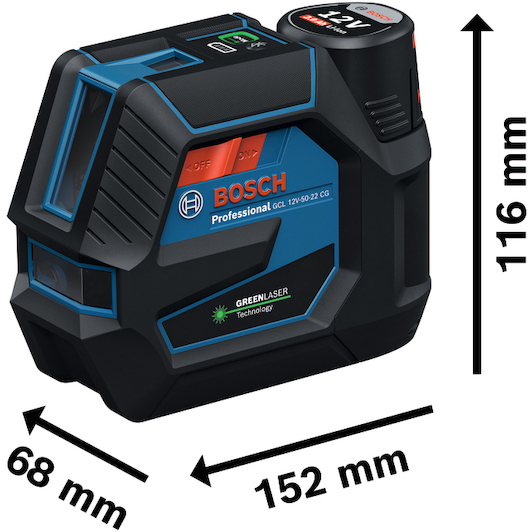

Length x width x height
152 x 68 x 116 mm
Lead point accuracy
± 0.7 mm/m
Colour of lead points
green
Self-levelling time, typ.
4 s
Operating temperature, from
-10 °C
Dust and splash water protection
IP65 (except battery and battery adapter)
Storage temperature, up to
70 °C
Battery voltage
12 V
Levelling range
± 4 °
Working range, value
25 m
