BOSCH GLL 12V-100-33 CG cordless cross line laser green in bag (4x AA batteries) - 0601065400

BOSCH
Supplier number: BOSCH 0601065400 | EAN 4053423303285

Variant

BOSCH GLL 12V-100-33 CG cordless cross line laser green in bag (4x AA batteries) - 0601065400 BOSCH GLL 12V-100-33 CG cordless cross line laser green in bag (4x AA batteries) - 0601065400 BOSCH GLL 12V-100-33 CG cordless cross line laser green in L-BOXX 136 (1x 2.0Ah battery + charger) - 0601065401 BOSCH GLL 12V-100-33 CG cordless cross line laser green in L-BOXX 136 (1x 2.0Ah battery + charger) - 0601065401
Recommended Retail Price €776.37
588.53 tax incl.
€486.39 excl. VAT (incl. all environmental contributions)
On order: delivered from 14/10/2026

✆ Talk to a specialist

Is this laser right for you?

Answer a few questions and see if this laser is a perfect match for you.

Bosch PRODEALS 2026

Purchase a participating Bosch Professional MT Li-Ion measuring tool and receive a matching battery FREE! Promotion valid from 01.09.2026 to 31.12.2026.

How does it work?

  • Purchase a participating Bosch Professional MT Li-Ion measuring tool during the promotion period and receive the matching battery free of charge.
  • Upload your proof of purchase via the Bosch PRO360 app before 31 January 2027 to claim your free battery.
  • The promotion is valid from 01.09.2026 to 31.12.2026.
  • Bosch PRODEALS are recognisable by the promotion label on the product page. Click the label to view all participating items.

Bosch PRODEALS 2026 - Purchase a measuring tool and receive a free battery!

Accurate and robust leveling with the GLL 12V-100-33 CG

Practical benefits
  • Three 360° laser lines: The GLL 12V-100-33 CG projects one horizontal and two vertical 360° laser lines for simultaneous leveling in large spaces.
  • Enhanced jobsite durability: The robust design with rubber-reinforced housing and IP65 rating ensures reliability in tough working conditions.
  • Flexible power supply options: You experience uninterrupted work with the flexibility to switch between a 12V Li-Ion battery and AA alkaline batteries.

In a nutshell

The right choise for

The Bosch gll 12V-100-33 cg cross-line laser provides you with accurate and robust leveling for every job. With three 360° green laser lines, you effortlessly project one horizontal and two vertical lines, ideal for simultaneous alignment in large spaces. The robust design with rubber housing and IP65 protection ensures reliability on the jobsite, even under tough conditions. You work uninterrupted thanks to the flexible power supply: use a 12V Li-Ion battery or the included aa adapter with four aa batteries. The accuracy of 0.3 mm/m and a maximum range of 100 meters with a receiver make this an essential tool for professional installers and contractors.



Product information Accessories FAQ
€588.53
tax incl.

Product information

Key features according to our expert

  • Laser type: Cross line laser
  • Type of system case: Not applicable
  • Max. range: 30 m
  • Tripod thread: 1/4"; 5/8"
  • Projection (laser beams): 3x 360°, 1 horizontal, 2 vertical
  • Self-levelling range: 4,0000 °
  • Weight: 0,96 kg
  • With tripod: No
  • Supplied in: Case
  • Laser class: Class 2
  • Accuracy: 0,3 mm/m
  • Colour (laser beams): Green
  • Max. range with receiver: 100 m
  • IP rating: IP65

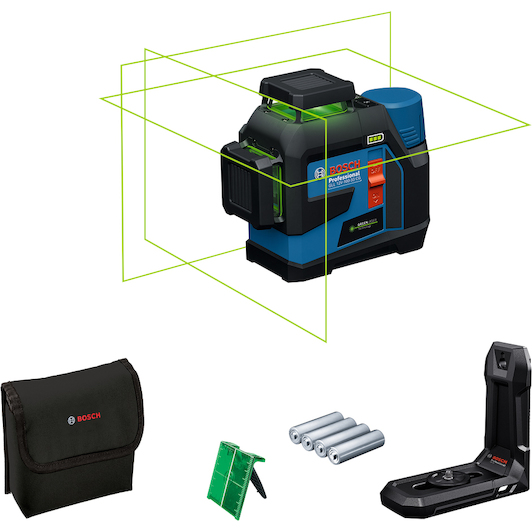

Scope of delivery

  • AA1 alkaline battery adapter (1 608 M00 C1B)
  • 4 x 1.5 V LR6 battery (AA)
  • Bag
  • Laser target plate

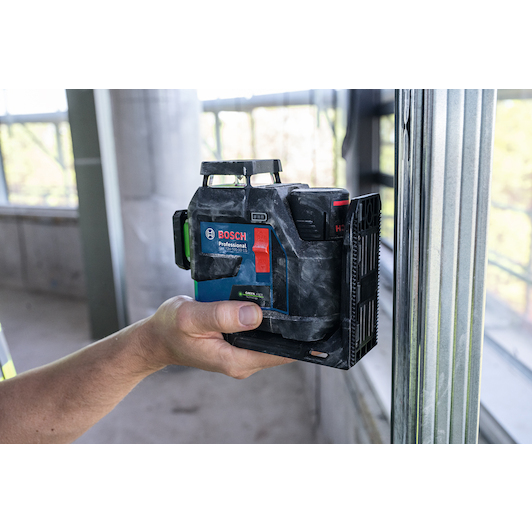

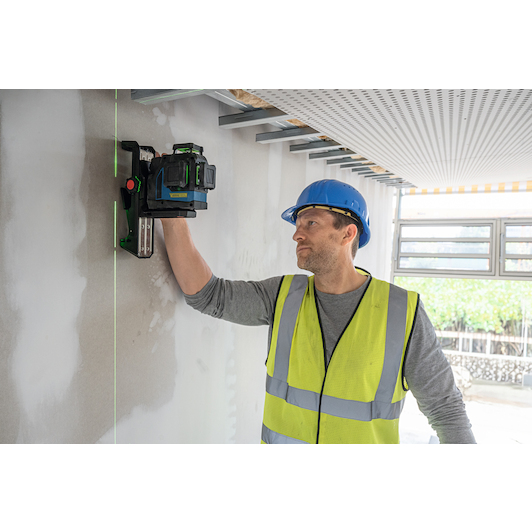

  • Universal holder LB 10 Professional

Product description

Robust and intuitive 12V line laser for effortless alignment

  • Robust design with IP65 rating and rubber-reinforced housing ensures reliability under tough working conditions

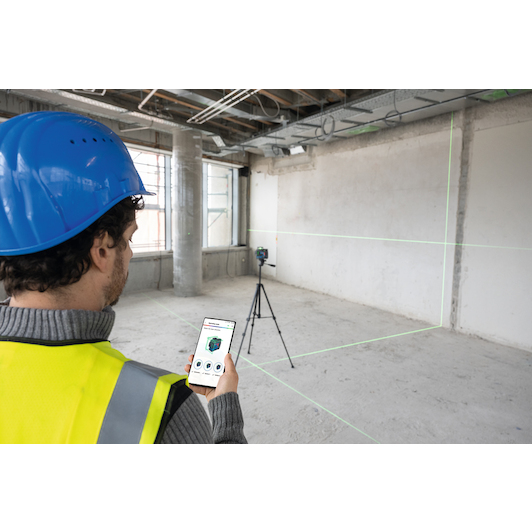

  • Hands-free line control of the three 360° laser lines via the Levelling Remote app for more accurate and efficient work
  • Experience uninterrupted work with the flexibility to switch between a 12V Li-Ion battery and AA alkaline batteries, eliminating downtime due to a flat battery or battery

Product highlights

The GLL 12V-100-33 CG Professional is a robust line laser that offers simple and intuitive operation. It is designed to withstand rugged site conditions with its rubber-reinforced housing and laser windows and an IP65 rating for dust and water resistance. The Levelling Remote app allows remote control of the three 360° laser lines for greater accuracy and efficiency. Dual power source (Dual Power) offers the flexibility to switch between the 12V Li-Ion battery and AA alkaline batteries as a back-up power source.

Equipment and application

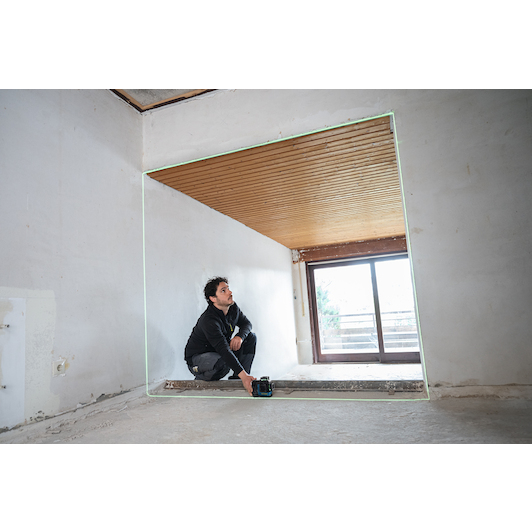

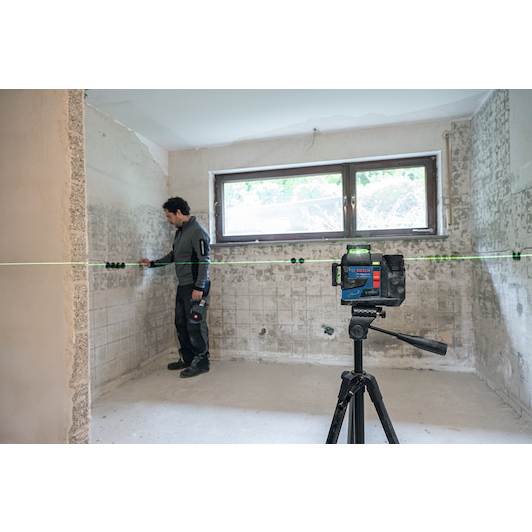

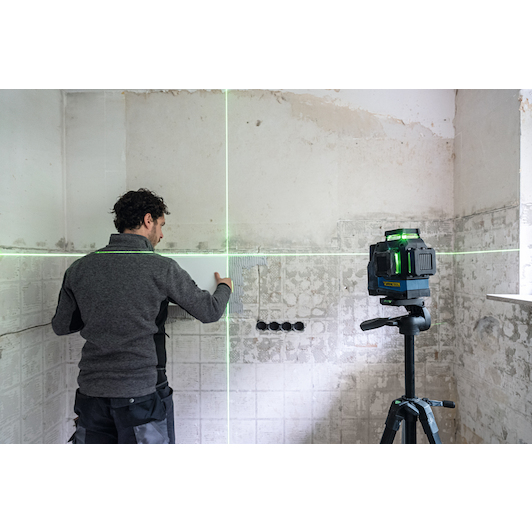

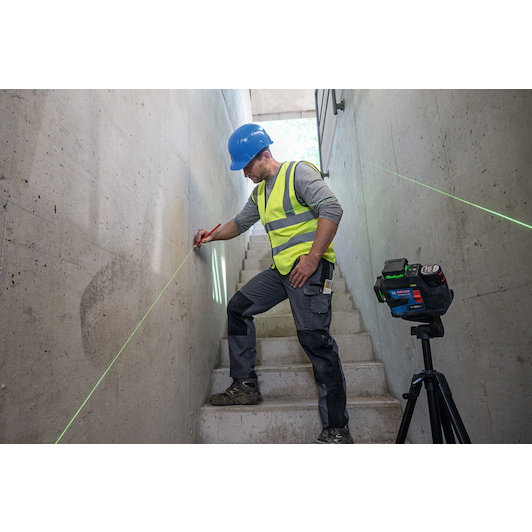

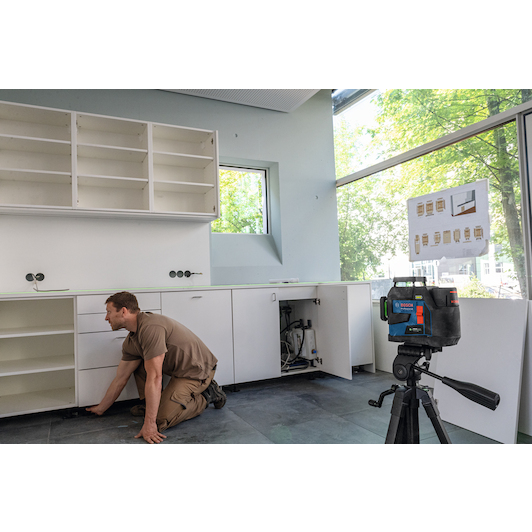

Benefit from the easy operation of the GLL 12V-100-33 CG with a new keypad design for individual laser line selection and a large battery indicator for convenience. The line laser is perfect for aligning walls and partitions, laying tiles and floors and building stairs.

Additional information

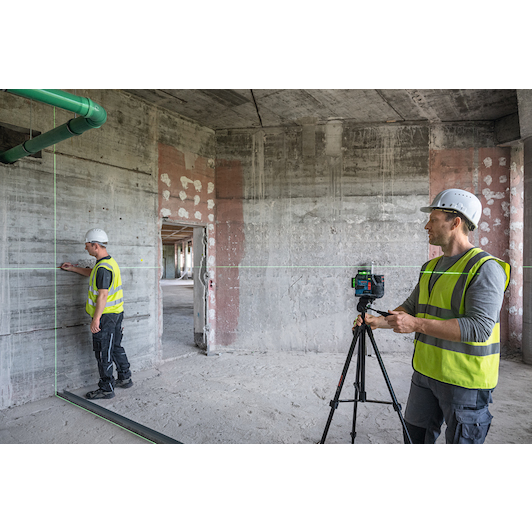

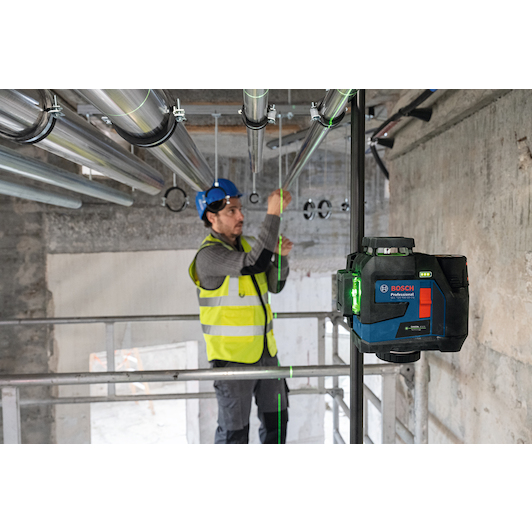

With three 360° lines, this laser can simultaneously level horizontally and vertically, making it easy to set up large spaces with just one tool. To start work immediately, the GLL 12V-100-33 CG's laser receiver mode is always activated. With the optional laser receiver LR 7 Professional, the working range can be extended to up to 100 metres (radius). The bright green laser lines offer up to four times better visibility than red lines, ensuring precision on every job.

All Features

Laser type
Cross line laser
Type of system case
Not applicable
Max. range
30 m
Tripod thread
1/4"; 5/8"
Projection (laser beams)
3x 360°, 1 horizontal, 2 vertical
Self-levelling range
4,0000 °
Weight
0,96 kg
With tripod
No
Supplied in
Case
Laser class
Class 2
Accuracy
0,3 mm/m
Colour (laser beams)
Green
Max. range with receiver
100 m
Ip rating
IP65
Working range, value [m]
30
Electrical power supply
12 V Li-Ion battery|4 x 1.5 V LR6 (AA)
Compatible laser receivers
LR 7
Storage temperature, from [°c]
-20

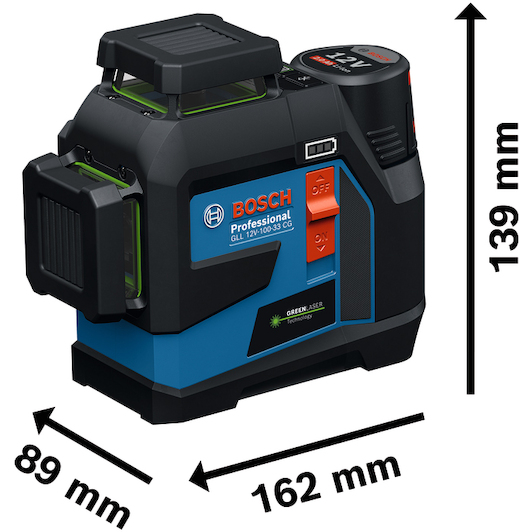

Length x width x height
162 x 89 x 139 mm
Battery cell size 1
AA
Self-leveling time, typ. [s]
4
Operating temperature, from [°c]
-10
Operating range with receiver, value [m]
100
Operating temperature, up to [°c]
40
Storage temperature, up to [°c]
70
Description code type battery technology 1
AlMn=Alkali manganese
Levelling accuracy
± 0.3 mm/m
Battery weight 1 [g]
23,00 g
Battery type code 1
LR6
Laser diode
500 - 540 nm, < 10 mW
Operating time, max.
6 h (Li-Ion) and 4 h (4 x AA) in 3-line mode
Storage temperature
-20 - 70°C
Projection
3 x 360° line
Levelling range
± 4°
Battery voltage
12.0 V
Operating temperature
-10 - 40°C
Number of batteries
4
Colour laser line
green

Accessories

Frequently asked questions about this product

Answered by specialists
What is the maximum range of the Bosch GLL 12V-100-33 CG cross-line laser?
The Bosch GLL 12V-100-33 CG has a maximum range of 30 meters without a receiver. With an optional laser receiver, such as the LR 7 Professional, the range can be extended up to 100 meters.
What laser lines does the Bosch GLL 12V-100-33 CG project?
The Bosch GLL 12V-100-33 CG projects three 360° green laser lines: one horizontal and two vertical lines.
Is the Bosch GLL 12V-100-33 CG resistant to dust and water?
Yes, the Bosch GLL 12V-100-33 CG has an IP65 protection rating, meaning it is dust and splash-water protected.
Can I use the Bosch GLL 12V-100-33 CG with both a battery and AA batteries?
Yes, the Bosch GLL 12V-100-33 CG features a dual power source. You can use it with a 12V Li-Ion battery or with four AA alkaline batteries using the supplied adapter.
What accessories are included with the Bosch GLL 12V-100-33 CG?
The Bosch GLL 12V-100-33 CG comes with an AA1 alkaline battery adapter, four 1.5 V LR6 (AA) batteries, a pouch, a laser target plate, and a universal mount LB 10 Professional.
