BOSCH

BOSCH GLL 20-22 G cordless cross line laser green in case (1x 3.0Ah battery + USB-C charging cable) - 0601065602

Recommended Retail Price €339.92
258.59 tax incl.
€213.71 excl. VAT (incl. all environmental contributions)
On order: delivered from 11/07/2026
each

Is this laser right for you?

Answer a few questions and see if this laser is a perfect match for you.

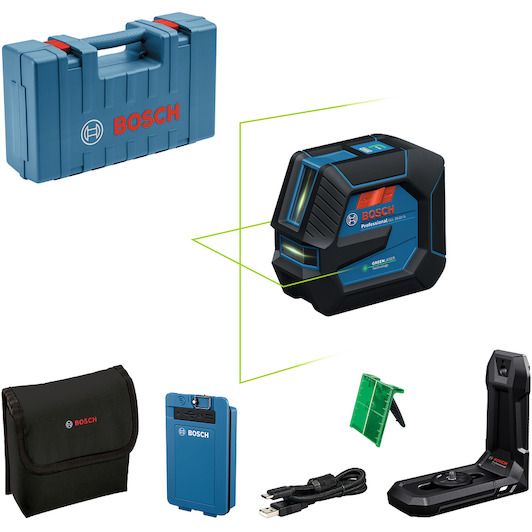

Scope of delivery

  • Bag
  • Laser target plate
  • Universal holder LB 10 Professional
  • BA 3.7V 3.0Ah XL and USB-C cable (order number: 1 600 A03 1FZ)
  • Storage case

Product description

Easier alignment with our robust line laser

  • IP65 protection class and rubber protected housing for dust and water resistance
  • The U-shaped laser window offers a wider range angle of the horizontal line.

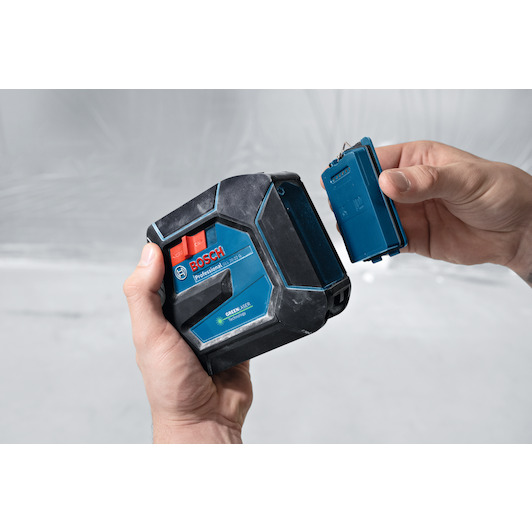

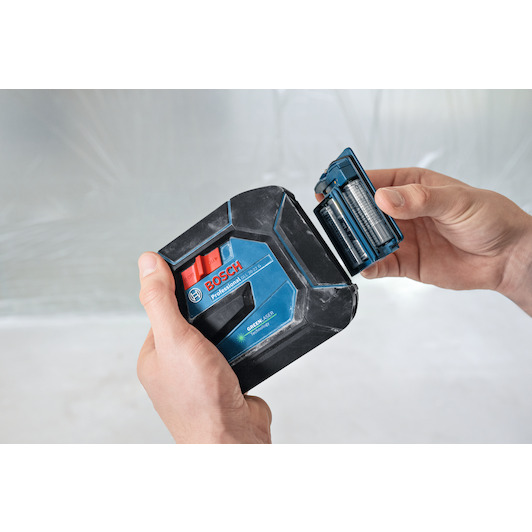

  • The dual power source (dual power) allows seamless switching between the Li-Ion battery BA 3.7V 3.0Ah XL and AA alkaline batteries to avoid downtime.

Functions and main features

  • Working range of up to 20 m

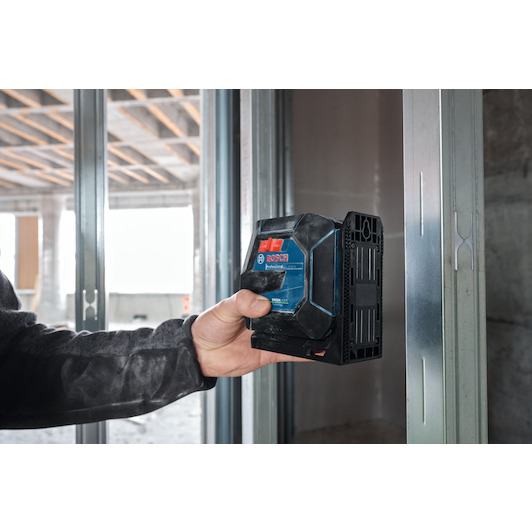

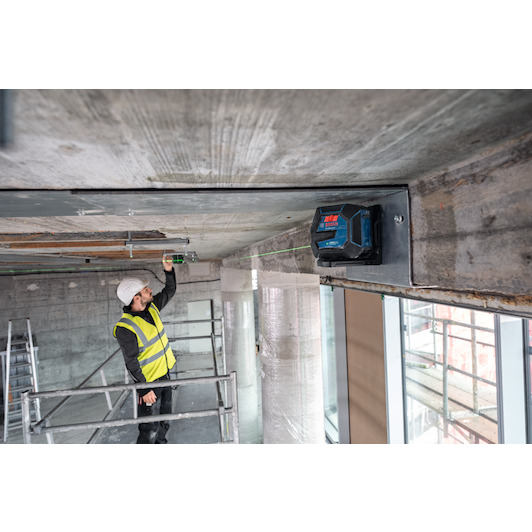

  • Holder LB 10 with high-strength magnets

Product highlights

The GLL 20-22 G Professional is a robust and intuitive line laser made for a wide variety of applications. Its IP65 protection class and rubber-protected housing make it resistant to dust and water, for working with confidence even in the harshest conditions. The U-shaped laser window offers a wider range angle of the horizontal line.

Equipment and application

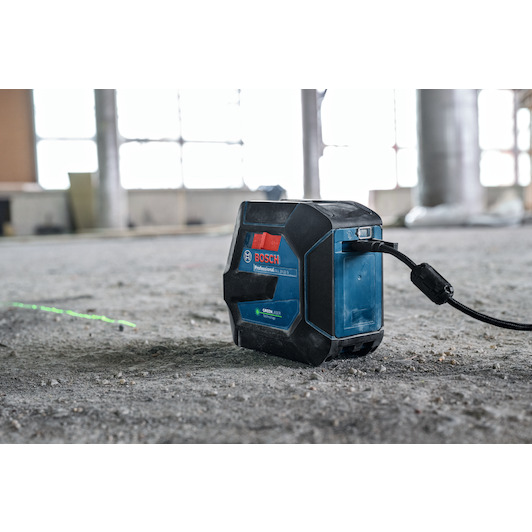

The BA 3.7V 3.0Ah XL can be recharged during use, ensuring seamless work without interruptions.

Additional information

The device features a large, easy-to-read battery indicator. The bright green laser lines are up to four times more visible than red lines, making levelling easier, regardless of location.

Key features according to our expert
  • Laser type: Cross line laser
  • Type of system case: Not applicable
  • Max. range: 20 m
  • With tripod: No
  • Tripod thread: 1/4"
  • Self-levelling range: 4,0000 °
  • Weight: 0,56 kg
  • Projection (laser beams): 1 horizontal, 1 vertical
  • Supplied in: Case
  • Laser class: Class 2
  • Accuracy: 0,3 mm/m
  • Colour (laser beams): Green
  • Protection class IP: IP65
Specifications / All features
Laser type
Cross line laser
Type of system case
Not applicable
Max. range
20 m
With tripod
No
Tripod thread
1/4"
Self-levelling range
4,0000 °
Weight
0,56 kg
Projection (laser beams)
1 horizontal, 1 vertical
Supplied in
Case
Laser class
Class 2
Accuracy
0,3 mm/m
Colour (laser beams)
Green
Protection class ip
IP65
Operating time, max.
8 h (Li-Ion) and 6 h (4 x AA) in cross-line mode min.
Self-levelling time, typ.
4 s
Storage temperature, from
-20 °C
Colour laser line
green
Projection
2 lines
Electrical power supply
3.7 V Li-Ion battery (3000 mAh)|4 x 1.5-V-LR6 (AA)
Levelling accuracy
± 0.3 mm/m
Working range, approx.
up to enet 20 m
Operating temperature, from
-10 °C
Operating temperature, up to
50 °C

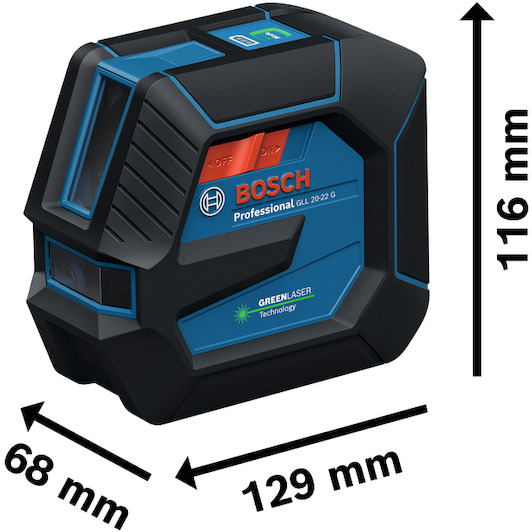

Length x width x height
129 x 68 x 116 mm
Dust and splash water protection
IP 65
Storage temperature, up to
70 °C
Battery voltage
3,7 V
Levelling range
± 4 °
Working range, value
20 m
