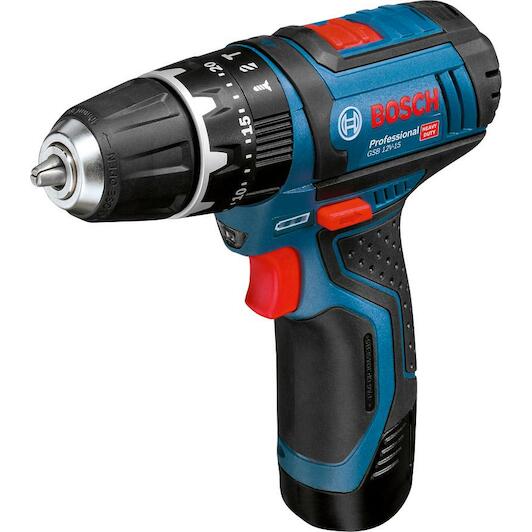

BOSCH GSB 12V-15 cordless hammer drill in case (2x 2.0Ah battery + charger) - 06019B690H

BOSCH
Supplier number: BOSCH 06019B690H | EAN 3165140995955
Recommended Retail Price €223.21
168.51 tax incl.
€139.26 excl. VAT (incl. all environmental contributions)
On order: delivered from 21/10/2026

✆ Talk to a specialist


Product information Accessories
€168.51
tax incl.

Product information

Key features according to our expert

  • Battery voltage: 12 V
  • Max. drilling diameter (steel): 10 mm
  • Number of batteries included: 2
  • Chuck material: Plastic
  • UN number: UN3481
  • Type of system case: Not applicable
  • Supplied in: Bag
  • Weight: 0,8 kg
  • Max. drilling diameter (wood): 19 mm
  • Max. clamping capacity: 10 mm
  • Capacity (battery): 2 Ah
  • Max. drilling diameter (masonry): 10 mm
  • Min. clamping capacity: 1 mm
  • Max. tightening torque: 30 Nm
  • Number of settings (torque): 20 (+drill mode)
  • Product Range: Bosch 12V

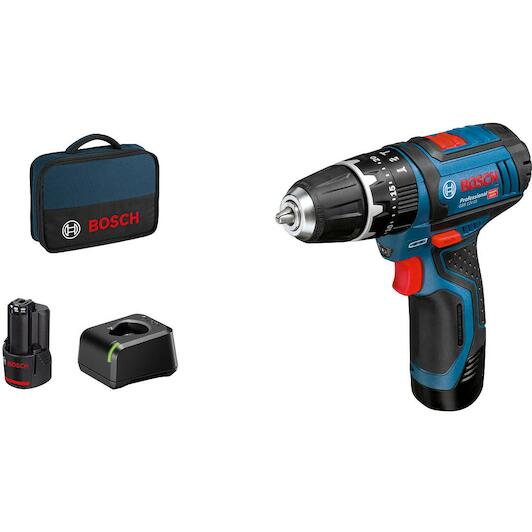

Scope of delivery

  • 2x GBA 12V 2.0 Ah, charger GAL 12V-40

Product description

  • Cordless drill driver GSB 12V-15 (2x GBA 12V 2.0 Ah, charger GAL 12V-40)
  • With 189 mm shortest design in its class for optimum handling especially in overhead drilling and screwdriving applications and in confined spaces
  • Newly developed 2-speed planetary gearbox for powerful screwdriving and drilling applications in wood and metal and for hammering in masonry
  • Fully-fledged 10-mm Auto-Lock chuck

Advantages

  • The shortest 12Volt powerhouse with impact drilling function

All Features

Battery voltage
12 V
Max. drilling diameter (steel)
10 mm
Number of batteries included
2
Chuck material
Plastic
Un number
UN3481
Type of system case
Not applicable
Supplied in
Bag
Weight
0,8 kg
Max. drilling diameter (wood)
19 mm
Max. clamping capacity
10 mm
Capacity (battery)
2 Ah
Max. drilling diameter (masonry)
10 mm
Min. clamping capacity
1 mm
Max. tightening torque
30 Nm
Number of settings (torque)
20 (+drill mode)
Vibration emission value (hammer drills in masonry)
1.5 m/s²
Drill diameter masonry, max.
10 mm
Screw diameter, max
7 mm
No-load speed (1st gear/2nd gear)
0 - 380 / 0 - 1300 min-1
Torque positions
20+1
Drill diameter wood, max.
19 mm
Number of strokes, max.
19500 min-1
Drill chuck clamping range, min./max.
1 / 10 mm
Uncertainty k (hammer drilling in masonry)
10.5 m/s²
Torque (soft/hard/max.)
15 / 30 / - Nm
Uncertainty k (drilling in metal)
2.5 m/s²
Sound power level
82 dB(A)
Vibration emission value ah (drilling in metal)
1.5 m/s²
Drill diameter steel, max.
10 mm
Sound pressure level
93 dB(A)
Product range
Bosch 12V
