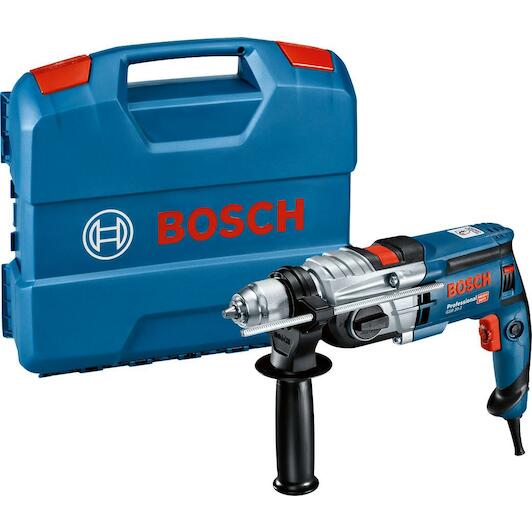

Scope of delivery
- Depth stop 210 mm, handle and 13 mm keyless chuck
Product description

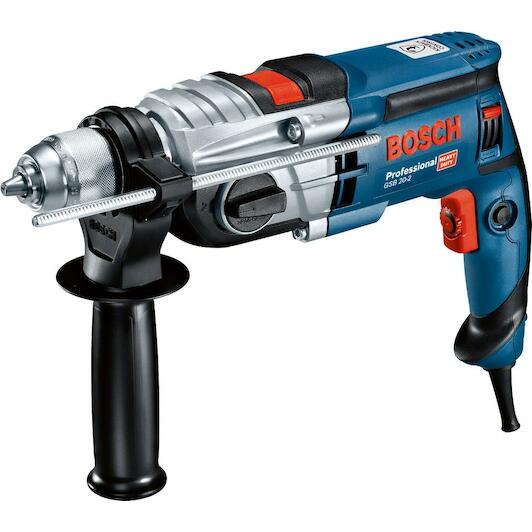

- Impact drill GSB 20-2 (Depth stop 210 mm, handle and quick-clamping drill chuck 13 mm)
- Increased user protection with KickBack Control (KBC)
- Powerful 2-speed impact drill (850 W) for fast results
- Robust metal gear housing for long service life
Advantages
- The impact drill GSB 20-2 from Bosch Professional - The most versatile 2-speed impact drill with KickBack Control
Key features according to our expert
-
Input power: 850 W
-
Drill chuck type: Cylindrical quick-release - cylindrical
-
Min. clamping capacity: 1,5 mm
-
Chuck material: Metal
-
Weight: 2,6 kg
-
Number of speed settings: 2
-
Max. no-load speed: 3000 /min.
-
Type of system case: L-CASE
-
Supplied in: System case
-
Max. drilling diameter (steel): 13 mm
-
Max. drilling diameter (wood): 40 mm
-
Max. drilling diameter (masonry): 20 mm
-
Max. clamping capacity: 13 mm
Specifications / All features
- Input power
- 850 W
- Drill chuck type
- Cylindrical quick-release - cylindrical
- Min. clamping capacity
- 1,5 mm
- Chuck material
- Metal
- Weight
- 2,6 kg
- Number of speed settings
- 2
- Max. no-load speed
- 3000 /min.
- Type of system case
- L-CASE
- Supplied in
- System case
- Max. drilling diameter (steel)
- 13 mm
- Max. drilling diameter (wood)
- 40 mm
- Max. drilling diameter (masonry)
- 20 mm
- Max. clamping capacity
- 13 mm
- Drill chuck clamping range, min./max.
- 1.5 - 13 mm
- Drill diameter stone
- 20 / 15 mm
- Release capacity
- 430 W
- No load speed, 1st position
- 1000 min-1
- Uncertainty k (impact drilling in concrete)
- 2 m/s²
- Drill diameter wood
- 40 / 25 mm
- Vibration emission value ah (screws)
- 2.5 m/s²
- No load speed, 2nd position
- 3000 min-1
- Masonry drill diameter
- 20 / 15 mm
- Nominal power consumption
- 850 W
- Drill chuck, keyless chuck version
- 13 mm
- Voltage, electric
- 230 V
- Output shaft connection thread
- 1/2"-20 UNF
- Rated torque
- 5.2 / 2.0 Nm
- Uncertainty k (drilling in metal)
- 1.5 m/s²
- Uncertainty k (screws)
- 1.5 m/s²
- Drill diameter steel
- 13 / 8 mm
- Torque, max.
- 36 Nm
- Vibration emission value ah (drilling in metal)
- 3 m/s²
- Rated speed
- 800 / 2060 min-1
- Tool holder
- 1/2"-20 UNF
- Vibration emission value ah (impact drilling in concrete)
- 15 m/s²
