What is the maximum cutting depth of the GST 90 BE in wood?

In wood, the maximum cutting depth is 90 mm. It cuts up to 20 mm in aluminium and 10 mm in non-alloyed steel.

How do you change the saw blade on this jigsaw?

Thanks to the tool-free Bosch SDS system, you can change jigsaw blades quickly without requiring additional tools.

Is the stroke rate adjustable?

Yes, the stroke rate can be adjusted from 500 to 3100 spm to match the specific material you are cutting.

Does this jigsaw feature pendulum action?

Yes, it is equipped with a 4-stage pendulum action to adjust between fast cutting progress and clean cut edges.

What is included with this tool in the carrying case?

The package includes the GST 90 BE jigsaw, a saw blade, a dust extraction set, an anti-splinter guard, a hex key SW 5, and a carrying case.

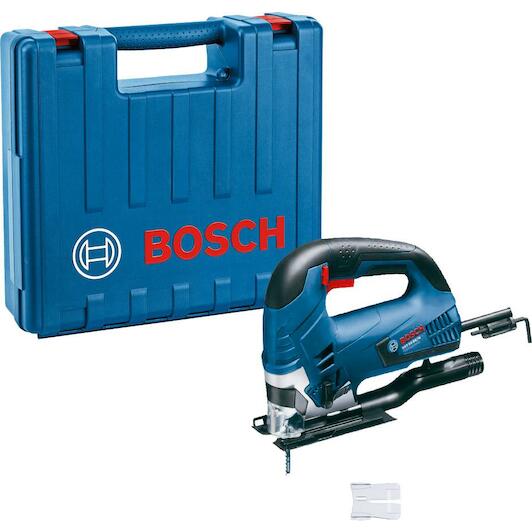

BOSCH GST 90 BE jigsaw 650 W in transport case - 060158F000

Name: BOSCH GST 90 BE jigsaw 650 W in transport case - 060158F000
Brand: BOSCH
SKU: 02094833
Price: 170.88 EUR
Availability: PreOrder

Supplier number: BOSCH 060158F000 | EAN 3165140602839

Recommended Retail Price €224.30

170.88 tax incl.

€141.22 excl. VAT (incl. all environmental contributions)

On order: delivered from 08/10/2026

Ordered before 20:00 - delivered as of 08/10/2026
Free shipping
Delivery by DHL
Up to 5 years warranty on Bosch Professional and up to 3 years on Bosch DIY after successful registration!
Delivered from Belgium

✆ Talk to a specialist

Perfect combination

LUMX LM 80025 cable reel standard 25 m 220-250V 16 A 2P+A BE/FR black

59.14

€48.88 excl. VAT

On stock, immediately available.

LUMX LM 85025 cable reel professional 25m 220-250V 16 A 2P+A BE/FR black

104.49

€86.36 excl. VAT

On stock, immediately available.

LUMX LM 87240 XT pro cable reel professional 40 m 230V 16 A 2P+A BE/FR...

157.16

€129.89 excl. VAT

On stock, immediately available.

LUMX LM 85140 cable reel professional 40 m 220-250V 16 A 2P+A BE/FR black

146.43

€121.02 excl. VAT

On stock, immediately available.

Accurate cutting with the Bosch GST 90 BE

Practical benefits

Reliable and powerful motor: The capable 650 W motor helps you cut smoothly up to a depth of 90 mm in wood.
Fast toolless blade change: The integrated SDS mechanism lets you switch saw blades in seconds without needing extra tools.
Variable speed trigger control: With the ergonomic bow handle and variable speed switch, you match the stroke rate precisely to your material.

In a nutshell

The right choise for

With the Bosch gst 90 BE, you can execute smooth curved cuts, circles, and straight lines in wood up to a depth of 90 mm. Its robust 650 w motor and 4-stage pendulum action provide fast cutting progress tailored to the demands of your job. The bow handle with a variable speed trigger gives you exact control over stroke rates between 500 and 3100 strokes per minute to match different materials. Blade changes are quick and completely tool-free thanks to the Bosch sds system. Complete with an anti-splinter guard, dust extraction set, and carrying case, it equips you for clean, accurate work anywhere.

Product information Accessories FAQ

€170.88

tax incl.

Key features according to our expert

Power: 650 W
Vibration value (wood): 8,5 m/s²
Max. cutting depth (Wood): 90 mm
Type of system case: Not applicable
Supplied in: Case
Weight: 2,6 kg
Shape (handle): D
Max. stroke rate: 3100 /min.
Min. stroke rate: 500 /min.
Stroke length: 26 mm

Scope of delivery

Saw blade, extraction set, anti-splinter plate, socket spanner SW 5

Product description

Jigsaw machine GST 90 BE (saw blade, extraction set, anti-splinter plate, socket spanner SW 5)
The reliable partner for daily use
High comfort with Bosch SDS, the easy saw blade change without tools
Powerful 650-watt motor for fast results

Advantages

The jigsaw machine GST 90 BE from Bosch Professional - Excellent comfort in the entry-level class.

All Features

Power: 650 W
Vibration value (wood): 8,5 m/s²
Max. cutting depth (wood): 90 mm
Type of system case: Not applicable
Supplied in: Case
Weight: 2,6 kg
Shape (handle): D
Max. stroke rate: 3100 /min.
Min. stroke rate: 500 /min.
Stroke length: 26 mm
Cutting depth in unalloyed steel: 10 mm
Number of no-load cutting movements: 500 - 3100 min-1
Nominal power consumption: 650 W
Vibration emission value ah (sawing wood): 8.5 m/s²
Cutting depth in aluminium: 20 mm
Uncertainty k: 5 dB
Vibration emission value ah (sawing sheet metal): 6.5 m/s²
Sound power level: 98 dB(A)
Sound pressure level: 87 dB(A)
Uncertainty k (sawing in wood): 1.5 m/s²
Cutting depth in wood: 90 mm
Cable length: 2,5 m
Uncertainty k (cutting of metal sheet): 1.5 m/s²

Brand BOSCH
02094833
EAN 3165140602839
Supplier number BOSCH 060158F000
Warranty Up to 5 years warranty on Bosch Professional and up to 3 years on Bosch DIY after successful registration!

Accessories

BOSCH 2608631010 jigsaw blade T 101 A (5 pack)

11.40

€9.42 excl. VAT

On stock, immediately available.

BOSCH 2608631030 jigsaw blade T 227 D Special for Aluminium (5 pack)

13.20

€10.91 excl. VAT

On stock, immediately available.

BOSCH 2608634897 jigsaw blade T 101 AIF Clean for Hard Wood (5 pcs)

11.95

€9.88 excl. VAT

On stock, immediately available.

BOSCH 2608636229 jigsaw blade T 301 CDF Clean for Hard Wood (5 pack)

12.80

€10.58 excl. VAT

On stock, immediately available.

View more accessories (22)

Frequently asked questions about this product

Answered by specialists

What is the maximum cutting depth of the GST 90 BE in wood?: In wood, the maximum cutting depth is 90 mm. It cuts up to 20 mm in aluminium and 10 mm in non-alloyed steel.
How do you change the saw blade on this jigsaw?: Thanks to the tool-free Bosch SDS system, you can change jigsaw blades quickly without requiring additional tools.
Is the stroke rate adjustable?: Yes, the stroke rate can be adjusted from 500 to 3100 spm to match the specific material you are cutting.
Does this jigsaw feature pendulum action?: Yes, it is equipped with a 4-stage pendulum action to adjust between fast cutting progress and clean cut edges.
What is included with this tool in the carrying case?: The package includes the GST 90 BE jigsaw, a saw blade, a dust extraction set, an anti-splinter guard, a hex key SW 5, and a carrying case.
