Product description: PermaSleeve Wire Marking Sleeves Features: Brady's PermaSleeve HX heat shrinkable shrinkable wire marking sleeves are high-temperature rated, highly flame retardant, and very flexible These heat shrinkable wire marking sleeves meet these specifications for the aerospace industry: SAE-AMS-DTL-23053/5 Class 1, SAE-AS-81531, MIL-STD-202, RoHS compliant
Key features according to our expert

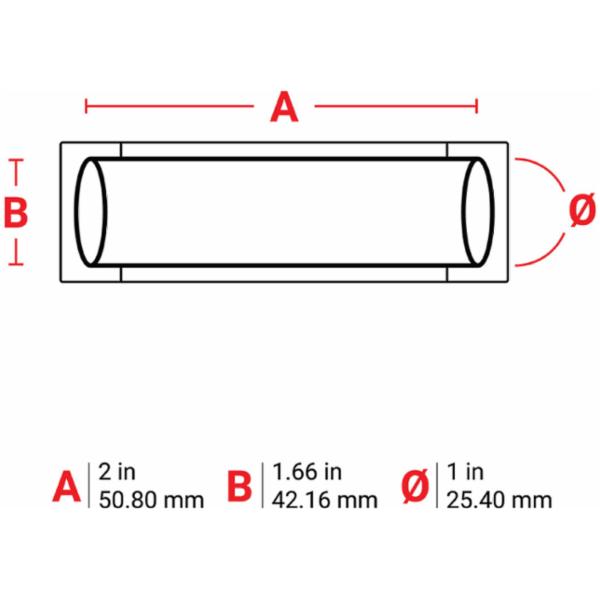

Width: 50,8 mm
Core inner diameter: 76,2 mm
Gloss level: Matt

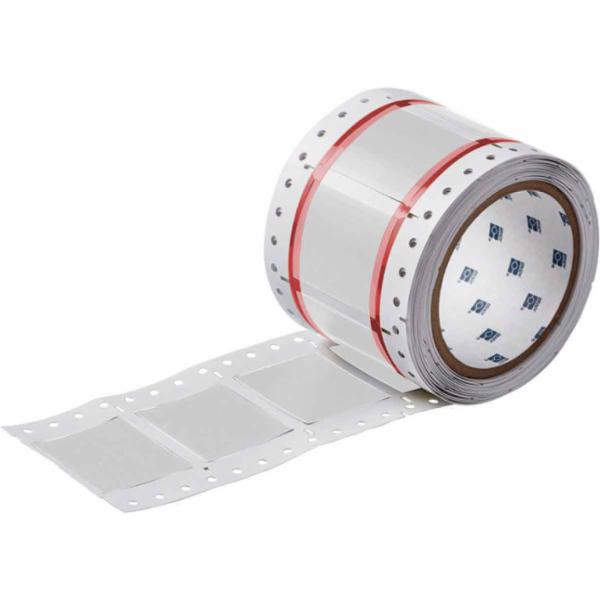

Packaging: Roll
Vertical repeat: 50,8 mm
Ribbon series: R6600
Markers per roll: 100
Adhesive (Y/N): No
Number per row: 1
Number per roll: 100
Height: 42,16 mm
Printable sides: Single-sided printable
Printer compatibility: BBP12; BBP11; BBP72; PR200Plus; PR300Plus; PR600Plus
Color: White
Shrinkage ratio: 2:1
Max. wire/cable diameter: 24,13 mm
Min. wire/cable diameter: 11,43 mm
Max. temperature: 120 °C
Min. temperature: -40 °C
Material: Heat-shrink polyolefin

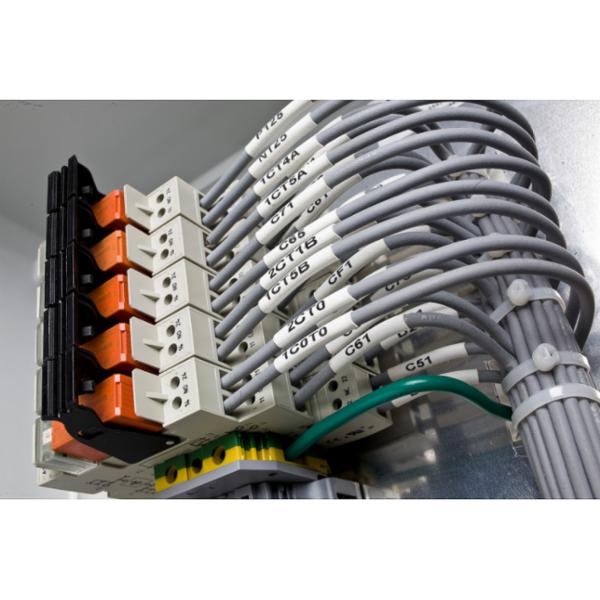

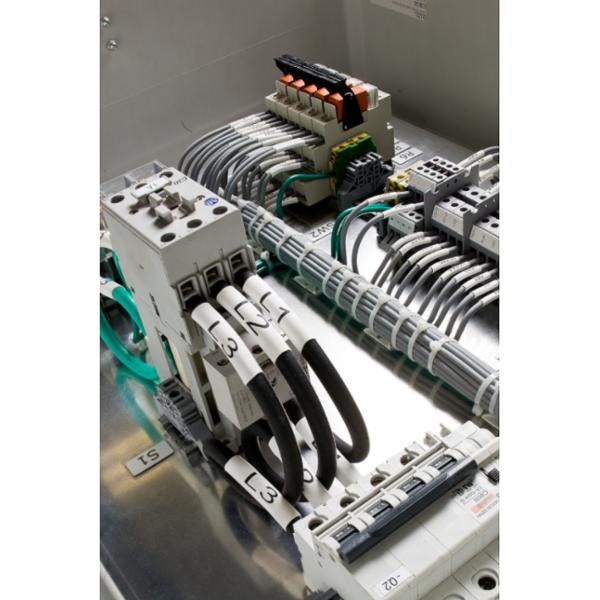

Application: Panel identification; Wire and cable marking
Colour (manufacturer): White
Specifications / All features
Brand:
BRADY
02158703
EAN:
0662820825180
Supplier number:
BRADY 117773
Width
50,8 mm
Core inner diameter
76,2 mm
Gloss level
Matt
Packaging
Roll
Vertical repeat
50,8 mm
Ribbon series
R6600
Markers per roll
100
Adhesive (y/n)
No
Number per row
1
Number per roll
100
Height
42,16 mm
Printable sides
Single-sided printable
Printer compatibility
BBP12; BBP11; BBP72; PR200Plus; PR300Plus; PR600Plus
Color
White
Shrinkage ratio
2:1
Max. wire/cable diameter
24,13 mm
Min. wire/cable diameter
11,43 mm
Max. temperature
120 °C
Min. temperature
-40 °C
Material
Heat-shrink polyolefin
Application
Panel identification; Wire and cable marking
Colour (manufacturer)
White
