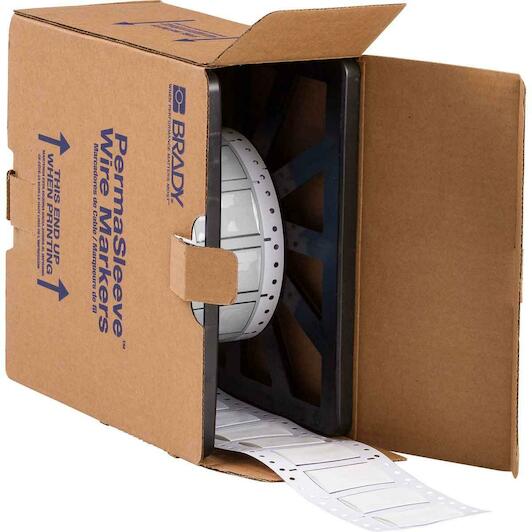

Product description: PermaSleeve Wire Marking Sleeves Features: Brady's PermaSleeve HX heat shrinkable shrinkable wire marking sleeves are high-temperature rated, highly flame retardant, and very flexible These heat shrinkable wire marking sleeves meet these specifications for the aerospace industry: SAE-AMS-DTL-23053/5 Class 1, SAE-AS-81531, MIL-STD-202, RoHS compliant
Key features according to our expert

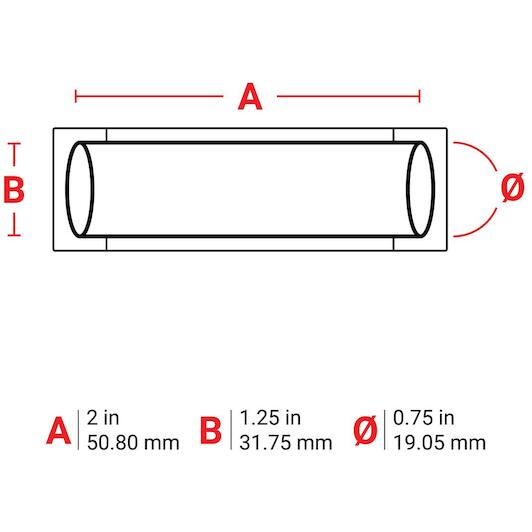

Width: 50,8 mm
Core inner diameter: 76,2 mm
Height: 31,4 mm
Finish: Matt
Packaging: Roll
Vertical repeat: 41,28 mm
Ribbon series: R6600
Adhesive (Y/N): No
Quantity per row: 1
Quantity per roll: 250
Printable sides: Single-sided printable
Markers per roll: 250
Printer compatibility: BBP12; BBP11; BBP72; PR200Plus; PR300Plus; PR600Plus
Shrinkage ratio: 2:1
Max. wire/cable diameter: 17,78 mm
Min. wire/cable diameter: 9,52 mm
Max. temperature: 120 °C
Min. temperature: -40 °C
Material: Heat-shrink polyolefin

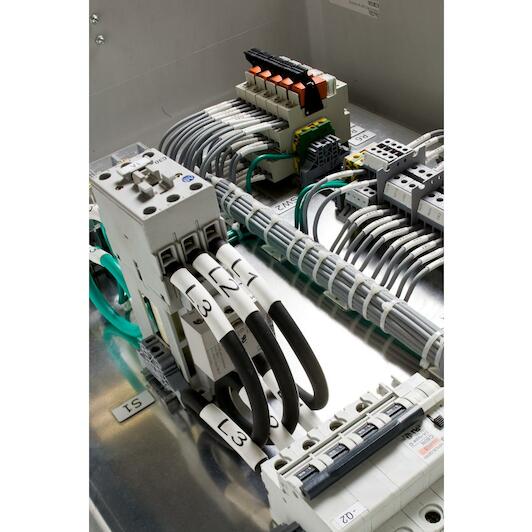

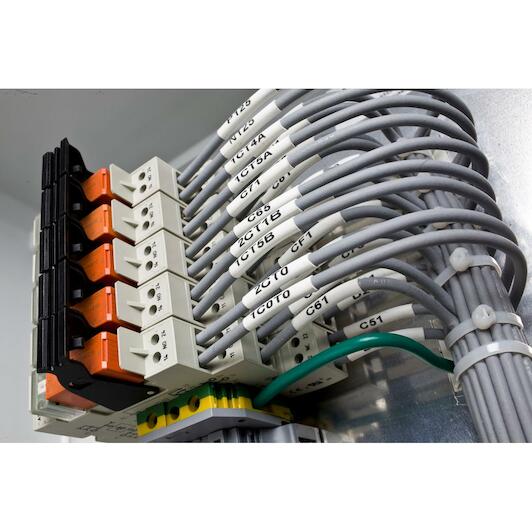

Application: Panel identification; Wire and cable marking
Color: White
Colour (manufacturer): White
Specifications / All features
Brand:
BRADY
02158938
EAN:
0662820818212
Supplier number:
BRADY 117093
Width
50,8 mm
Core inner diameter
76,2 mm
Height
31,4 mm
Finish
Matt
Packaging
Roll
Vertical repeat
41,28 mm
Ribbon series
R6600
Adhesive (y/n)
No
Quantity per row
1
Quantity per roll
250
Printable sides
Single-sided printable
Markers per roll
250
Printer compatibility
BBP12; BBP11; BBP72; PR200Plus; PR300Plus; PR600Plus
Shrinkage ratio
2:1
Max. wire/cable diameter
17,78 mm
Min. wire/cable diameter
9,52 mm
Max. temperature
120 °C
Min. temperature
-40 °C
Material
Heat-shrink polyolefin
Application
Panel identification; Wire and cable marking
Color
White
Colour (manufacturer)
White
