Product description

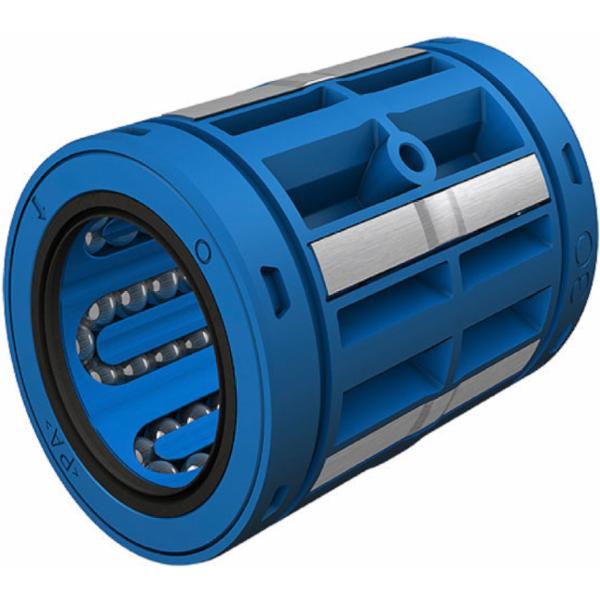

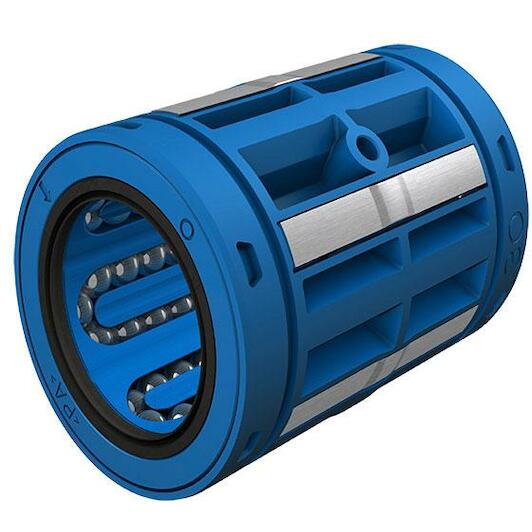

- Linear bearing unit with 2 seals, self-aligning, closed design
Supplier number:
EWELLIX 305584251-0000
|
EAN
4064331034949
Recommended Retail Price
€181.69
172.95
tax incl.
€142.93 excl. VAT (incl. all environmental contributions)
Smooth linear motion by Ewellix
Practical benefits- Automatic compensation for misalignment: The self-aligning design accommodates shaft deflections smoothly, ensuring you achieve low-friction travel without binding.
- Dual seals keep contaminants out: Two contact seals retain internal lubrication while protecting your linear system from dust and debris ingress.
- Adjustable clearance for precision: The adjustable closed construction allows you to optimize bearing clearance on 30 mm shafts for exact guidance.
In a nutshell
The right choise forAchieve smooth, reliable linear motion with the Ewellix lbcd 30 D-2LS ball bushing. This closed, self-aligning bearing unit automatically compensates for shaft deflections and minor misalignments on 30 mm shafts, preventing binding and reducing friction during continuous operation. Its adjustable design allows you to fine-tune bearing clearance to ensure precise, zero-play travel. Equipped with two integrated contact seals, the unit effectively retains lubrication while keeping dust and contaminants out. With an outer diameter of 47 mm and an overall length of 68 mm, this linear ball bushing provides dependable performance for your automation and precision guiding systems.
Product information
Key features according to our expert
- Inner diameter: 30 mm
- Outer diameter: 47 mm
- Width: 68 mm
All Features
- Inner diameter
- 30 mm
- Outer diameter
- 47 mm
- Width
- 68 mm
- Brand EWELLIX
- EAN 4064331034949
- Supplier number EWELLIX 305584251-0000
Frequently asked questions about this product
Answered by specialists
- What shaft diameter is this linear ball bearing designed for?
- This linear ball bushing is designed for precision shafts with a 30 mm diameter.
- What are the outer dimensions of this unit?
- The bearing unit has an outer diameter of 47 mm and an overall length of 68 mm.
- What is the benefit of the LBCD self-aligning design?
- It automatically compensates for minor angular misalignments and shaft deflections.
- What sealing does this linear bearing feature?
- It features two integrated 2LS contact seals to protect against dust and contaminants.
- Is this an open or closed linear ball bushing?
- This is a closed version designed for non-supported shafts or standard housings.
