Heavy-duty clamping versatility with Facom
- Flexible 360° rotating base: You effortlessly rotate the vice into the ideal position to work comfortably and accurately on any project.
- Generous 200 mm clamping capacity: Securely clamp wide and bulky workpieces with ease thanks to the generous jaw opening.
- Robust industrial-grade guidance: The rigid construction prevents guide deflection, keeping the clamping action smooth even under demanding heavy loads.

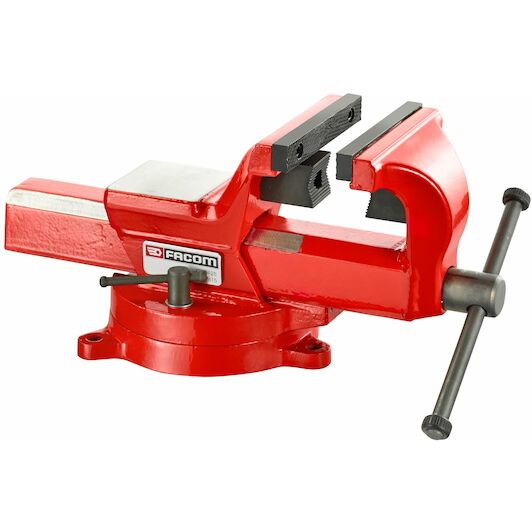

The Facom 1224.150 bench vice delivers the clamping strength and versatility required for demanding metalworking and maintenance tasks. Featuring a 360° swivel base, it lets you position workpieces at the precise angle needed without unclamping. With a 154 mm jaw width and a generous 200 mm clamping capacity, it accommodates large and irregular components with ease. Removable V-jaws firmly secure round pipes and rods, while replaceable parallel jaws ensure long service life in tough workshop conditions. Weighing 18.88 kg and engineered with a rigid guide that resists deflection under heavy mechanical loads, this vice provides the rock-solid foundation needed for cutting, grinding, welding, and assembly operations.
Product description
- Vice for industry and maintenance, 360° rotatable
- Made of ductile iron, breaking load 700 N/mm² or more.
- Large supporting surface of prismatic guide/ movable jaws: As the guide does not bend with it, the vice continues to work even under heavy loads.
- Parallel interchangeable jaws. High wear resistance, hardness 48/53 HRc.
- V-shaped jaws for securing pipes, partitions. Hardness 40/46 HRc.
- Adjustment system by means of 2 complex screws with backlash adjustment.
- Brass-plated turning rod.

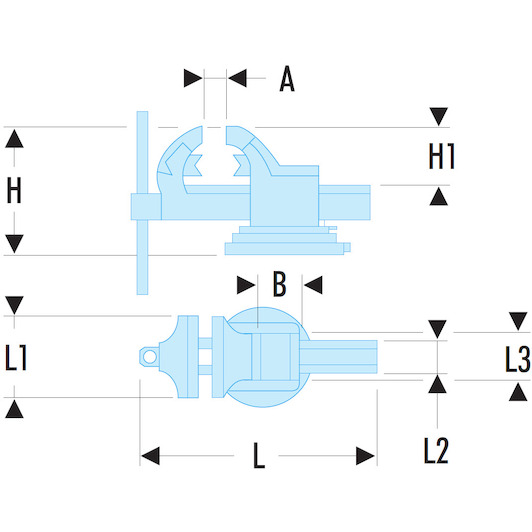

Technical features
- A max: 200 mm
- B: 95 mm
- H: 205 mm
- H1: 94 mm
- L: 460 mm
- L1: 154 mm
- L2: 60 mm
- L3: 91 mm
- Weight: 18.88 kg
